CD-Audio Input
PCI Slot x 3
JP11 Case Open Sense
2Mbit Flash ROM
Full-time
Virus Protection
WakeOn RTC
Support 4 USB Port
WOL
Wake On LAN
FDD Connector
JP9 IrDA Connector
JP12 Power LED Connector
ATX Power LED
JP4 Reset Connector
PS/2 Mouse
Printer
USB
Keyboard
COM1
JP3 Power Button Connector
PC99 Back Panel
Game Port
MIC
Line-In
Speaker
PC99 Back Panel
1500uF Low ESR Capacitor
Resettable Fuse
JP6/JP7 Thermal Sense
CPU Fan Connector
System Voltage & Fan Monitoring
Full-range Auto-Detect CPU Core Voltage
Jumper-less Design
Over-current Protection
Thermal Protection
Apollo KT133 Chipset
200/266 MHz EV6 Bus
PC133 DIMM
Suspend to RAM
JP14 Clear CMOS
Battery-less & Long-life Design
ATA/66 IDE Bus
Suspend to HDD
CN6 IDE LED Connector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MK33 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AOpen MK33

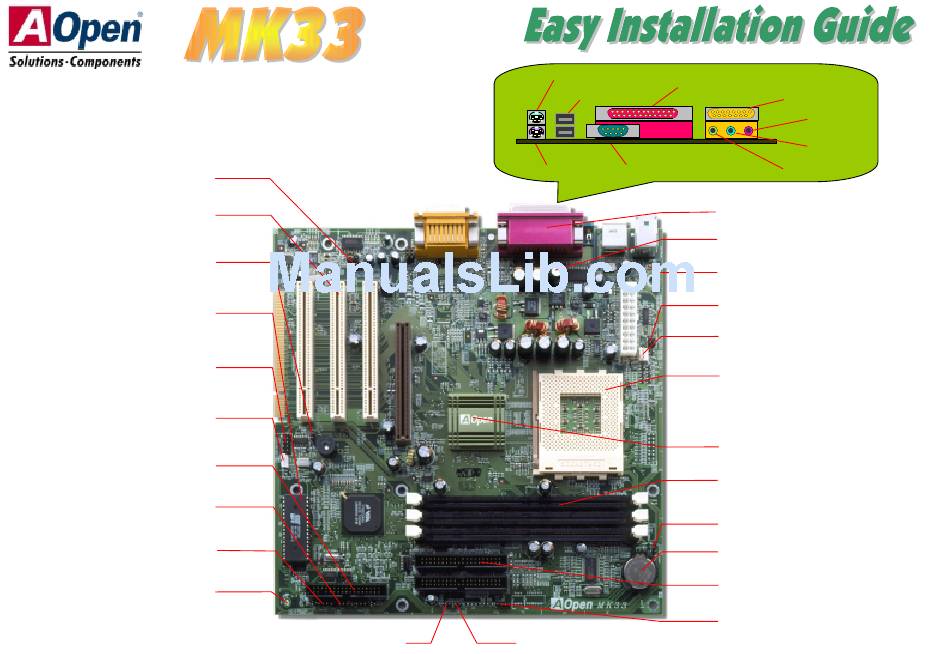

  • Page 1 PS/2 Mouse PC99 Back Panel Printer Game Port Line-In Keyboard COM1 Speaker CD-Audio Input PCI Slot x 3 PC99 Back Panel 1500uF Low ESR Capacitor JP11 Case Open Sense Resettable Fuse 2Mbit Flash ROM Full-time JP6/JP7 Thermal Sense Virus Protection WakeOn RTC CPU Fan Connector System Voltage &...
  • Page 2: Jp14 Clear Cmos

    4. Return JP14 to its normal setting by shorting pins 1-2. 5. Connect ATX power cable back to connector CN5. Tip: When should I Clear CMOS? 1. Boot fail because of overclocking… 2. Forget password… 3. Troubleshooting… PART NO: 49.89501.001 DOC. NO: MK33-EG-E0006A...
  • Page 3: Support 4 Usb Ports

    Installing CPU and Fan Support 4 USB Ports Plug CPU to AMD Socket 462 connector. Be careful This motherboard supports four USB ports. Two of them are on back panel connector, of CPU orientation. Plug in the fan cable to the 3-pin the other two are on the left-bottom area of this motherboard.
  • Page 4: Connecting Front Panel Cable

    Configuring System Memory Connecting Front Panel Cable Attach the power LED, speaker, and reset This motherboard has three 168pin DIMM sockets that allow switch connectors to the corresponding pins. you to install system memory up to 1.5GB. SDRAM and If you enable “Suspend Mode” item in BIOS VCM SDRAM are supported.
  • Page 5: Installing Windows

    Power-on and Load BIOS Setup Autorun Menu from Bonus CD Disc After you finish the setting of jumpers and connect correct cables. Power You can use the autorun menu of Bonus CD disc. Choose the utility and driver and on and enter the BIOS Setup, press <Del> during POST (Power-On select model name.
  • Page 6: Installing Via 4 In 1 Driver

    BIOS Upgrade AOpen Easy Flash is more user friendly than traditional flash method. The BIOS binary file and flash routine are combined together and you simply run a single file to complete the flash process. 1. Get new BIOS upgrade program from AOpen's web site. For example, MK33P109.EXE.
  • Page 7: Part Number And Serial Number

    IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. MK33 is model name of motherboard, R1.20 is BIOS version. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT.
