AOpen AX4SP-G Easy Installation Manual

AOpen AX4SP-G Easy Installation Manual

Aopen motherboard
Hide thumbs Also See for AX4SP-G:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Online Manual

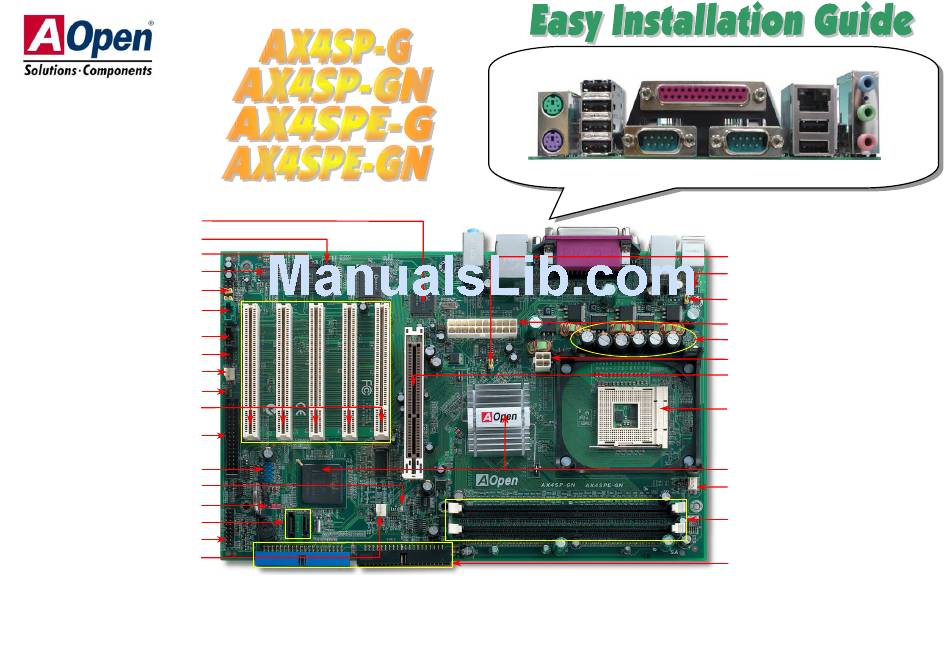

Realtek 8101L LAN Chip
(AX4SP-GN and AX4SPE-GN)
GAME Port Connector
2Mb Flash ROM BIOS
Onboard AC'97 CODEC
Front Audio Connector
AUX-IN Connector
CD-IN Connector
IrDA Connector
SYSFAN3 Connector
Case Open Connector
32-bit PCI Expansion Slot x5
FDD Connector
USB 2.0 Connector
STBY LED
JP14 CMOS Clear Jumper
Serial ATA Ports x2
Front Panel Connector
SYSFAN2 Connector
AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.
SPP/EPP/ECP
PS/2 Mouse
Parallel Port
Connector
USB 2.0
PS/2 Keyboard
COM 1 Port
Port
Connector
RJ45 LAN Jack
(for AX4SP-GN and
AX4SPE-GN)
Line-In
Speaker Out
MIC-In
USB 2.0
COM 2 Port
Port
JP22 FSB OverClocking Jumper
Resetable Fuse
JP28 Keyboard/Mouse Wakeup
Enable/Disable Jumper
ATX Power Connector
3300
F Low ESR Capacitors
μ
4-pin 12V. ATX Power Connector
8X AGP slot
478-pin CPU socket with Voltage and
Frequency Auto-detection that supports Intel
Pentium4 1.6~3.20GHz+ CPU (Northwood)
®
Intel
865-P chipsets (AX4SP-G and
AX4SP-GN)
®
Intel
865-PE chipsets (AX4SPE-G and
AX4SPE-GN)
CPUFAN1 Connector
184-pin DIMMx2 supports Dual Channel
DDR 266/333/400 (Max to 2GB)
(only AX4SPE-G and AX4SPE-GN support
DDR 266/333/400)
ATA33/66/100 IDE Connectors x2
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX4SP-G and is the answer not in the manual?

Questions and answers

Related Manuals for AOpen AX4SP-G

Summary of Contents for AOpen AX4SP-G

  • Page 1 Serial ATA Ports x2 (only AX4SPE-G and AX4SPE-GN support Front Panel Connector DDR 266/333/400) SYSFAN2 Connector ATA33/66/100 IDE Connectors x2 AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.

  • Page 2: Jp14 Clear Cmos

    1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. Everything you need to boot this motherboard is included in this 2.

  • Page 3: Installing Processor

    3. Installing Processor 5. Setting CPU Voltage & Frequency CPU Core Voltage Auto Detectable This socket supports Micro-FC-PGA2 package CPU, which is the latest CPU package This motherboard supports CPU VID function. The CPU core voltage will be automatically developed by Intel. Other forms of CPU package are impossible to be fitted in. detected and it is not necessary to set CPU Core Voltage.

  • Page 4: Serial Ata Supported

    6. Serial ATA Supported 8. Connecting IDE and Floppy Cables Connect 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy connector FDD and This motherboard comes with integrated Serial ATA controller in chip, aiming to provide you an even faster transfer rate of 150 Mbytes/second. The traditional parallel ATA specification IDE connector.

  • Page 5: Connecting Front Panel Cable

    With 128-bit dual channel introduced, it doubles the memory bandwidth SPWR up to 6.4GB in advanced 128-bit mode. AX4SPE-G and AX4SPE-GN support DDR 400/333/266 with Maximum capacity up to 2 GB; AX4SP-G and AX4SP-GN only support ACPI & PWR IDE LED DDR 333/266 up to 2 GB.

  • Page 6: Front Audio Connector

    BIOS Setup, press <Del> during POST (Power On Self Test). upgrading. Choose "Load Setup Defaults" for recommended optimal performance. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://english.aopen.com.tw) Unzip the download BIOS package (ex: WAX4SPEGN102.ZIP) with WinZip (http://www.winzip.com) in Windows environment.

  • Page 7: Part Number And Serial Number

    It is very possible that your keyboard press Del to see if the is defective. system reboots. AX4SPE-GN R1.00 Jun. 01. 2003 AOpen Inc. During system rebooting, press Del to enter BIOS Setup. Choose Award Plug and Play BIOS Extension v1.0A “Load Setup Default".
  • Page 8 Online Manual: To download manual, please log on and then select your preferred language. Under “Type” directory, choose “Manuals” to go to our manual database. You can also find the manual and EIG in AOpen Bonus Pack. Dear Customer, http://download.aopen.com.tw/downloads Thanks for choosing AOpen products.

This manual is also suitable for:

Ax4sp-gnAx4spe-gAx4spe-gn
