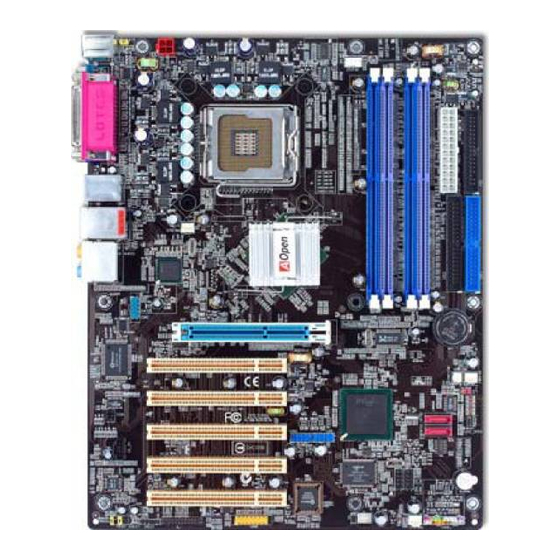

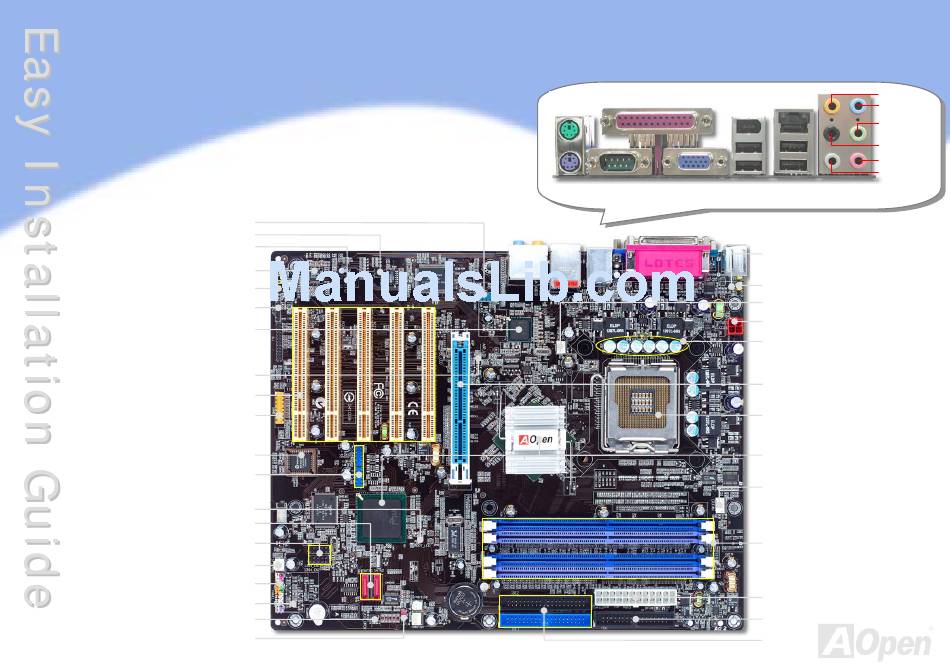

i865PEa-7ILFR / i865PEa-7IF / i865Ga-7lL / i865Ga-7IF
i800Pa-7I
COM2 Connector
(for i865Ga series)
IrDA Connector
CD_IN Connector
Onboard AC'97 CODEC
Front Audio Connector
S/PDIF Connector
Intel Gigabit LAN chip
(for i865PEa-7LFR & i865Ga-7IL)
AGP Protection LED
32-bit PCI Expansion Slots x 5
Game Port Connector
Die-hard BIOS
BOOT LED
Serial ATA Ports x2
Supports 100 MB/s Transfer Rate
IEEE1394 Connectors x 2
(for ILFR & IF series)
SYSFAN2 Connector
Front Panel Connector
STBY LED
Case Open Connector
JP14 CMOS Data Clear Jumper
AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
SPP/EPP/ECP Parallel Port
PS/2 Mouse
Connector
VGA Port
PS/2
COM Port
(for i865Ga series)
Keyboard
RJ45
Rear SUR
IEEE 1394
LAN Jack
Line-In
port
Speaker
Out
Center /
Subwoofer
MIC-In
Side SUR
USB 2.0
Ports
Resetable fuse
JP28 PS2 KB/Mouse Wakeup
Jumper
SYSFAN1 connector
4-pin 12V ATX Power Connector
Functional Polymer Capacitor
AGP 8X Expansion Slot that
supports 8X AGP card (2.1GB/s)
(for i865Ga series, it also
supports ADD card)
LGA775 CPU Socket with Voltage
and Frequency Auto-detection
that supports Intel
®
FC-LGA4 CPU
Intel
®
865PE/865G/848P/ICH5R/
ICH5 Chipsets that support
533/800 MHz FSB,
DDR 400/333/266 and AGP 8X
CPUFAN Connector
184-pin DIMMsx4 support 128bit
Dual channel DDR400/333/266
Max. To 4GB
(for i865PEa and i865Ga series)
184-pin DIMMsx2 support Single
channel DDR400/333/266
Max. To 2GB
(for i800Pa-7I)
ATX Power Connector
FDD Connector
IDE Connectors x 2
(ATA33/66/100 supported)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i865PEa-7ILFR and is the answer not in the manual?

Questions and answers

Related Manuals for AOpen i865PEa-7ILFR

Summary of Contents for AOpen i865PEa-7ILFR

  • Page 1 STBY LED FDD Connector Case Open Connector IDE Connectors x 2 JP14 CMOS Data Clear Jumper (ATA33/66/100 supported) AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
  • Page 2 Norton Anti-Virus CD x 1 4. Installing HD, Panel Ports ICH5R RAID Driver Diskette x 1 CD-ROM and SATA (Keyboard, Mouse, (for i865PEa-7ILFR only) Disk, etc etc) Floppy Disk Cable x 1 80-Wire IDE Cable x 1 5. Connecting Front 8.
  • Page 3 1. Installing CPU 3. Installing Memory Modules DIMM slots are designed in Electronic Blue and Navy Blue which are very easy to This socket supports FC-LGA4 CPU, which is the latest CPU package developed by Intel. Other forms of CPU package are impossible to be fitted in. recognize.
  • Page 4 (CPU, RAM, HDD, etc.) are good enough for turbo setting. 6. Connecting ATX Power Cable 8. AOpen Bonus Pack CD You can use the autorun menu of Bonus CD disc. Choose the utility and driver This motherboard comes with a 24-pin and 4-pin ATX power connector as shown from the icons at left side, and then click on the “GO”...
  • Page 5 Setting CPU Voltage & Frequency JP14 Clear CMOS Setting CPU Core Voltage You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure This motherboard supports Voltage ID (VID) function to detect CPU voltage below. automatically during power-on.
  • Page 6 To connect a serial ATA disk, you have to have a 7-pin serial ATA cable. Connect On the strength of Gigabit LAN controller on board, i865PEa-7ILFR and two ends of the serial ATA cable to the serial ATA header on the motherboard and i865Ga-7IL provide 10/100/1000 Mbps Ethernet for office and home use.

  • Page 7: Model Name And Bios Version

    Gold member of Club AOpen, and to ensure high service quality and priority from AOpen. You will also have a chance to play slot machine game to win prize from AOpen. Please prepare the following information before you start: Model Name, Part Number (P/N), Serial Number (S/N) and Purchase Date.
  • Page 8 Gold Member of Club AOpen so as to ensure quality service in the future. In order to maintain the best service to every customer of us, we recommend you to follow the procedures below and seek help from our branches according to the region you buy the product.
