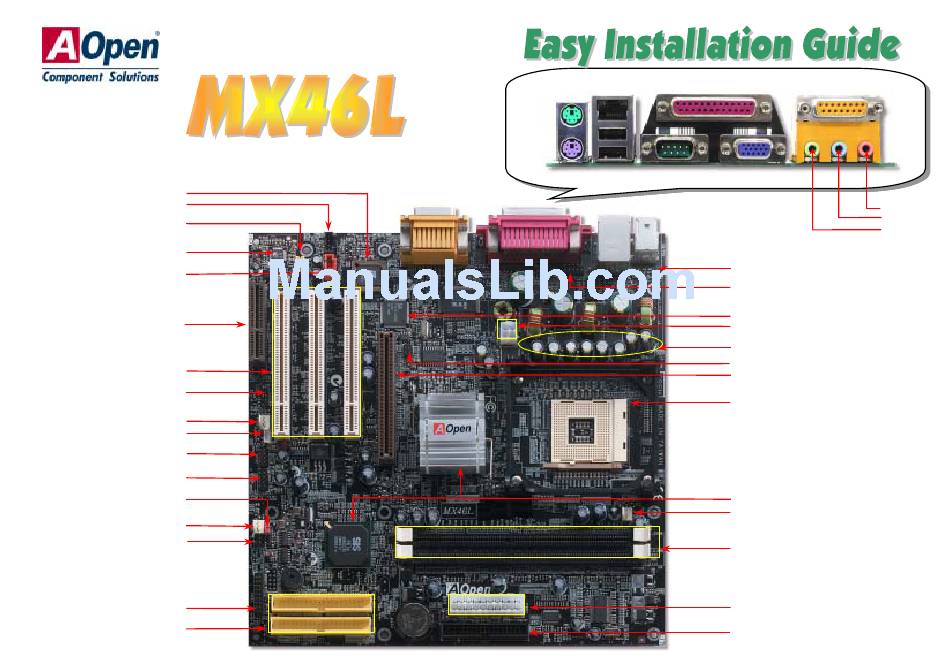

Flash ROM
CD-IN Connector
Front Audio Connector
AC'97 CODEC
MODEM-CN Connector
CNR Connector
(Only CNR Audio Supported)
32-bit PCI Expansion Slot x3
WOM (Wake on Modem) Connector
FAN3 Connector
WOL (Wake on LAN) Connector
rd
3
USB V1.1 Connector
nd
2
USB V1.1 Connector
JP14 CMOS Clear Jumper
FAN2 Connector
Dr
. LED Connector
(Upgrade Optional)
Front Panel Connector
ATA66/100/133 IDE Connector x2
RJ45 LAN
PS/2 Mouse
SPP/EPP/ECP Parallel Port
Jack
Connector
PS/2 Keyboard
USB Port
COM 1 Port
Connector
(V1.1)
MIDI/Game Port
VGA Connector
MIC-In
Line-In
Speaker Out
Resettable Fuse
COM2
PCI LAN Controller
4-pin 12V. ATX Power Conne
ctor
Low ESR Capacitors
IrDA Connector
AGP 4x Expansion Slot
(1.5V / 3.3V supported)
478-pin CPU socket (Willamette/
Northwood) with Voltage and Frequency
®
Auto-detection that supports Intel
®
Pentium
4 1.4~2.4GHz+ CPU
SIS NB: 650/SB:961B Chipset
CPU FAN connector
184-pin DIMMx2 supports DDR266
maximum up to 2 GB
ATX Power Connector
FDD Connector
Advertisement
Table of Contents
Related Manuals for AOpen MX46L
Summary of Contents for AOpen MX46L
- Page 1 RJ45 LAN PS/2 Mouse SPP/EPP/ECP Parallel Port MIDI/Game Port Jack Connector PS/2 Keyboard VGA Connector USB Port COM 1 Port Connector (V1.1) Flash ROM CD-IN Connector MIC-In Line-In Front Audio Connector Speaker Out AC’97 CODEC Resettable Fuse MODEM-CN Connector COM2 PCI LAN Controller CNR Connector 4-pin 12V.
-
Page 2: Connecting Atx Power Connector
Make sure you plug in the right direction. We strongly recommend you to insert the 4-pin connector before Bonus Pack CD x1 connecting the 20-pin connector. Ground Ground PS-ON -12V +3.3V +3.3V PART NO: 49.89U04.001 DOC. NO: MX46L-EG-E0203A +12V +3.3V 5VSB PO-OK... -
Page 3: Installing Processor
3. Installing Processor 5. Setting CPU Voltage & Frequency This socket supports Micro-FC-PGA2 package CPU, which is the latest CPU package Setting CPU Core Voltage developed by Intel. Other forms of CPU package are impossible to be fitted in. This motherboard supports CPU VID function. The CPU core voltage will be automatically detected. -
Page 4: Connecting Ide And Floppy Cables
6. Support Six USB V1.1 Connectors 8. Connecting IDE and Floppy Cables Connect 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy connector FDC and This motherboard provides six connectors to connect USB devices, such as mouse, keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You IDE connector. -
Page 5: Front Audio Connector
12. Connecting CD / MODEM Connector 10. Front Audio Connector If the housing has been designed with an audio port on the front panel, you’ll be able to CD-IN (Black) The MODEM-CN connector is used to connect MODEM-CN (Red) connect onboard audio to front panel through this connector. By the way, please remove Mono In/ Mic Out cable from internal modem card to onboard sound circuit. -
Page 6: Bios Upgrade Under Windows Environment
You can use the autorun menu of Bonus CD disc. Choose the utility and driver and select and it’s STRONGLY RECOMMMANDED to close all the applications before you start the model name. upgrading. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://www.aopen.com) Unzip download... -
Page 7: Part Number And Serial Number
IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. MX46L is the model name of the motherboard; R1.00 is BIOS version... - Page 8 Dear Customer, Test Report: We recommend choosing board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://www.aopen.com/tech/report/default.htm...
