AOpen AXPS-U Installation Manual

AOpen AXPS-U Installation Manual

Aopen motherboard
Hide thumbs Also See for AXPS-U:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
®

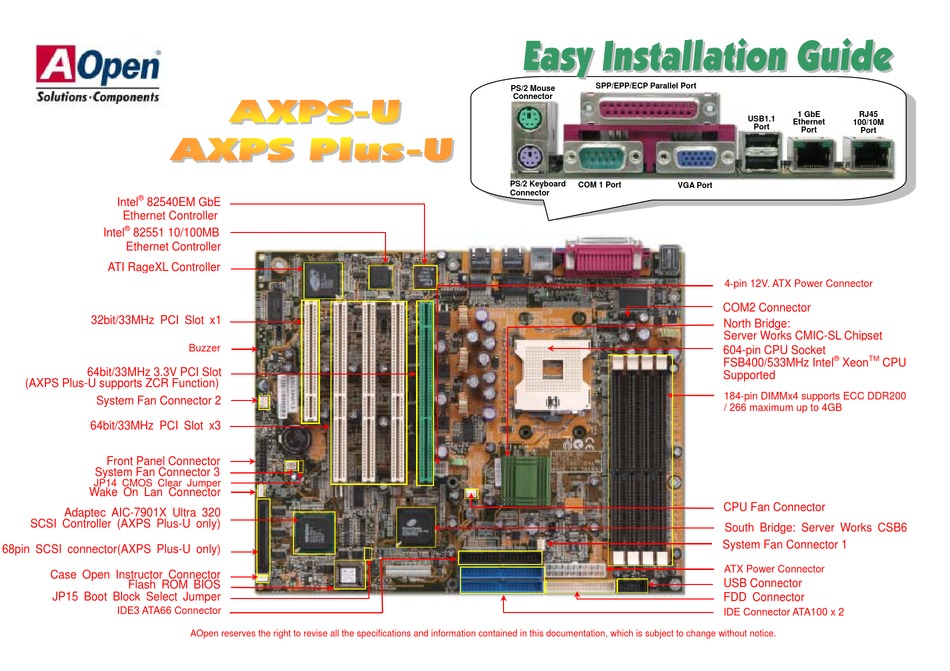

Intel
82540EM GbE
Ethernet Controller
®
Intel
82551 10/100MB
Ethernet Controller
ATI RageXL Controller
32bit/33MHz PCI Slot x1
64bit/33MHz 3.3V PCI Slot
(AXPS Plus-U supports ZCR Function)
System Fan Connector 2
64bit/33MHz PCI Slot x3
Front Panel Connector
System Fan Connector 3
JP14 CMOS Clear Jumper
Wake On Lan Connector
Adaptec AIC-7901X Ultra 320
SCSI Controller (AXPS Plus-U only)
68pin SCSI connector(AXPS Plus-U only)
Case Open Instructor Connector
Flash ROM BIOS
JP15 Boot Block Select Jumper
IDE3 ATA66 Connector
Buzzer
AOpen reserves the right to revise all the specifications and information contained in this documentation, which is subject to change without notice.
SPP/EPP/ECP Parallel Port
PS/2 Mouse
Connector
RJ45 LAN
Jack
PS/2 Keyboard
COM 1 Port
Connector
CPU2
CPU1
CPU 2
1 GbE
Ethernet
Port
1 GbE
USB1.1
Ethernet
100/10M
Port
Port
VGA Port
4-pin 12V. ATX Power Connector
COM2 Connector
North Bridge:
Server Works CMIC-SL Chipset
604-pin CPU Socket
®
FSB400/533MHz Intel
Xeon
Supported
184-pin DIMMx4 supports ECC DDR200
/ 266 maximum up to 4GB
CPU Fan Connector
South Bridge: Server Works CSB6
System Fan Connector 1
ATX Power Connector
USB Connector
FDD Connector
IDE Connector ATA100 x 2
RJ45
Port
TM
CPU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXPS-U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AOpen AXPS-U

Summary of Contents for AOpen AXPS-U

  • Page 1 Flash ROM BIOS JP15 Boot Block Select Jumper FDD Connector IDE3 ATA66 Connector IDE Connector ATA100 x 2 AOpen reserves the right to revise all the specifications and information contained in this documentation, which is subject to change without notice.

  • Page 2: Installing Cpu

    1. Installing CPU Pull up the CPU socket lever and up to CPU Pin 1 90-degree angle. Locate Pin 1 in the socket and look for a (golden) cut edge on the CPU upper interface. Everything you need to boot Match Pin 1 and cut edge.

  • Page 3: Connecting Ide And Floppy Cables

    3. Connecting IDE and Floppy Cables 5. Automatically Setting CPU Voltage & Frequency Connect 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy connector FDC and IDE Setting CPU Core Voltage connector. Be careful of the pin1 orientation. Wrong orientation may cause system damage. This motherboard supports CPU VID function.
  • Page 4 7. Install DIMM Modules 9. Connecting Front Panel Connector This motherboard has four 184-pin DIMM sockets that allow you to install PC200/266 Attaching such as power switch, reset switch, HDD LED connector, etc to corresponding Registered memory up to 4.0GB. pins.

  • Page 5: Chassis Instruction Connector

    11. PC99 Color Coded Back Panel 13. Support 1Gbps LAN onboard The Intel 82545EM integrates Intel’s fourth-generation Gigabit MAC design with fully The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, COM1, VGA, Printer and integrated, physical-layer circuitry to provide a standard IEEE 802.3 Ethernet interface for USB1.1.
  • Page 6 15. Support the 2 USB1.1 Channel 17. Connecting COM2 Connector This motherboard provides two channels to link USB devices, such as mouse, This motherboard comes with a COM1 connector on the back panel. However, we provide keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You can an extra COM2 connector for your convenience.

  • Page 7: Part Number And Serial Number

    19. Part Number and Serial Number If you encounter any trouble to boot you system, follow the The Part Number and Serial number are printed on bar code label. You can find this bar procedures accordingly to resolve the problem. code label on the outside packing, on PCI slot or on component side of PCB.
  • Page 8 Online Manual: To download manual, please log on and then select your preferred language. Under “Type” directory, choose “Manuals” to go to our manual database. You can also find the manual and EIG in AOpen Bonus Pack. http://club.aopen.com.tw/downloads Dear Customer, Thanks for choosing AOpen products.
