Full-range 10” ceiling loudspeakers

Advertisement

CS10 ceiling subwoofer
Introduction
The CS10 is a self-contained subwoofer, utilising an 8ohm 10"
(250mm) low frequency driver, designed specifically to be mounted
above a suspended ceiling replacing one 600mm x 600mm tile. The
enclosure is made from fire retardant MDF and the grille is
perforated steel, painted RAL9010 white with a 20% gloss finish to
blend in with most white suspended ceilings.
The subwoofer is fixed via three wrap-around brackets.

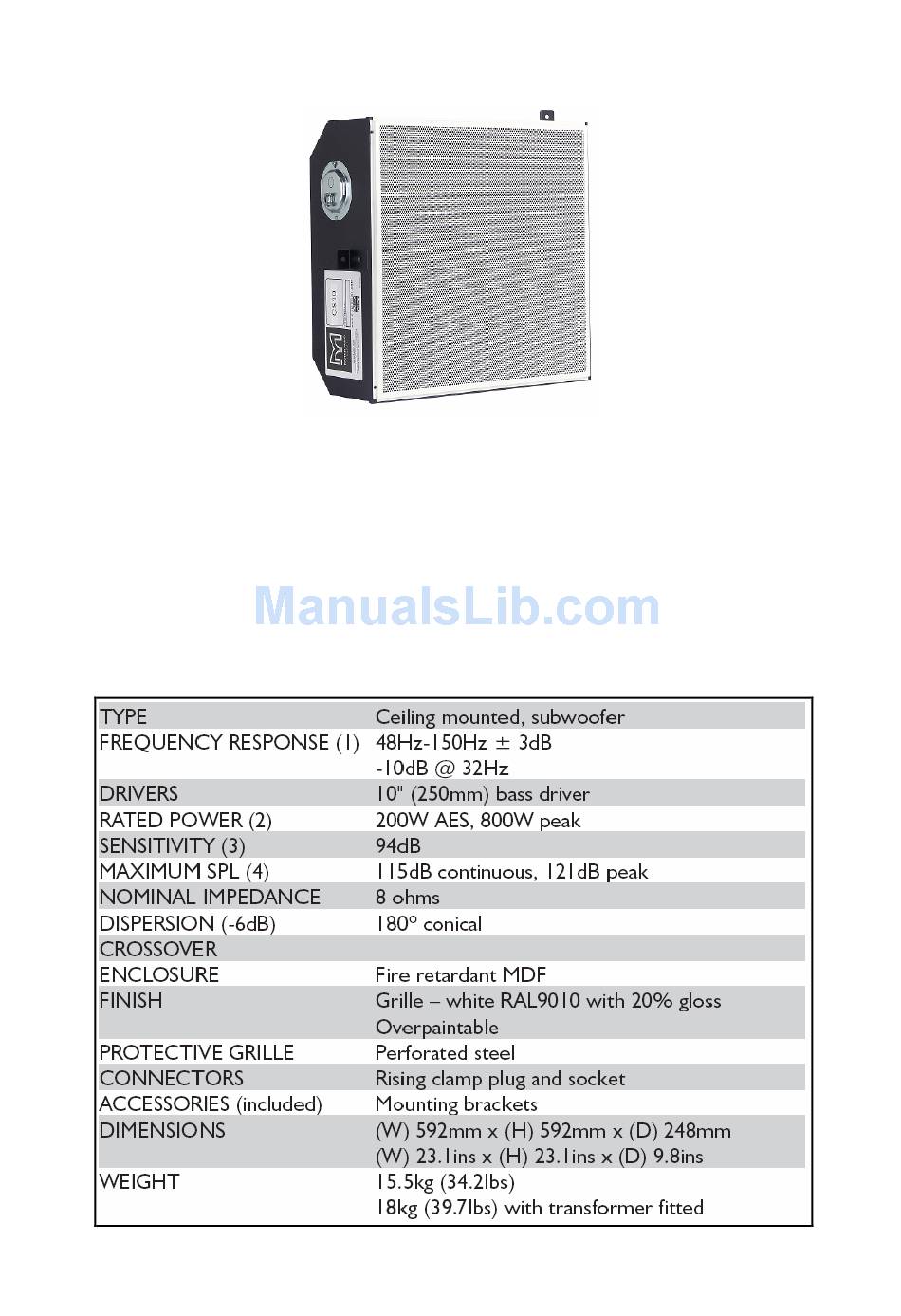

CS10 specifications
2
All material © 2007. Martin Audio Ltd. Subject to change without notice.
