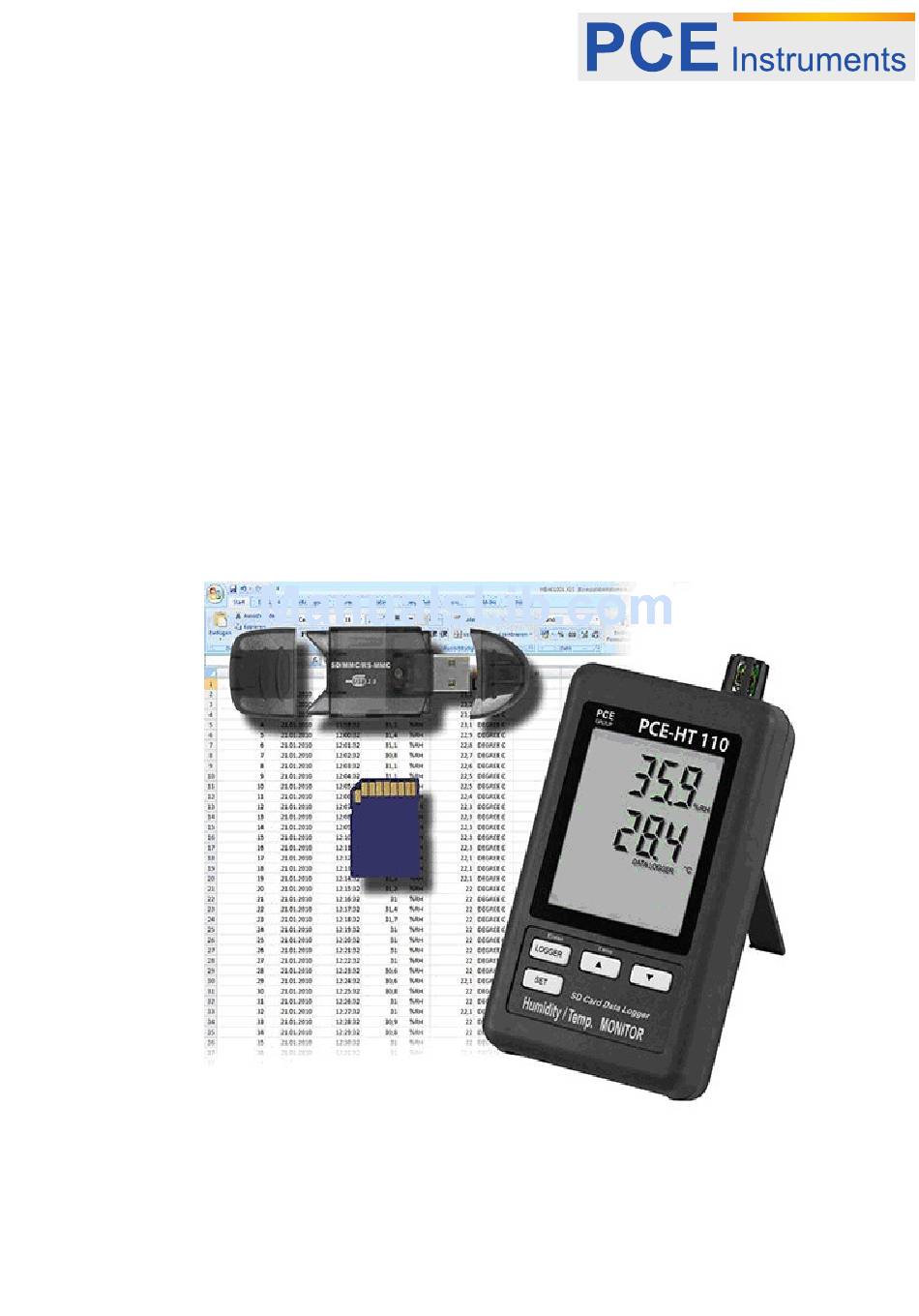

Manual
Hygrometer
PCE-HT 110
PCE Americas Inc.
711 Commerce Way
Suite 8
Jupiter
FL-33458
USA
From outside US: +1
Tel: (561) 320-9162
Fax: (561) 320-9176
info@pce-americas.com
www.pce-instruments.com/english
www.pce-instruments.com
PCE Instruments UK Ltd.
Units 12/13
Southpoint Business Park
Ensign way
Hampshire / Southampton
United Kingdom, SO31 4RF
From outside UK: +44
Tel: (0) 2380 98703 0
Fax: (0) 2380 98703 9
info@pce-instruments.com
Advertisement
Table of Contents
Related Manuals for PCE Instruments PCE-HT 110
Summary of Contents for PCE Instruments PCE-HT 110
- Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0...
-
Page 2: Table Of Contents
Your purchase of this HUMIDITY/BAROMETER/TEMP. Monitor with SD CARD datalogger marks a step forward for you into the field of precision measurement. Although this datalogger is a complex and delicate instrument, its durable structure will allow many years of use if proper operating techniques are developed. -
Page 3: Features
1. FEATURES * Monitor with real time data logger, save the measuring data along the time information ( year, month, date, minute, second ) into the SD memory card and can be down load to the Excel, extra software is no need. User can make the further data or graphic analysis by themselves. - Page 4 Datalogger 5/10/30/60/120/300/600 seconds Sampling Time or Auto. Default sampling time is 60 seconds. The " Auto " sampling . means when the measuring value is changed ( > ± 1 %RH or > ± 1 ) will save the ℃ data one time only.
-
Page 5: Front Panel Description
2-2 Electrical Specifications (23± 5 ℃ Humidity Range 10 % to 95 % R.H. Resolution 0.1 % R.H. Accuracy 70% RH : ≧ ± (3% reading + 1% RH). < 70% RH : ± 3% RH. Temperature Range to 50 to 122 ℃... -
Page 6: Display
3-1 Display 3-2 Logger button, Enter button button, Time button ▲ button ▼ 3-5 SET button 3-6 Humidity/Temp. sensor 3-7 Hanging holes 3-8 Stand 3-9 Battery cover/Battery compartment 3-10 Screw of the battery cover 3-11 Reset button 3-12 RS-232 output terminal 3-13 SD card socket 3-14 DC 9V power adapter input socket 3-15 Hanging unit ( with sticker ) -
Page 7: Datalogger
d. Decimal format setting The numerical data structure of SD card is default used the " . " as the decimal, for example "20.6" "1000.53" . But in certain countries ( Europe ...) is used the " , " as the decimal point, for example "... - Page 8 5-2 Datalogger a. Start the datalogger Press the " Logger button ( 3-2, Fig. 1 ) > 2 seconds continuously, until the Display show the indicator " DATALOGGER ", release the " Logger Button " ( 3-2, Fig. 1 ), then the measuring data along the time information will be saved into the memory circuit.
-
Page 9: Datalogger
5-4 SD Card Data structure 1) When the first time, the SD card is used into the meter, the SD card will generate a folder : HTC01 2) If the first time to execute the Datalogger, under the route HTC01\, will generate a new file name HTC01001.XLS. -
Page 10: Saving Data From The Sd Card To The Computer
6. Saving data from the SD card to the computer ( EXCEL software ) 1) After execute the Data Logger function, take away the SD card out from the " SD card socket " ( 3-13, Fig. 1 ). 2) Plug in the SD card into the Computer's SD card slot ( if your computer build in this installation ) or insert the SD card into the "... -
Page 11: Advanced Setting
EXCEL graphic screen ( for example ) 7. ADVANCED SETTING Under do not execute the Datalogger function, press the " SET button " ( 3-5, Fig. 1 ) > 2 seconds continuously will enter the " Setting " mode., then release the " SET button ". Following press the "... - Page 12 Remark : During execute the " Setting " function, if within 5 seconds , do not press any buttons further, the LCD Display will return to normal screen. 7-1 SD memory card Format When the Display show " Sd F " 1) Use the "...
-
Page 13: Set Sampling Time
Remark : The adjusted unit will be flashed. 2) After set all the time value ( Year, Month, Date, Hour, Minute, Second ), press the " SET button " ( 3-5, Fig. 1 ) once will save the time value, then the screen will jump to Sampling time "... - Page 14 yES - Meter's beep sound will be ON with default when save each data. no - Meter's beep sound will be OFF with default. when save each data. 2) After select the upper text to " yES " or " no ", press the "...
-
Page 15: Set Rs232 Data Output On/Off
7-6 Select the Temp. unit to ℃ ℉ When the Display show " t-CF " 1) Use the " Button " ( 3-3, Fig. 1 ) or " Button " ▲ ▼ ( 3-4, Fig. 1 ) to select the upper Display text to " C " or "... -
Page 16: Power Supply From Dc Adapter
8. POWER SUPPLY from DC ADAPTER The meter also can supply the power supply from the DC 9V Power Adapter ( optional ). Insert the plug of Power Adapter into " DC 9V Power Adapter Input Socket " ( 3-14, Fig. 1 ). 9. -
Page 17: Rs232 Pc Serial Interface
11. RS232 PC SERIAL INTERFACE The instrument has RS232 PC serial interface via a 3.5 mm terminal ( 3-12, Fig. 1 ) if the RS232 function already select to " ON ", refer to chapter 7-7, page 14. The data output is a 16 digit stream which can be utilized for user's specific application. -
Page 18: Patent
Decimal Point(DP), position from right to the left 0 = No DP, 1= 1 DP, 2 = 2 DP, 3 = 3 DP Polarity 0 = Positive 1 = Negative D11 & D12 Annunciator for Display = 01 = 02 % RH = 04 ℃...
