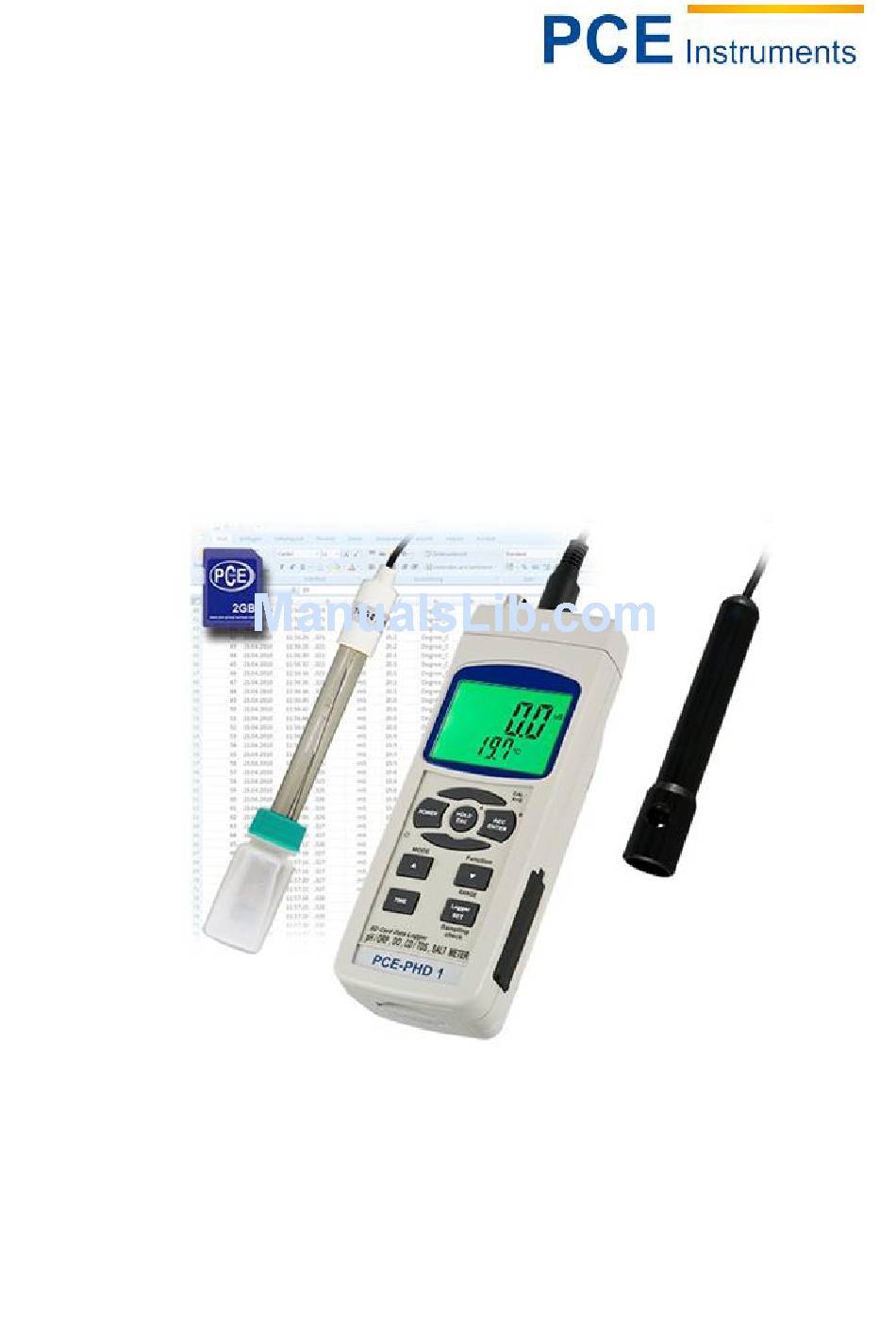

- Page 1 PCE Instruments UK Ltd. Units 12/13 Southpoint Business Park Ensign way Southampton Hampshire United Kingdom, SO31 4RF Tel: 02380 98703 0 Fax: 02380 98703 9 info@industrial-needs.com www.industrial-needs.com www.pce-instruments.com/english Manual PH-EC-O2 pH meter PCE-PHD 1 Version 2.0 18.11.2014...
-
Page 2: Table Of Contents
Manual Table of contents Introduction ......................3 Delivery contents ........................3 Safety information ....................3 Warning symbols ........................3 Safety precautions ........................3 Specifications ......................4 Device description ....................7 Instructions ......................8 Mode selection ........................... 8 pH / mV measurement ........................ 8 mV measurement ........................ -
Page 3: Introduction
Delivery contents 1 x pH meter PCE-PHD 1, 1 x pH electrode, 1 x conductivity electrode, 1 x SD memory card, 1 x card reader, 6 x batteries and user's manual... -
Page 4: Specifications
Manual Specifications PH measurement Measurement ranges 0.00 ... 14.00 pH Resolution 0.01 pH Accuracy ±0.02 pH + 2 digits Calibration 3 points (pH 4, pH 7 y pH 10) Temperature compensation automatic with additional temperature sensor (0 ... 60ºC) or manual (0 ... 100 ºC) Conductivity Measurement ranges 0 ... - Page 5 Manual Temperature compensation automatic (0 ... 50 ºC) Temperature Measurement range 0 ... 60 ºC Resolution 0.1 ºC Accuracy ±0.8 ºC Temperature compensation automatic (0 ... 60 ºC) Technical specifications Measurement rate 1 second up to 9 hours Display Memory an SD card (up to 16 GB) a 2 GB card included in the delivery Interface...
- Page 6 Manual (when display light is on, the power consumption will increase by approx. 12 mA) data on display can be held / “frozen“ Data Hold Memory recall minimum and maximum values field strength ‹ 3 V/m and frequency ‹ 30 MHz Conditions to achieve the stated accuracies...
-
Page 7: Device Description
Manual Device description (1) Display (2) Power button (backlight) (3) Hold button (ESC button) (4) REC button (Enterbutton) (5) Mode button (▲ button) (6) Range button (▼ button, control button) (7) Time button (8) Logger button (SET button, sampling check) (9) Stand (10) Battery compartment cover (11) Battery comparment screw... -
Page 8: Instructions
Manual Instructions Mode selection 1.Switch on the meter by pushing and holding the power button (2) for a few seconds. (Pushing and holding the button again for more than two seconds switches off the device.) 2.You can choose from four modes. After pushing the mode button (5), the display will show the following options in sequence: pH, mV ( ORP ) measurement dissolved oxygen measurement... -
Page 9: Mv Measurement
Manual mV measurement The device has an mV (millivolt) measurig function wich allows the user to make ORP and other precise mV measurement. To measure the mV value: 1. Switch on the device. 2. Select the “PH“ measurement mode. 3. Push the control button (6). The display switches from pH to mV (if you push the button again, the display switches back from mV to pH). -
Page 10: Conductivity Measurement
Manual for calibration by means of a solution with a pH value of 10 deleting the existing calibration 10. By pushing the Enter button you can finish the calibration. Note: You should make at least a two-point calibration (i. e. pH 7 and pH 4 calibration or pH 7 and pH 10 calibration). -
Page 11: Conductivity Calibration
Manual Conductivity calibration For calibration, a conductivity standard solution is necessary, e. g. 1.413mS standard solution for a measurement range of 2 mS, 80 µS standard solution for a measurement range of 200 µS and 12.88 mS for a measurement range of 20mS. To carry out a conductivity calibration: 1.Put the plug of the conductivity probe into the CD socket (15) 2.Switch on the device. -
Page 12: Atmospheric Oxygen Content Measurement
Manual To measure dissolved oxygen: 1.Put the plug oft he oxygen probe into the DO socket (14). 2.Switch on the device. 3.Select the “do“ measurement mode. 4.Hold the handle of the probe and dip the probe head at least 10 cm deep into the solution to be measured so that the probe takes over the temperature of the liquid, which enables automatic temperature compensation. -
Page 13: Other Functions
Manual Background information on a probe with a membrane in the measurement head: This is a thin membrane made of Teflon® which can be found in the probe tip. Oxygen molecules can pass through the membrane whereas the substantially bigger molecules contained in the electrolyt cannot. This feature enables the oxygen to spread out in the electrolyte of the probe and ist concentration can be measured. -
Page 14: Sd Card Structure
Manual Put the SD card (1 Gb to 16 GB) correctly into the slot (20). 2.Format the SD card. If the memory card is used for this meter the first time, it is recommended to format it. 3.Set the time. When you use the device for the first time, the time must be set. -
Page 15: To Save The Sd Card Data On The Computer (Excel Software)
Manual -When the WAA01 directory contains more than 99 subdirectories, a new directory called “WAA02“ is created. -This means that the data paths correspond to the following schema: WAA01\ WAA01001.xls WAA01002.xls ......WAA01099.xls WAA02\ WAA02001.xls WAA02002.xls ......WAA02099.xls WAAXX\ .......... - Page 16 Manual t-CF:Selection of unit (°C or °F) SAlt:Setting the DO salinity compensation, only in “do“ mode High-:Setting the DO height compensation (meters), only in “do“ mode Highf: Setting the DO height compensation (feet), only in “do“ mode PEr C:Setting the CD temperature compensation factor, only in “Cd“ mode tdS:Selection of CD or TDS, only in “Cd“...
- Page 17 Manual When the display shows “dEC“: 1.Use the arrow buttons to set to “bASIC“ or “Euro“. basic = A dot (.) is used as decimal point Euro = A comma (,) is used as decimal point 2.Push the Enter button to confirm your selection. To choose a unit (°C or °F) When the display shows “t-CF“: 1.Use the arrow buttons to set to “C“...
-
Page 18: Rs232 Interface
Manual 1.Use the arrow buttons to set the desired value. 2.Push the Enter button to confirm your selection. To leave further settings When the display shows “ESC”: Push the Enter button to leave further settings and to return to the normal measurement function. Note: You can leave further settings by pushing the ESC button (3). -
Page 19: Maintenance And Cleaning
In order to comply with the ElektroG (German Electrical Equipment Act), we take our devices back. We either re-use them or give them to a recycling company which disposes of the devices in line with law. If you have any questions, please contact PCE Instruments. WEEE reg.-no. DE69278128... -
Page 20: Contact
Manual Contact If you have any questions about our range of products or measuring instruments please contact PCE Instruments. By post: PCE Instruments UK Ltd. Units 12/13 Southpoint Business Park Ensign Way, Southampton Hampshire United Kingdom, SO31 4RF By phone:...
