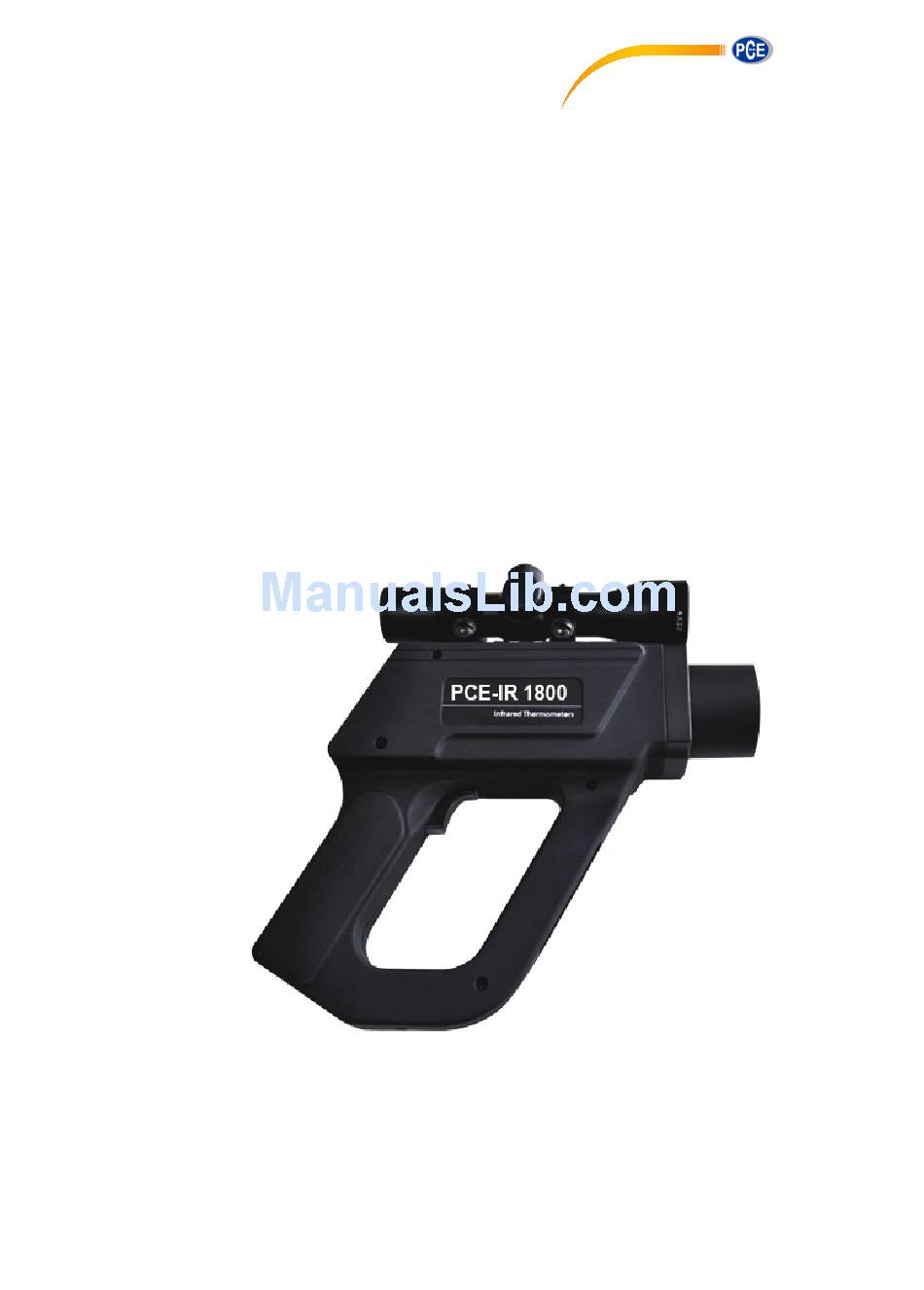

- Page 1 United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@pce-instruments.com www.pce-instruments.com/english www.pce-instruments.com Manual Pyrometer PCE-IR 1000 series PCE-IR 1300 / 1600 / 1800...
-
Page 2: Table Of Contents
Content 1. Introduction 1.1 User interface 1.2 Display 1.3 External function introduction 2. Operation 2.1 Starting the measurement 2.2 Hold-function 2.3 Switch off 2.4 Setup the laser 2.5 Setup the display backlight 2.6 Setup the parameters 2.7 Setup emissivity 2.8 Setup the Min/Max function 2.9 Setup high and low alarm 2.10 Setup the temperature unit 2.11 Setup offset... -
Page 3: Introduction
1. Introduction Welcome to select PCE-IR 1000 Series portable infrared thermometer. Each single product passed through a quality process. Please read the operators manual carefully before you start to use the unit. User interface Mode-Button The button in middle that marked with a circle is the mode button. In hold mode, each time you press it, you will enter to another function setup, e.g. -
Page 4: External Function Introduction
External function introduction 1) Trigger 2) Battery compartment cover 3) USB interface 4) Telescope... -
Page 5: Operation
2. Operation 2.1 Starting the measurement Turn on: Press the trigger to turn on the unit. Measuring: Aim the thermometer at a target. Pull the trigger and keep it pressed. The display will show the current temperature value. 2.2 Hold-Function If you release the trigger, the unit will enter to HOLD mode. -
Page 6: Setup The Parameters
2.6 Setup the parameters You can setup the emissivity, max/min display, high/low alarm, temperature unit, temperature offset as follows: Release the trigger to enter to the Hold mode. Each time you press the mode button will enter to another function interface. The currently selected mode will show on the display by indicator flashes. -
Page 7: Setup The Min/Max Function
2.8 Setup the Min/Max function In HOLD mode, press the mode button repeatedly until enter into the Min/Max mode. Press the up/down button to setup which mode you want. MIN indicates the minimum value of current measurement; MAX indicates the maximum temperature value of current measurement. -
Page 8: Setup The Temperature Unit
2.10 Setup the temperature unit In Hold mode, press the mode button（○）until enter to the temperature unit selecting mode, and press the up/down button to select the requested temperature unit. Centigrade scale℃ Fahrenheit scale℉ 2.11 Setup offset In Hold-mode, press the mode button repeatedly until enter into the temperature offset mode. -
Page 9: Data Logger
3. Data logger PCE-IR 1000 series thermometer has the internal data logger with a maximum capacity of 2000 measurement protocols. 3.1 Storing data In measurement mode, release the trigger to enter to HOLD mode, and press the down button, there will be a line of small numbers; an icon showing a disk and an icon of “MAX”... -
Page 10: Clear The Memory
3.3 Clear the memory In the Storing Data mode, choose the memory position to “0” by pressing the down button. Press the mode button (○) will clear the memory. The three buzzer signals confirms the successful clearing. -
Page 11: Software
4. Software PCE-IR 1000 series portable infrared thermometer has special software and connecting cable. Users can set the unit, download the loggered data and recording temperature curve and through the software. 4.1 System Requirements Vista, XP or Windows 2000 operation system USB interfacet Hard disk with at least 30MByte free space At least 128MByte RAM... -
Page 12: Download The Data
7) After completing the driver installati on, it will new hardware again, repeat the above operations until system prompt “New hardware has been installed successfully, you can use it now”. 8) Right click “My computer” to see “attributes”, choose hardware device manager port as follows: We can see there is a new port named “Infrared Thermometer Adapter”... - Page 13 2) Starting the measurement Please press the measuring key: [Measure begin] 3) Scaling of the temperature axis Global scaling: temperature range of the diagram is automatically adapted to the respective peak values. Local scaling: temperature range of the diagram will be dynamically adapted to the respective peak values.
-
Page 14: Specifications
5. Specifications 5.1 Optical Specifications PCE-IR 1300 D:S=120:1 PCE-IR 1800 / PCE-IR 1600 D:S=300:1... -
Page 15: General Specifications
5.2 General specifications PCE-IR 1300 Model Temperature range 0~1300 System accuracy ±2 (0~200 ) ±1% (200~1300 ) Repeatability ±1 (0~200 ) ±0.5%(200~1300 ) Optical resolution 120:1 Response time 300ms (95%) Emissivity 0.100~1.000adjustable Aim mode Laser telescope aim Signal processing MAX/MIN... - Page 16 General specifications PCE-IR 1600 Model Temperature range 385~1600 System accuracy 0.3% (at ambient temperature 23 5 ) Repeatability 0.1% 1 (at ambient temperature 23 5 ) Optical resolution 300:1 Response time 100ms (95%) Emissivity 0.100~1.000 adjustable Aim mode Laser telescope aim Signal processing MAX/MIN Scan/Hold Function...
- Page 17 General specifications PCE-IR 1800 Model Temperature range 650~1800 System accuracy 0.3% 2 (at ambient temperature 23 5 ) Repeatability 0.1% 1 (at ambient temperature 23 5°C) Optical resolution 300:1 Response time 100ms (95%) Emissivity 0.100~1.000 adjustable Aim mode Laser telescope aim Signal processing MAX/MIN Scan/Hold Function...
- Page 18 Appendix: Emissivity Emissivity: the radiant intensity launched from the object depends on the temperature of the target and the object surface material’s radiation characteristic. Emissivity table Material Emissivity 8-14µm Aluminum oxidized 0.2-0.4 Asbestos 0.95 Asphalt 0.95 Basalt Ceramic 0.95 Concrete 0.95 Copper oxidized...
