Chapter 2: Jumpers and Connectors

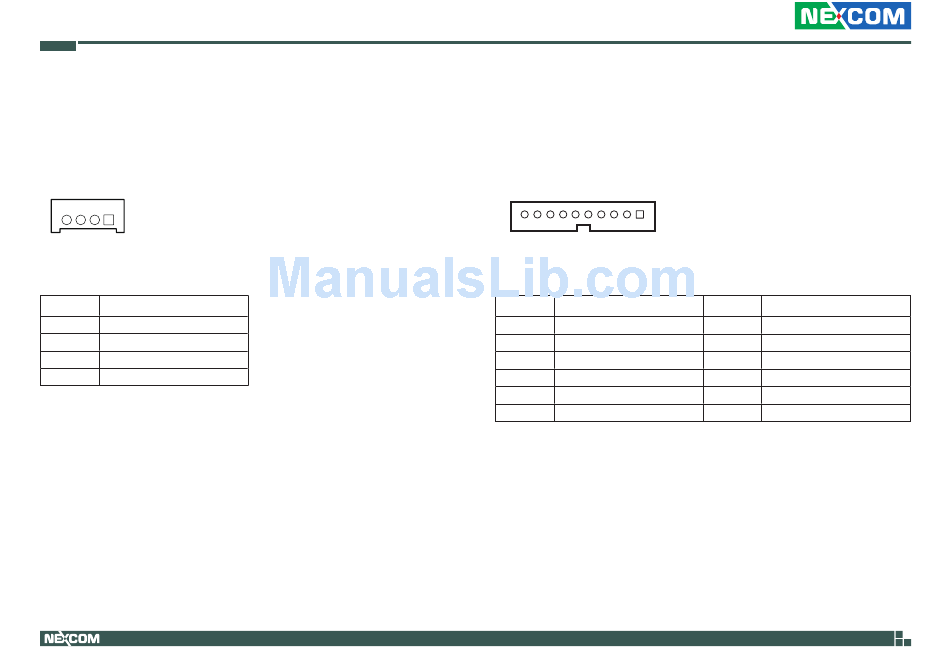

SATA Power Connector

Connector type: 1x4 4-pin header, 2.0mm pitch
Connector location: J6
4 1
Pin definition
1 VCC12
2 GND
3 GND
4 VCC5
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.

Port 80 Connector

Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: J3
10
Pin definition
1 GND
3 LPC_CLK0_DEBUG
5 LPC_AD3
7 LPC_AD1
9 VCC3
MH1 GND
24
1
Pin definition
2 PLTRST_3P3#
4 LPC_FRAME#
6 LPC_AD2
8 LPC_AD0
10 VCC3
MH2 GND
