Chapter 1: Product Introduction

Knowing Your NISE 2400 Series

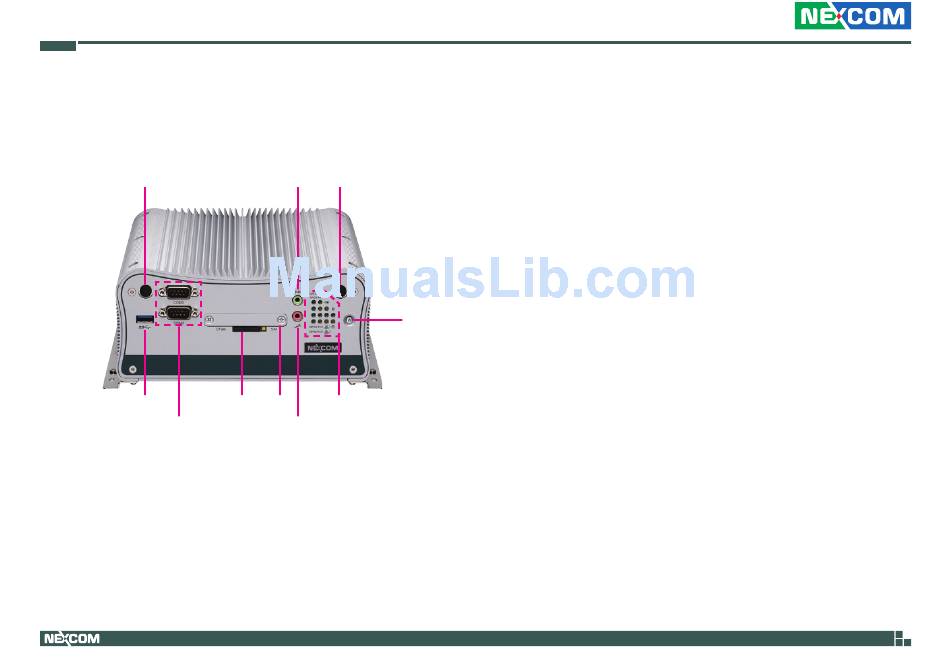

Front Panel

Antenna Hole
USB 3.0
COM3/COM4
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Line-out Antenna Hole
Power
Switch
SIM CFast LEd Indicators
Mic-in
Antenna Hole
Used to install external antennas.
USB 3.0
USB 3.0 port to connect the system with USB 3.0/2.0 devices.
COM 3 and COM 4
Two DB9 ports used to connect RS232/422/485 compatible devices.
SIM
Used to insert a SIM card.
CFast Socket
Used to insert a CFast card.
Line-out
Used to connect a headphone or a speaker.
Mic-in
Used to connect an external microphone.
LEd Indicators
Indicates the power status, hard drive (CFast), RTC battery, LAN1/2, COM1/2
and GPO activity of the system.
Power Switch
Press to power-on or power-off the system.
