Chapter 2: Jumpers and Connectors

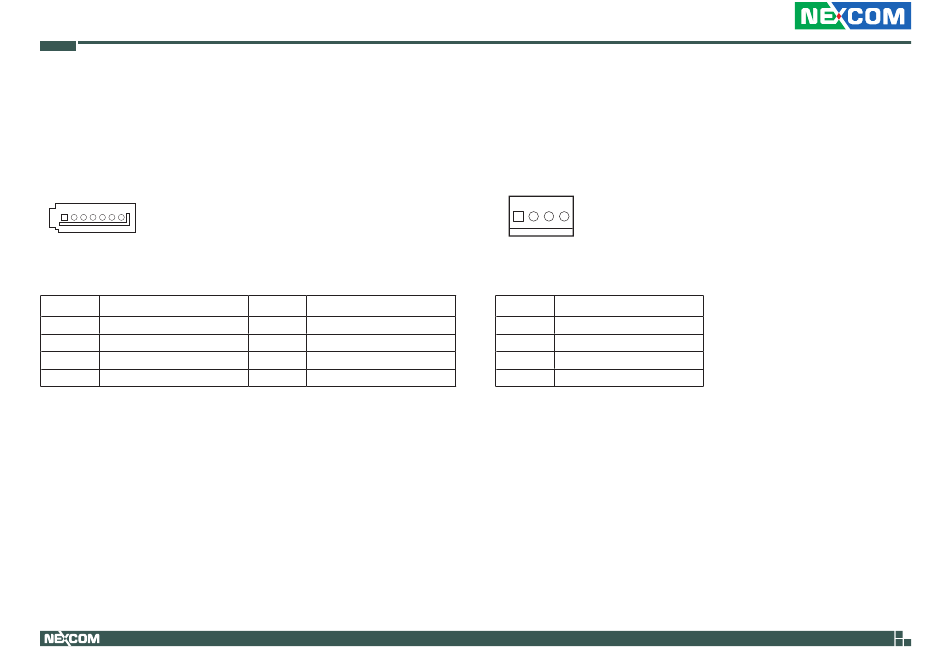

SATA DOM Connector
Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180)
Connector location: CN5
1
7
Pin
Definition
1
GND
3
SATA_TXN1
5
SATA_RXN1
7
GND
Copyright © 2014 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
SATA_TXP1
4
GND
6
SATA_RXP1
SATA Power Connector
Connector type: 1x4 4-pin Wafer, 2.54mm pitch
Connector location: CN2
1
4
Pin
Definition
1
12V
2
GND
3
GND
4
VCC5
27
EBC 355 User Manual
