Chapter 2: Jumpers and Connectors

External I/O Interfaces - Rear Panel

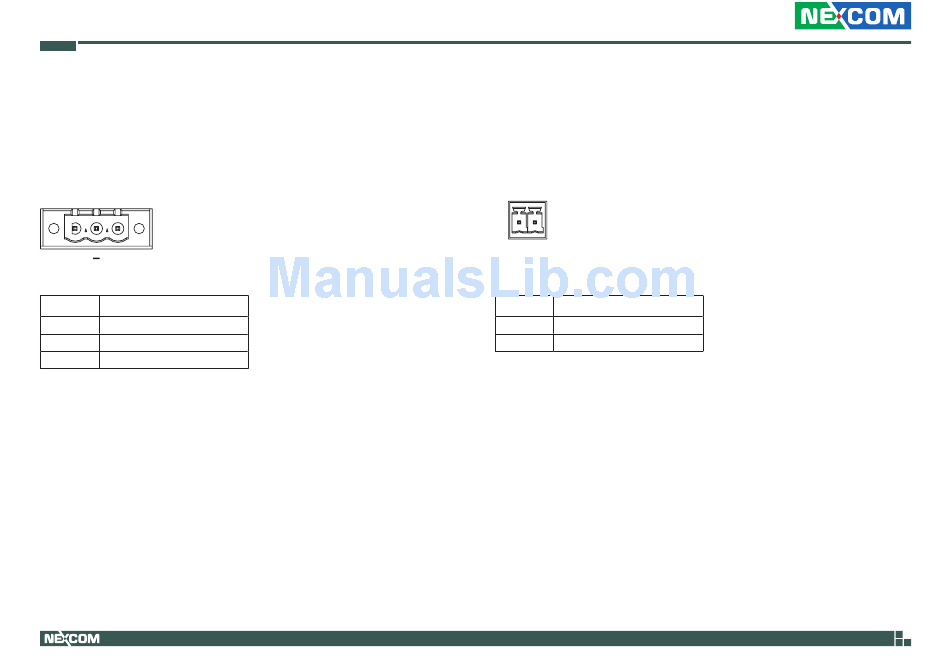

9V - 30V dC Power Input

Connector type: Phoenix Contact 1x3 3-pin terminal block
Connector location: CN8
3 1
+
G
Pin definition
1 VIN_VCC
2 VIN_VSS
3 Chassis_GND
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.

Remote Power On/Off Switch

Connector type: 2-pin switch
Connector location: JP11
2 1
Pin definition
1 PBT_TR
2 GND
19
NISE 2400 Series User Manual
