Summary of Contents for Cornelius Alta 1522
-

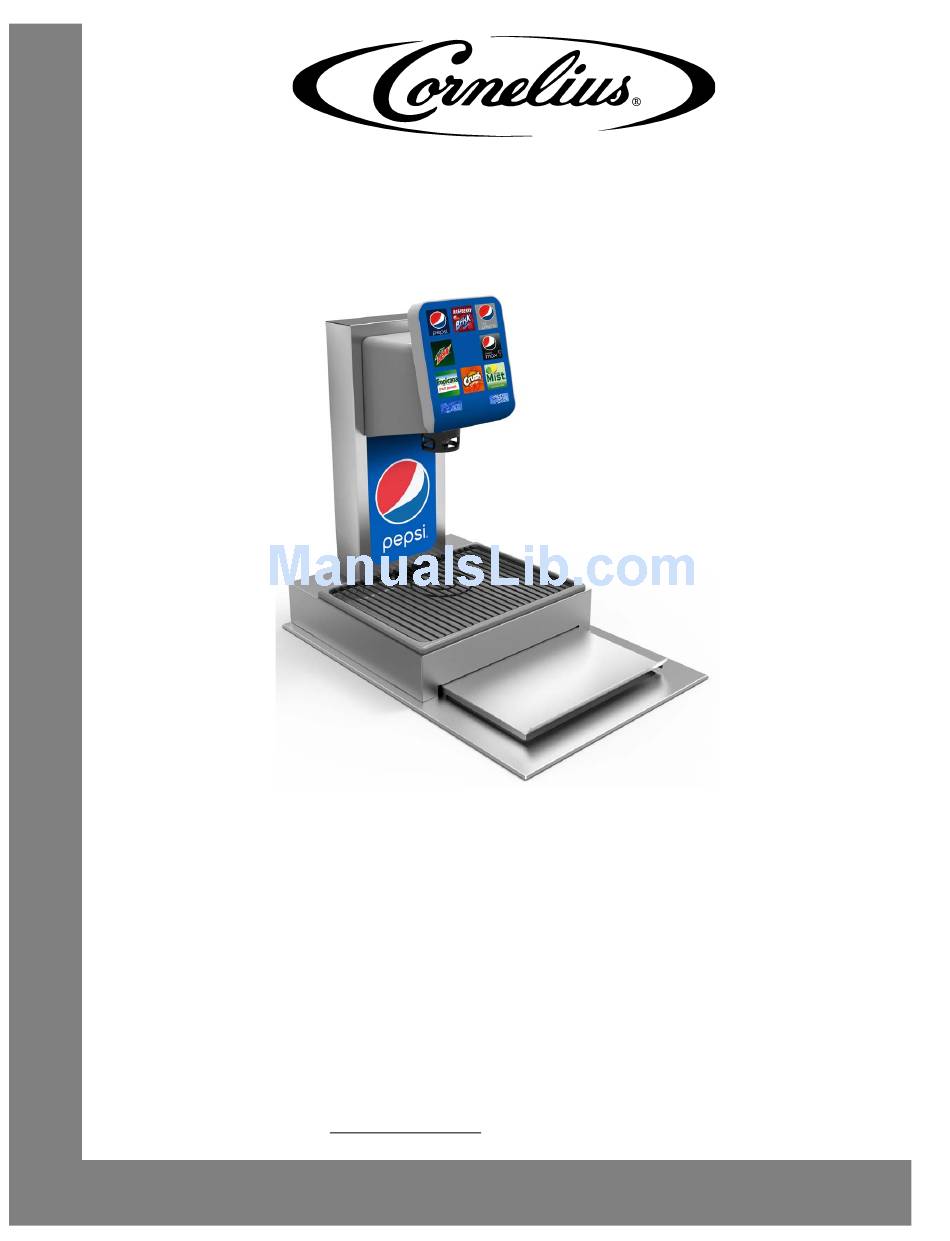

Page 1: Installation Instructions
DROP-IN AND FREE-STANDING INSTALLATION INSTRUCTIONS Alta 1522 Drop-In Dispenser Release Date: June 12, 2013 Publication Number: 741200028INS Revision Date: May 9, 2014 Revision: B Visit the Cornelius web site at www.cornelius.com for all your Literature needs. -
Page 2: Contact Information
Commercial Warranty. Cornelius will not be responsible for any repair, replacement or other service required by or loss or damage resulting from any of the following occurrences, including but not limited to, (1) other than normal and proper use... -
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Instructions..............1 Read and Follow ALL Safety Instructions . - Page 4 Adjust Water-To-Syrup Ratio ............10 Troubleshooting .
-
Page 5: Safety Instructions
Alta 1522 Drop-in Dispenser Installation Instructions SAFETY INSTRUCTIONS ALL S EAD AND OLLOW AFETY NSTRUCTIONS Safety Overview • Read and follow ALL SAFETY INSTRUCTIONS in this manual and any warning/caution labels on the unit (decals, labels or laminated cards). • Read and understand ALL applicable OSHA (Occupational Safety and Health Administration) safety regula- tions before operating this unit. -
Page 6: Safety Precautions
Alta 1522 Drop-in Dispenser Installation Instructions AFETY RECAUTIONS This unit has been specifically designed to provide protection against personal injury. To ensure continued protection observe the following: WARNING: Disconnect power to the unit before servicing following all lock out/tag out procedures established by the user. Verify all of the power is off to the unit before any work is performed. -
Page 7: Unpacking And Inspection
Request a written inspection report from Claims Inspector to substantiate any necessary claim. NOTE: IMI Cornelius is not responsible for damaged freight. If damage is found, you must save all packag- ing material and contact the freight carrier. Failure to contact the carrier within 48 hours of receipt may void your claim. -
Page 8: Selecting A Location
Alta 1522 Drop-in Dispenser Installation Instructions SELECTING A LOCATION The dispenser must be located near a permanent drain to route and connect the unit ice bin and drip tray drain hoses. All drains and connections to such drains must meet local plumbing codes. -
Page 9: Preparing For Operation
ROGRAMMING THE ALVES The valves in the Alta 1522 drop-in dispenser may be programmed for dispensing either carbonated water or plain water. Before operating the unit, the installer must enter programming mode to select any plain water valve settings required. -
Page 10: Cleaning And Maintenance Instructions
Alta 1522 Drop-in Dispenser Installation Instructions CLEANING AND MAINTENANCE INSTRUCTIONS WARNING: Disconnect power to the unit before servicing. Follow all lock out/tag out procedures established by the user. Verify all power is off to the unit before performing any work. -
Page 11: Sanitizing Product Cold Plate Tubing
Alta 1522 Drop-in Dispenser Installation Instructions ANITIZING RODUCT LATE UBING Preparing the Cleaning Solution: Using a clean tank (tank system) or a five-gallon container (bag-in-box system), prepare a full tank or container of liquid dishwasher detergent by using 70° F (21° C) to 100° F (38° C) potable water and 0.5 oz. -
Page 12: Water Flush The System
Alta 1522 Drop-in Dispenser Installation Instructions 7. Allow sanitizing solution to remain in the syrup systems for not less than 10 or no more than 15 minutes (max.). Water Flush the System 1. Fill a five-gallon container with potable water. -
Page 13: Sanitize Syrup Lines, Bib System
Alta 1522 Drop-in Dispenser Installation Instructions Sanitize syrup lines, BIB System 1. Remove all the quick disconnects from all the BIB containers. 2. Fill a suitable pail or bucket with soap solution. 3. Submerge all disconnects (gas and liquid) in the soap solution and then clean them using a nylon bristle brush. - Page 14 Alta 1522 Drop-in Dispenser Installation Instructions DJUST ATER YRUP ATIO Separator Water-To-Syrup Ratio Cup Figure 1. Water to Syrup Ratio Adjustment 1. Remove valve cover and install syrup separator over the diffuser and through the nozzle. 2. Hold cup under valve and dispense beverage for a specific time (i.e. 2 seconds).
-
Page 15: Troubleshooting
Alta 1522 Drop-in Dispenser Installation Instructions TROUBLESHOOTING WARNING: Only trained and certified electrical, plumbing and refrigeration technicians should service this unit. All wiring and plumbing must conform to national and local codes. Failure to comply could result in serious injury, death or equipment damage. - Page 16 Alta 1522 Drop-in Dispenser Installation Instructions DISPENSED PRODUCT COMES C. Carbonator CO regulator pres- C. Reduce carbonator CO regulator sure too high for existing water OUT OF DISPENSING VALVE pressure setting. Reference man- conditions or temperature. CLEAR BUT FOAMS IN CUP OR ual provided with carbonator.
- Page 17 Alta 1522 Drop-in Dispenser Installation Instructions WIRING AND PLUMBING DIAGRAMS Figure 2. Alta 1522 Drop-in Dispenser Wiring Diagram © 2013-2014, Cornelius Inc. - 13 - Publication Number: 741200028INS...
- Page 18 Alta 1522 Drop-in Dispenser Installation Instructions Figure 3. Alta 1522 Drop-in Dispenser Plumbing Diagram Publication Number: 741200028INS - 14 - © 2013-2014, Cornelius Inc.
- Page 20 IMI Cornelius Inc. www.cornelius.com...
