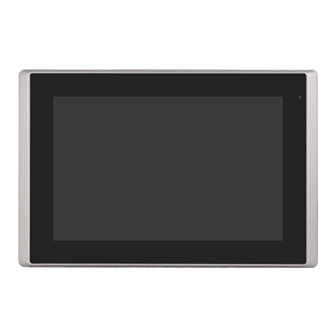

Aplex ARCHMI-8XX Series User Manual

7”, 8”, 10.1”, 12.1”, 15”, 15.6”, 17”, 18.5”, and 21.5” intel bay trail e3845/n2930, fanless industrial compact size panel pc
Hide thumbs Also See for ARCHMI-8XX Series:
Table of Contents

Advertisement

Quick Links

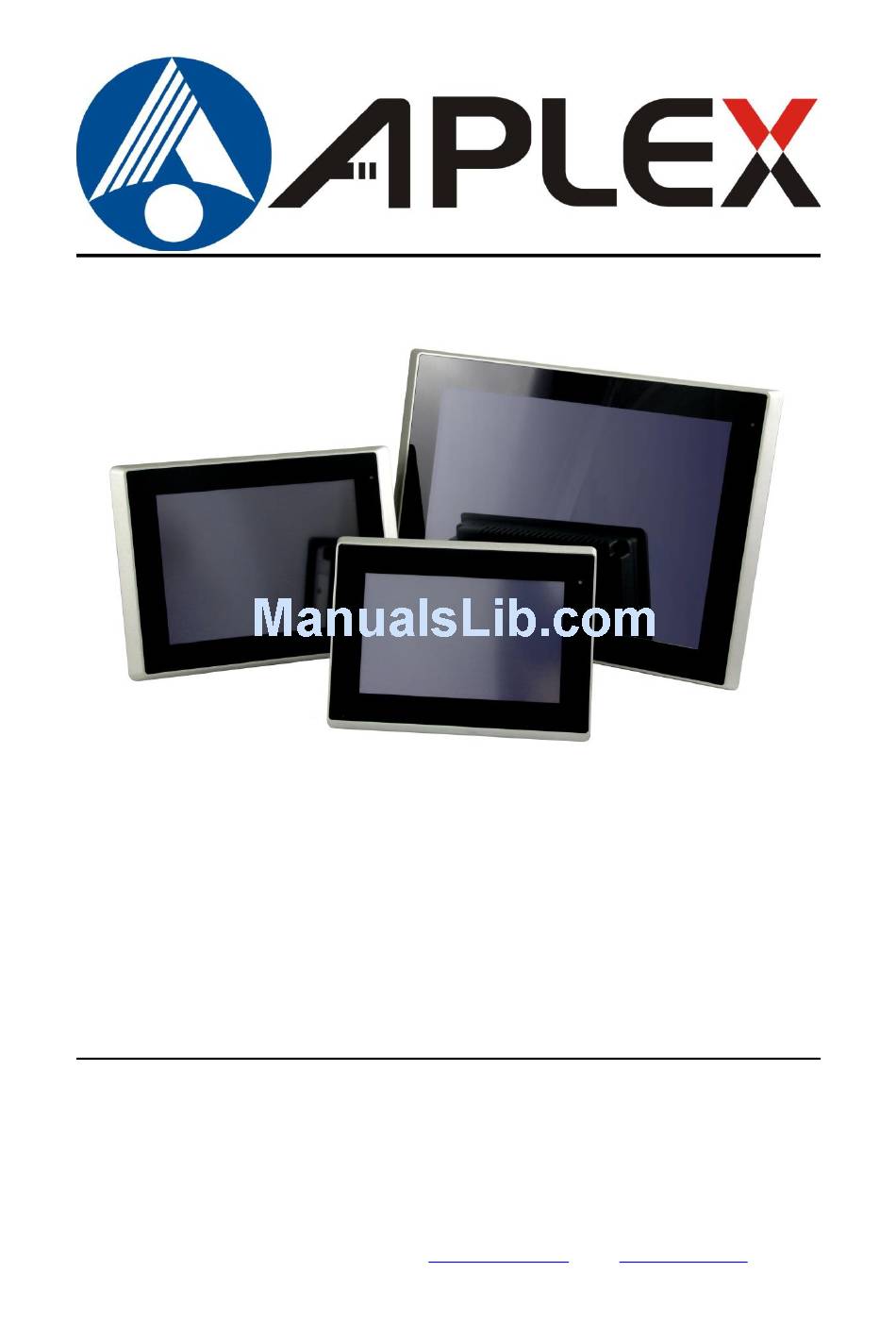

ARCHMI-8XX Series
7", 8", 10.1", 12.1", 15", 15.6", 17", 18.5", and 21.5" Intel Bay Trail E3845/N2930,
Fanless Industrial Compact Size Panel PC
User Manual
Release Date
Revision
Jul. 2015
V1.1
®2015 Aplex Technology, Inc.
All Rights Reserved.
Published in Taiwan
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail:
aplex@aplex.com.tw
URL:
www.aplextec.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARCHMI-8XX Series and is the answer not in the manual?

Questions and answers

Related Manuals for Aplex ARCHMI-8XX Series

Summary of Contents for Aplex ARCHMI-8XX Series

  • Page 1 Fanless Industrial Compact Size Panel PC User Manual Release Date Revision Jul. 2015 V1.1 ®2015 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail: aplex@aplex.com.tw...

  • Page 2: Revision History

    Revision History Reversion Date Description 2015/03/25 Official Version 2015/07/15 Modify Motherboard Description, add Mounting Description and BIOS OS Selection on P.67 ARCHMI-8XX Series User Manual...

  • Page 3: Warning!/Avertissement

    Risque de choc électrique - Ne pas faire fonctionner la machine avec son capot arrière enlevé. Des tensions dangereuses sont élevées à l'intérieur. ARCHMI-8XX Series User Manual...

  • Page 4: Caution/Precaution/Disclaimer

    This information in this document is subject to change without notice. In no event shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse of information in this document or in any related materials.

  • Page 5: Packing List

    Packing List Accessories (as ticked) included in this package are: □ Adaptor □ Driver & manual CD disc □ Other.___________________(please specify) ARCHMI-8XX Series User Manual...

  • Page 6: Safety Precautions/Consignes De Sécurité

    ◆ Couper l'alimentation électrique lorsque vous changez tous les périphériques matériels. Par exemple, lorsque vous connectez un cavalier ou d'installer des cartes, une forte augmentation de la puissance peut endommager les composants électroniques ou l'ensemble du système. ARCHMI-8XX Series User Manual...

  • Page 7: Table Of Contents

    3.2 BIOS Setup Utility……………………………………………………………….61 3.3 Main Settings……………………………………..………………………………62 3.4 Advanced Settings……………………………………………………………...63 3.5 Chipset Settings……………………………………….………………………...71 3.6 Security Settings…………………………………………….…………………..73 3.7 Boot Settings…..………………………………………….……………………..74 3.8 Save & Exit Settings……………………………………..…………………..75 Chapter 4 Installation of Drivers 4.1 Intel (R) AtomTM SoC Chipset ………..……...………….………………78 ARCHMI-8XX Series User Manual...
  • Page 8 Figure 1.9: Dimensions of ARCHMI-818(P)….……………………………………..15 Figure 1.10: Dimensions of ARCHMI-821(Resistive Touch)………………….15 Figure 1.11: Dimensions of ARCHMI-821(Projected Capacitive Touch).16 Figure 1.12: Front View of ARCHMI-8XX Series…………………………………..17 Figure 1.13: Rear View of ARCHMI-807/808……………………………………..…18 Figure 1.14: Rear View of ARCHMI-810………………………………………….….18 Figure 1.15: Rear View of ARCHMI-812………………………………………….….19 Figure 1.16: Rear View of ARCHMI-815………………………………………….….19...

  • Page 9: Getting Started

    2 x CAN bus via TB-528CAN2 ARCHMI-807 and 2 x USB 2.0 type A Via TB-528U2 ARCHMI-808) 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1xRS-232 DB-9 via TB-528C1U2P1 (TB-528C1U2 for ARCHMI-810) ARCHMI-8XX Series User Manual...
  • Page 10 10 to 90% @ 40°C, non- condensing Certification CE / FCC Class A Operating System Support OS Support Windows Embedded Compact 7, Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded 8 Standard, Windows 8.1 Windows Embedded 8.1 Industry ARCHMI-8XX Series User Manual...
  • Page 11 Backlight Lifetime 50,000 hrs 30,000 hrs 50,000 hrs 30,000 hrs Mounting VESA Mount 100 x 100 Dimensions(mm) 412 x 277.5 x 60.4 439 x 348 x 64.8 499.6 x 314.6 x 60 557 x 362 x 64.8 ARCHMI-8XX Series User Manual...

  • Page 12: Dimensions

    1.3 Dimensions Figure 1.1: Dimensions of ARCHMI-807(P) Figure 1.2: Dimensions of ARCHMI-808(P) ARCHMI-8XX Series User Manual...

  • Page 13: Figure 1.3: Dimensions Of Archmi-810(P)

    Figure 1.3: Dimensions of ARCHMI-810(P) Figure 1.4: Dimensions of ARCHMI-812(P) ARCHMI-8XX Series User Manual...

  • Page 14: Figure 1.5: Dimensions Of Archmi-815(P)

    Figure 1.5: Dimensions of ARCHMI-815(P) Figure 1.6: Dimensions of ARCHMI-816 (Resistive Touch) ARCHMI-8XX Series User Manual...

  • Page 15: Figure 1.7: Dimensions Of Archmi-816(Projected Capacitive Touch)

    Figure 1.7: Dimensions of ARCHMI-816P (Projected Capacitive Touch) Figure 1.8: Dimensions of ARCHMI-817(P) ARCHMI-8XX Series User Manual...

  • Page 16: Figure 1.9: Dimensions Of Archmi-818(P)

    Figure 1.9: Dimensions of ARCHMI-818(P) Figure 1.10: Dimensions of ARCHMI-821 (Resistive Touch) ARCHMI-8XX Series User Manual...
  • Page 17 Figure 1.11: Dimensions of ARCHMI-821P (Projected Capacitive Touch) ARCHMI-8XX Series User Manual...

  • Page 18: Brief Description Of Archmi-8Xx

    There are 7”, 8”, 10.1”, 12.1”, 15”, 15.6”, 17”, 18.5” and 21.5” Industrial Compact Size Panel PC in ARCHMI-8XX series, which comes with flat front panel touch screen and fanless design. It is powered by Intel Bay Trail E3845(1.91GHz) or N2930(1.83GHz) CPU built-in, 2GB DDR3L 1600 MHz (4GB is for option).

  • Page 19: Figure 1.13: Rear View Of Archmi-807/808

    Figure 1.13: Rear View of ARCHMI-807/808 Figure 1.14: Rear View of ARCHMI-810 ARCHMI-8XX Series User Manual...

  • Page 20: Figure 1.15: Rear View Of Archmi-812

    Figure 1.15: Rear View of ARCHMI-812 Figure 1.16: Rear View of ARCHMI-815 ARCHMI-8XX Series User Manual...

  • Page 21: Figure 1.17: Rear View Of Archmi-816

    Figure 1.17: Rear View of ARCHMI -816 Figure 1.18: Rear View of ARCHMI-817 ARCHMI-8XX Series User Manual...

  • Page 22: Figure 1.19: Rear View Of Archmi-818

    Figure 1.19: Rear View of ARCHMI-818 Figure 1.20: Rear View of ARCHMI-821 ARCHMI-8XX Series User Manual...

  • Page 23: Installation Of Hdd - 7"/8

    There are two screws to deal with when enclosing or removing the chassis. Gently remove two screws. Step 2 There is a SSD card in the bracket. Gently remove the screw, then carefully pull SSD card. Step 3 Take out SSD Card bracket. ARCHMI-8XX Series User Manual...
  • Page 24 Note: four screws are packed in the packing list. Step 5 There is a SD card hole in the side of the machine. You can replace SD card from there. Step 6 Gently screw the screws. ARCHMI-8XX Series User Manual...

  • Page 25: Installation Of Hdd - 10.1"/15.6"/18.5

    There are two screws to deal with when enclosing or removing the chassis. Gently remove two screws. Step 2 Take the storage cover beside the HMI. Step 3 You can put or remove HDD into the machine by pulling the HDD bracket. ARCHMI-8XX Series User Manual...

  • Page 26: Installation Of Hdd - 12.1"/15"/17"/21.5

    1.7 Installation of HDD – 12.1”/15”/17”/21.5” Step 1 There are 2 screws to deal with when enclosing or removing the chassis. Gently remove 2 screws. Step 2 You can put or remove HDD into the machine by pulling the HDD bracket. ARCHMI-8XX Series User Manual...
  • Page 27 You can remove HDD by unscrewing 4 screws in the HDD bracket. Note: 4 screws are packed in the packing package. Step 4 There is a SD hole in the side of machine. You can replace SD card from there ARCHMI-8XX Series User Manual...

  • Page 28: Vesa Mounting

    Figure 1.21: ARCHMI Series VESA Mounting 1.9 Panel Mounting There are four holes located along the four sides of the HMI. Insert the clamp from the four sides and tighten them with the nuts provided. Figure 1.22: ARCHMI Series Panel Mounting ARCHMI-8XX Series User Manual...

  • Page 29: Chapter 2 Hardware

    Up to 1920 x 1200 for HDMI Resolution Up to 1920 x 1200 for LVDS (PS8625) Up to 1920 x 1200 for CRT Dual Display HDMI + LVDS HDMI + CRT LVDS + CRT Super I/O ITE IT8518E ARCHMI-8XX Series User Manual...
  • Page 30 Keyboard /Mouse 1 x PS2 keyboard/mouse by box pin header (CN3) Expansion Bus 1 x mini-PCI-express slot 1 x PCI-express (CN3) Touch Ctrl 1 x Touch ctrl header for TCH1 (ITE8518E/COM6) (JP4 setting：RS232 or USB 2.0) ARCHMI-8XX Series User Manual...
  • Page 31 12V /0.70A (Intel Bay Trail N2930 processor with 4GB DDR3L DRAM) 12V /0.60A (Intel Bay Trail E3815 processor with 2GB DDR3L DRAM) EMI/EMS Meet CE/FCC class A 2 x CAN bus TB-528CAN2 1 x SIM Card Socket 1 x mini-PCI-express slot ARCHMI-8XX Series User Manual...

  • Page 32: Figure 2.1: Motherboard Dimensions

    (units :mm) Figure 2.1: Motherboard Dimensions ARCHMI-8XX Series User Manual...

  • Page 33: Jumpers And Connectors Location

    2.3 Jumpers and Connectors Location Figure 2.2: Jumpers and Connectors Location- Board Top Figure 2.3: Jumpers and Connectors Location- Board Bottom ARCHMI-8XX Series User Manual...

  • Page 34: Jumpers Setting And Connectors

    (Switch), ATX Power and Auto Power on jumper setting. S-422(Switch) Mode Pin6 (Off) ATX Power Pin6 (On) Auto Power on (Default) 5. BAT1: (1.25mm Pitch 1x2 Wafer Pin Header) 3.0V Li battery is embedded to provide power for CMOS. ARCHMI-8XX Series User Manual...
  • Page 35 Power on/off button, They are used to connect power switch button. The two pins are disconnected under normal condition. You may short them temporarily to realize system startup & shutdown or awaken the system from sleep state. ARCHMI-8XX Series User Manual...
  • Page 36 VGA hot plug setting for Windows XP: VGA1 (Pin Header) Function Pin4-Pin6 (Close) VGA Simulation Disabled Pin4-Pin6 (Open) VGA Simulation Enabled Use the 2.0mm jumper cap to close pin4 and pin6 13. HDMI1: (HDMI 19P Connector), High Definition Multimedia Interface connector. ARCHMI-8XX Series User Manual...
  • Page 37 1280*1024 (Default) SBC-7111-E3845-4G 800*480 (option) SBC-7111-N2930-2G 800*600 (option) SBC-7111-E3845-4G 1024*768 (option) SBC-7111-E3815-2G 1920*1080 (option) …… 16. INVT1: (2.0mm Pitch 1x6 wafer Pin Header), Backlight control connector for LVDS. Pin# Signal Name +DC12V +DC12V Ground Ground BKLT_EN_OUT BKLT_CTRL ARCHMI-8XX Series User Manual...
  • Page 38 (JP4 open) 5V_S5_USB 5V_S5_USB Power LED PWR_LED+ Ground Power LED 18. JP4: (2.0mm Pitch 2x2 wafer Pin Header), USB3(CN1) or Touch jumper setting. Function USB3 (CN1) Touch (TCH1) Close 3-4 (default) Open 3-4 (option) Open 1-2 (default) ARCHMI-8XX Series User Manual...
  • Page 39 RS232 (Default) OFF: Pin1, Pin2, Pin3, Pin4, Pin5 RS422 (option) ON: Pin1, Pin2, Pin3, Pin4, Pin5 RS485 (option) ON: Pin1, Pin2, Pin3, Pin4, Pin5 S-422 Mode Pin6 (Off) ATX Power Pin6 (On) Auto Power on (Default) ARCHMI-8XX Series User Manual...
  • Page 40 CTS (Clear To Send) JP1 select Setting (RI/5V/12V) BIOS Setup: Advanced/F81216SEC Super IO Configuration/Serial Port 1 Configuration 【RS-232】 RS422 (option) Pin# Signal Name 422_RX+ 422_RX- 422_TX- 422_TX+ Ground BIOS Setup: Advanced/F81216SEC Super IO Configuration/Serial Port 1 Configuration 【RS-422】 ARCHMI-8XX Series User Manual...
  • Page 41 Pin# Signal Name DCD# (Data Carrier Detect) RXD (Received Data) TXD (Transmit Data) DTR (Data Terminal Ready) Ground DSR (Data Set Ready) RTS (Request To Send) CTS (Clear To Send) JP2 select Setting (RI/5V/12V) ARCHMI-8XX Series User Manual...
  • Page 42 (2.0mm Pitch 2X6 Pin Header), Front Audio, An onboard Realtek ALC662-VD codec is used to provide high-quality audio I/O ports. Line Out can be connected to a headphone or amplifier. Line In is used for the connection of ARCHMI-8XX Series User Manual...
  • Page 43 RJ-45 Ethernet ports are provided. Used intel 82574L chipset, LINK LED (green) and ACTIVE LED (yellow) respectively located at the left-hand and right-hand side of the Ethernet port indicate the activity and transmission state of LAN. 37. BUZ1: Onboard buzzer. ARCHMI-8XX Series User Manual...
  • Page 44 Advanced/IT8518Super IO Configuration/Serial Port 1 Configuration【RS-422】 Advanced/IT8518Super IO Configuration/Serial Port 1 Configuration【RS-485】 39. EC_GPIO1: (2.0mm Pitch 1X10 Pin Header),For expand connector, it provides eight GPIO. Pin# Signal Name Ground EC_GPIO1 EC_GPIO2 EC_GPIO3 EC_GPIO4 EC_GPIO5 EC_GPIO6 EC_GPIO7 EC_GPIO8 3.3V ARCHMI-8XX Series User Manual...
  • Page 45 ICH_GPIO22 GPIO12 GPIO25 SOC_GPIO25 ICH_GPIO24 GPIO24 Ground Ground PCIE_TX0_DN PCIE_TX0_DP PCIE_RX0_DN PCIE_RX0_DP PCIE PCIE Ground Ground PCIE_REFCLK0_DN PCIE_REFCLK0_DP PCIE0_WAKE_N PLTRST_3P3_N SMBUS SMB_CLK_S0 SMB_DATA_S0 SMBUS PCIE PCIE_CLKREQ0_N Ground 3P3V_S5 PWRBTN_ON- Power Auto on 3P3V_S5 3P3V_S5 12V_S0 12V_S0 ARCHMI-8XX Series User Manual...
  • Page 46 30x30mm or 30x50.95mm. Signal Name Function support PCIe 1X USB2.0 (USB2) SMBus H1/H2: MPCIE1 SCREW HOLES, H2 for mini PCIE card (30mmx30mm) assemble. H1 for mini PCIE card (30mmx50.95mm) assemble. LED1： Mini PCIe devices LED Status. ARCHMI-8XX Series User Manual...
  • Page 47 (2.0mm Pitch 2x5 Pin Header), Front USB connector, it provides one USB port via a dedicated USB cable, speed up to 480Mb/s. Signal Name Pin# Pin# Signal Name 5V_USB23 5V_USB23 USB3_N USB2_N (option, NC) USB3_P USB2_P (option, NC) Ground Ground Ground ARCHMI-8XX Series User Manual...
  • Page 48 TXD (Transmit Data) DTR (Data Terminal Ready) Ground DSR (Data Set Ready) RTS (Request To Send) CTS (Clear To Send) JP5 Setting: Pin1-2: RI (Ring Indicator) (default) Pin3-4 : 5V Standby power (option) Pin5-6: 12V Standby power (option) ARCHMI-8XX Series User Manual...
  • Page 49 Pin5-6: 12V Standby power (option) COM_6（option）： (2.0mm Pitch 2X5 Pin Header), COM4 Port, up to one standard RS232 port are provided. They can be used directly via COM cable connection. Signal Name Pin# Pin# Signal Name ARCHMI-8XX Series User Manual...
  • Page 50 PS2： (2.0mm Pitch 1X6 Pin Wafer), PS/2 keyboard and mouse port, the port can be connected to PS/2 keyboard or mouse via a dedicated cable for direct used. Pin# Signal Name KBDATA MSDATA Ground KBCLK MSCLK ARCHMI-8XX Series User Manual...
  • Page 51 (Type DB9), serial port, standard DB9 serial port is provided to make a direct connection to serial devices. COM3 port is controlled by pins No.1~6 of JP5, select output Signal RI or 5V or 12v, for details, please refer to description of JP5. ARCHMI-8XX Series User Manual...
  • Page 52 COM4 port is controlled by pins No.1~6 of JP6, select output Signal RI or 5V or 12v, for details, please refer to description of JP6. Pin# Signal Name DCD# (Data Carrier Detect) RXD (Received Data) TXD (Transmit Data) ARCHMI-8XX Series User Manual...
  • Page 53 Signal Name Pin# Pin# Signal Name Ground JP6 Setting: RI/5V/12V 43. TB-528C1U2P1/TB-528C1U2（option）: SBC-7111 Riser Card, TB-528C1U2P1 CN3 connect to SBC-7111 CN3 pin Header. TB-528C1U2P1 Top： CN3： (1.27mm Pitch 2X30 Pin Header), connect to SBC-7111 CN3 pin Header. ARCHMI-8XX Series User Manual...
  • Page 54 (2.0mm Pitch 1X2 Pin Wafer). PS2： (2.0mm Pitch 1X6 Pin Wafer), PS/2 keyboard and mouse port, the port can be connected to PS/2 keyboard or mouse via a dedicated cable for direct used. Pin# Signal Name KBDATA MSDATA ARCHMI-8XX Series User Manual...
  • Page 55 USB2_N USB3_P USB2_P Ground Ground Ground Note: Before connection, make sure that pinout of the USB Cable is in accordance with that of the said tables. Any inconformity may cause system down and even hardware damages. ARCHMI-8XX Series User Manual...
  • Page 56 (2.0mm Pitch 2x3 Pin Header), COM_6 setting jumper, pin 1~6 are used to select signal out of pin 9 of COM_6 port. JP6 Pin# Function Close 1-2 RI (Ring Indicator) (default) Close 3-4 COM_6 Pin9=+5V (option) Close 5-6 COM_6 Pin9=+12V (option) ARCHMI-8XX Series User Manual...
  • Page 57 & shutdown or awaken the system from sleep state. PWR LED: POWER LED status. Model TB-528C1U2P1 TB-528C1U2 44. TB-528CAN2 R0.10（option）: SBC-7111 Riser Card, TB-528CAN2 CN3 connect to SBC-7111 CN3 pin Header. It provides two CAN-bus Interface. TB-528CAN2 Top： ARCHMI-8XX Series User Manual...
  • Page 58 PS/2 keyboard or mouse via a dedicated cable for direct used. Pin# Signal Name KBDATA MSDATA Ground KBCLK MSCLK USB_IN（option）： (2.0mm Pitch 2x5 Pin Header), Front USB connector, it provides two USB port via a dedicated USB cable, speed up to 480Mb/s. ARCHMI-8XX Series User Manual...
  • Page 59 RI (Ring Indicator) (default) Close 3-4 COM4 Pin9=+5V (option) Close 5-6 COM4 Pin9=+12V (option) COM4： (2.0mm Pitch 2X5 Pin Header), COM4 Port, up to one standard RS232 port are provided. They can be used directly via COM cable connection. ARCHMI-8XX Series User Manual...
  • Page 60 SOC-GPIO22 SOC-GPIO23 SOC-GPIO25 SOC-GPIO24 JTAG： (2.0mm Pitch 2x5 Pin Header), Reserve. JP1： (2.0mm Pitch 1x2 Pin Header), Reserve. JP2： (2.0mm Pitch 1x2 Pin Header), Reserve. CAN1/CAN2： (3.5mm Pitch 1x10 Pin connector), it provides two CAN-bus Interface. ARCHMI-8XX Series User Manual...
  • Page 61 SBC-7111 Riser Card, TB-528U2 CN3 connect to SBC-7111 CN3 pin Header. TB-528U2 Top： CN3： (1.27mm Pitch 2X30 Pin Header), connect to SBC-7111 CN3 pin Header. USB23： (Double stack USB type A), Rear USB connector, it provides up to 2 USB2.0 ports, speed up to 480Mb/s. ARCHMI-8XX Series User Manual...

  • Page 62: Bios Setup

    BIOS, CPU, memory, and storage devices. 3.2 BIOS Setup Utility Press [Delete] key to enter BIOS Setup utility during POST, and then a main menu containing system summary information will appear. ARCHMI-8XX Series User Manual...

  • Page 63: Main Settings

    3.3 Main Settings System Time: Set the system time, the time format is: Hour : 0 to 23 Minute : 0 to 59 ARCHMI-8XX Series User Manual...

  • Page 64: Advanced Settings

    Day: Note that the ‘Day’ automatically changes when you set the date. Month: 01 to 12 Date: 01 to 31 Year: 1998 to 2099 3.4 Advanced Settings 3.4.1 ACPI Settings Enable ACPI Auto Conf: [Disabled] [Enabled] Enable Hibernation: ARCHMI-8XX Series User Manual...
  • Page 65 Change Settings [Auto] 3.4.3 IT8518 Super IO Configuration Super IO chip IT8518/IT8519 Serial Port 1 Configuration Backlight PWM Controller（COM5）： [RS-485] [RS-422] Serial Port 2 Configuration (COM6) Change Settings [Auto] 3.4.4 Intel（R）Smart Connect Technology ISCT Support [Disabled] [Enabled] ARCHMI-8XX Series User Manual...
  • Page 66 Intel HT-X Technology Supported L1 Data Cache 24KB x 4 L1 Code Cache 32KB x 4 L2 Cache 1024KB x 2 L2 Cache Not Present CPU Thermal configuration CPU Speed 1918 MHz 64-bit Supported Hyper-Threading: [Enabled] [Disabled] ARCHMI-8XX Series User Manual...
  • Page 67 3.4.7 PPM Configuration CPU C State Report [Enabled] [Disabled] Max CPU C-state [C7] [C6] [C1] SOix [Disabled] [Enabled] 3.4.8 Thermal Configuration Parameters 3.4.9 IDE Configuration Serial-ATA(SATA) [Enabled] [Disabled] SATA Test Mode [Disabled] [Enabled] SATA Speed Support [Gen2] [Gen1] ARCHMI-8XX Series User Manual...
  • Page 68 SATA Mode [AHCI Mode] [IDE Mode] Serial-ATA Port 0 [Enabled] [Disabled] SATA Port0 Hotplug [Disabled] [Enabled] Serial-ATA Port 1 [Enabled] [Disabled] SATA Port1 Hotplug [Disabled] [Enabled] SATA Port0 Not Present SATA Port1 Not Present 3.4.10 Miscellaneous Configuration ARCHMI-8XX Series User Manual...
  • Page 69 MIPI HSI Support [Disabled] LPSS Configuration LPSS DMA #1 Support [Enabled] LPSS DMA #2 Support [Enabled] LPSS I2C #1 Support [Enabled] LPSS I2C #2 Support [Enabled] LPSS I2C #3 Support [Enabled] LPSS I2C #4 Support [Enabled] ARCHMI-8XX Series User Manual...
  • Page 70 GateA20 Active [Upon Request] [Always] Option ROM Messages [Force BIOS] [Keep Current] Boot option filter [UEFI and Legacy] [Legacy only] [UEFI only] Network [UEFI] [Do not launch] [Legacy] Storage [UEFI] [Do not launch] [Legacy] Video [Legacy] [UEFI] ARCHMI-8XX Series User Manual...
  • Page 71 USB Mass Storage Driver Support [Enabled] [Disabled] USB hardware delays and time-outs： USB transfer time-out: [20 sec] [10 sec] [5 sec] [1 sec] Device reset time-out: [20 sec] [10 sec] [30 sec] [40 sec] Device power-up delay [Auto] [Manual] ARCHMI-8XX Series User Manual...

  • Page 72: Chipset Settings

    Force Lid Status [On] [Off] [Auto] ALS Support [Disabled] IGD Flat Panel [Auto] Pannel Scaling [Auto] ►Memory Frequency and Timing ►Graphics Power Management Control Memory Information Total Memory 4096 MB(DDR3L) Memory Slot0 4096 MB(DDR3L) DIMM#1 Not Present ARCHMI-8XX Series User Manual...
  • Page 73 [Smart Auto] USB2 Link Power Management [Enabled] USB 2.0(EHCI) Support [Enabled] USB EHCI debug [Disabled] USB Per Port Control [Enabled] USB Port 0 [Enabled] USB Port 1 [Enabled] USB Port 2 [Enabled] USB Port 3 [Enabled] ARCHMI-8XX Series User Manual...

  • Page 74: Security Settings

    You may press key to abandon password entry operation. To clear the password, just press Enter key when password input window pops up. A confirmation message will be shown on the screen as to whether the password ARCHMI-8XX Series User Manual...

  • Page 75: Boot Settings

    System, you will be requested to enter the password before system boot and when entering BIOS setup; if Security Option is set to Setup, you will be requested for password for entering BIOS setup. 3.7 Boot Settings Setup Prompt Timeout Bootup Numlock State [On] [off] Quiet Boot [Disabled] ARCHMI-8XX Series User Manual...

  • Page 76: Save & Exit Settings

    Sets the system boot order Hard Drive BBS Priorities [SATA PM:*** … ] Boot Option #1 SATA PM:***… ****** Disabled 3.8 Save & Exit Settings Save Changes and Exit Save & Exit Setup save Configuration and exit ? [Yes] [No] ARCHMI-8XX Series User Manual...
  • Page 77 Restore User Defaults Restore User Defaults? [Yes] [No] Launch EFI Shell from filesystem device WARNING Not Found [ok] Reset System with ME disable ModeMEUD000 ME will runs into the temporary disable mode, Ignore if ME Ignition FWMEUD001. ARCHMI-8XX Series User Manual...

  • Page 78: Chapter 4 Installation Of Drivers

    Intel chipset driver, VGA driver, LAN drivers, Audio driver, USB 3.0 Driver Installation instructions are given below. Important Note: After installing your Windows operating system, you must install first the Intel Chipset Software Installation Utility before proceeding with the installation of drivers. ARCHMI-8XX Series User Manual...

  • Page 79: Intel(R) Atomtm Soc Chipset

    4.1 Intel(R) AtomTM SoC Chipset To install the Intel chipset driver, please follow the steps below. Step 1. Select Intel (R) AtomTM SoC Chipset from the list Step 2. Click Next to setup program. ARCHMI-8XX Series User Manual...
  • Page 80 Step 3. Read the license agreement. Click Yes to accept all of the terms of the license agreement. Step 4. Click Next to continue. ARCHMI-8XX Series User Manual...
  • Page 81 Step 5. Click Next. Step 6. Select Yes, I want to restart this computer now. Click Finish, then remove any installation media from the drives. ARCHMI-8XX Series User Manual...

  • Page 82: Intel(R) Vga Chipset

    4.2 Intel(R) VGA Chipset To install the VGA drivers, follow the steps below to proceed with the installation. Step 1.Select Intel(R) VGA Chipset Step 2. Click Automatically run WinSAT and enable the Windows Aero desktop theme(if supported). Click Next. ARCHMI-8XX Series User Manual...
  • Page 83 Step 3. Read license agreement. Click Yes. Step 4. Click Next. ARCHMI-8XX Series User Manual...
  • Page 84 Step 5. Click Install. Step 6. Click Install. ARCHMI-8XX Series User Manual...
  • Page 85 Step 7. Click Next. Step 8. Click Yes, I want to restart this computer now. Then click Finish. ARCHMI-8XX Series User Manual...

  • Page 86: Intel(R) Lan Driver

    4.3 Intel(R) LAN Driver To install the Intel (R) LAN driver, please follow the steps below. Step 1. Select Intel(R) 82574L LAN Driver from the list. Step 2. . Click Next. ARCHMI-8XX Series User Manual...
  • Page 87 Step 3. Read license agreement. Click I accept the terms in the license agreement. Click Next. Step 4. Click Next to continue. ARCHMI-8XX Series User Manual...
  • Page 88 Step 5. Click Install to begin the installation. Step 6. Click Finish to exit the wizard. ARCHMI-8XX Series User Manual...

  • Page 89: Realtek Alc662 Hd Audio Driver Installation

    4.4 Realtek ALC662 HD Audio Driver Installation To install the Realtek ALC662 HD Audio Driver, please follow the steps below. Step 1. Select Realtek AL662 HD Audio Driver from the list Step 2. Click Next to continue. ARCHMI-8XX Series User Manual...
  • Page 90 Step 3. Click Yes, I want to restart my computer now. Click Finish to complete the installation. ARCHMI-8XX Series User Manual...

  • Page 91: Usb 3.0 Driver

    4.5 USB 3.0 Driver To install the USB 3.0 Driver, please follow the steps below. Step 1. Select USB 3.0 Driver from the list Step 2. Click Next to continue. ARCHMI-8XX Series User Manual...
  • Page 92 Step 3. Read the license agreement. Then click Yes to continue. Step 4. Click Next to continue. ARCHMI-8XX Series User Manual...
  • Page 93 Step 5. Click Next to continue. Step 6. Select Yes, I want to restart this computer now. Then click Finish to complete the installation. ARCHMI-8XX Series User Manual...

  • Page 94: Chapter 5 Touch Screen Installation

    If you have an older version of the PenMount Windows WIN7 driver installed in your system, please remove it first. Follow the steps below to install the PenMount DMC6000 Windows WIN7 driver. Step 1. Insert the product CD, the screen below would appear. Click Touch Panel Driver. ARCHMI-8XX Series User Manual...
  • Page 95 Step 2. Select Resistive Touch. Step 3. Click Next to continue. ARCHMI-8XX Series User Manual...
  • Page 96 Step 4. Read the license agreement. Click I Agree to agree the license agreement. Step 5. Choose the folder in which to install PenMount Windows Universal Driver. Click Install to start the installation. ARCHMI-8XX Series User Manual...
  • Page 97 Step 6. Wait for installation. Then click Next to continue. Step 7. Click Continue Anyway. ARCHMI-8XX Series User Manual...
  • Page 98 Step 8. Click Finish to complete installation. 5.1.2 Installing Software (Projected Capacitive) Step 1. Insert the product CD, the screen below would appear. Click touch panel driver. ARCHMI-8XX Series User Manual...
  • Page 99 Step 2. Select Projected Capacitive. Step 3. Click Next to continue. ARCHMI-8XX Series User Manual...
  • Page 100 Step 4. Select I accept the terms of the license agreement. Click Next. Step 5. Click Install RS232 interface driver. ARCHMI-8XX Series User Manual...
  • Page 101 Step 6. Select None. Click Next. Step 7. Click OK. Step 8. Click Support Muti-Monitor System. Click Next. ARCHMI-8XX Series User Manual...
  • Page 102 Step 9. Go to C:\Program Files\eGalaxTouch. Click Next. Step 10. Click Next. ARCHMI-8XX Series User Manual...
  • Page 103 Step 11. Click Create a eGalaxTouch Utility shortcut on desktop. Click Next. Step 12. Wait for installation. Step 13. Click Yes to do 4 point calibration. ARCHMI-8XX Series User Manual...

  • Page 104: Software Functions

    In this window, you can find out that how many devices be detected on your system. Calibrate This function offers two ways to calibrate your touch screen. ‘Standard Calibration’ adjusts most touch screens. ‘Advanced Calibration’ adjusts aging touch screens. ARCHMI-8XX Series User Manual...
  • Page 105 Click this button and touch the red squares in sequence with a stylus. To skip, press ESC’. Step 1. Please select a device then click “Configure”. You can also double click the device too. ARCHMI-8XX Series User Manual...
  • Page 106 Step 2.Click “Standard Calibration” to start calibration procedure NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Please follow the step as below: ARCHMI-8XX Series User Manual...
  • Page 107 Step 3.Come back to “PenMount Control Panel” and select Tools then click Advanced Calibration. Step 4. Select Device to calibrate, then you can start to do Advanced Calibration. NOTE: Recommend to use a stylus during Advanced Calibration for greater accuracy. ARCHMI-8XX Series User Manual...
  • Page 108 Beep Frequency – modifies sound frequency Beep Duration – modifies sound duration Cursor Stabilizer Enable the function support to prevent cursor shake. Use press and You can set the time out and area for you need. hold as right click ARCHMI-8XX Series User Manual...
  • Page 109 About This panel displays information about the PenMount controller and driver version. ARCHMI-8XX Series User Manual...
  • Page 110 Please note once you turn on this function the rotating function is disabled. Enable the multiple display function as follows: 1. Check the Enable Multiple Monitor Support box; then click Map Touch Screens to assign touch controllers to displays. ARCHMI-8XX Series User Manual...
  • Page 111 4. Touching all screens completes the mapping and the desktop reappears on the monitors. 5. Select a display and execute the “Calibration” function. A message to start calibration appears. Click OK. ARCHMI-8XX Series User Manual...
  • Page 112 This panel displays information about the PenMount controller and this driver version. PenMount Monitor Menu Icon The PenMount monitor icon (PM) appears in the menu bar of Windows XP/2003/Vista/WIN7 system when you turn on PenMount Monitor in PenMount Utilities. ARCHMI-8XX Series User Manual...
  • Page 113 2. Choose the rotate function (0°, 90°, 180°, 270°) in the 3rd party software. The calibration screen appears automatically. Touch this point and rotation is mapped. NOTE: The Rotate function is disabled if you use Monitor Mapping ARCHMI-8XX Series User Manual...
  • Page 114 5.2.2 Software Functions(Projected Capacitive) General In this window, you can see there is USB Controller. Click OK to continue. Monitor Mapping to adjust touch panel to search for device ARCHMI-8XX Series User Manual...
  • Page 115 Beep On Touch Beep On Release Beep From System Beep Beep From Sound Card Linearization Style 9 points 25 points Double Click Time Shorter Longer Double Click Area Smaller Bigger Normal mode Simulate the mouse mode ARCHMI-8XX Series User Manual...
  • Page 116 Option Function Enable Constant Touch Enable Auto Right Click Enable Touch Enable Cursor Stabilization Constant Touch Area Auto Right Click Time ARCHMI-8XX Series User Manual...
  • Page 117 Do 4 points alignment to match display. Clear and Calibrate Clear linearization parameter and do 4 points alignment. Linearization Do 9 points linearization for better touchscreen linearity. Draw Test Do draw test to verify the touch accuracy. ARCHMI-8XX Series User Manual...
  • Page 118 Display In this window, it shows the mode of display. Enable Multiple Monitors. Map to main display if system has only one display monitor Full Screen Lower Screen Left Screen Upper Screen Right Screen ARCHMI-8XX Series User Manual...
  • Page 119 Other Other mode of display. Quarter1~4 and Customized area. Active Area Drag active area to enable Active Area Function. ARCHMI-8XX Series User Manual...
  • Page 120 Hardware Saturn Hardware Configuration ARCHMI-8XX Series User Manual...
  • Page 121 About To display information about eGalaxTouch and its version. ARCHMI-8XX Series User Manual...
