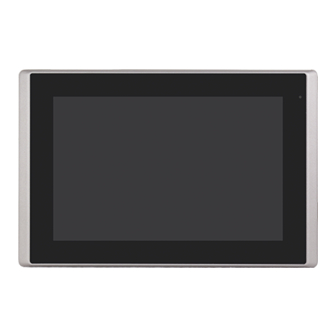

Aplex ARCHMI-8XX series User Manual
  1. Manuals
  2. Brands
  3. Aplex Manuals
  4. Touch Panel
  5. ARCHMI-8XX Series
  6. User manual

Aplex ARCHMI-8XX series User Manual

7", 8", 10,1 ", 12,1", 15", 15,6" 17", 18,5", 21,5" intel atom e3845/celeron n2930 fanless industrial compact size panel pc
Hide thumbs Also See for ARCHMI-8XX series:
Table of Contents

Advertisement

Quick Links

See also: User Manual
ARCHMI-8XX Series
7", 8", 10.1", 12.1", 15", 15.6", 17", 18.5", and 21.5" Intel Atom E3845/Celeron N2930,
Fanless Industrial Compact Size Panel PC
User Manual
Release Date
Revision
Apr. 2016
V1.5
®2016 Aplex Technology, Inc.
All Rights Reserved.
Published in Taiwan
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
Tel: 886-2-82262881 Fax: 886-2-82262883 URL:
www.aplextec.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARCHMI-8XX series and is the answer not in the manual?

Questions and answers

Related Manuals for Aplex ARCHMI-8XX series

Summary of Contents for Aplex ARCHMI-8XX series

  • Page 1 Fanless Industrial Compact Size Panel PC User Manual Release Date Revision Apr. 2016 V1.5 ®2016 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Tel: 886-2-82262881 Fax: 886-2-82262883 URL:...

  • Page 2: Revision History

    Modify motherboard spec. in p. 28~35, 37~38, 41~44 2016/02/26 Modify OS Support Spec. 2016/04/19 Modify memory Spec.: Remove 2GB memory, and change 4GB memory from option to default. Add warning words about UL Certificate. ARCHMI-8XX Series User Manual...

  • Page 3: Warning!/Avertissement

    Risque de choc électrique - Ne pas faire fonctionner la machine avec son capot arrière enlevé. Des tensions dangereuses sont élevées à l'intérieur. ARCHMI-8XX Series User Manual...

  • Page 4: Caution/Precaution/Disclaimer

    This information in this document is subject to change without notice. In no event shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse of information in this document or in any related materials.

  • Page 5: Packing List

    Packing List Accessories (as ticked) included in this package are: □ Adaptor □ Driver & manual CD disc □ Other.___________________(please specify) ARCHMI-8XX Series User Manual...

  • Page 6: Safety Precautions/Consignes De Sécurité

    ◆ Couper l'alimentation électrique lorsque vous changez tous les périphériques matériels. Par exemple, lorsque vous connectez un cavalier ou d'installer des cartes, une forte augmentation de la puissance peut endommager les composants électroniques ou l'ensemble du système. ARCHMI-8XX Series User Manual...

  • Page 7: Table Of Contents

    3.2 BIOS Setup Utility……………………………………………………………….46 3.3 Main Settings……………………………………..………………………………47 3.4 Advanced Settings……………………………………………………………...48 3.5 Chipset Settings……………………………………….………………………...56 3.6 Security Settings…………………………………………….…………………..58 3.7 Boot Settings…..………………………………………….……………………..59 3.8 Save & Exit Settings……………………………………..…………………..60 Chapter 4 Installation of Drivers 4.1 Intel (R) AtomTM SoC Chipset ………..……...………….………………63 ARCHMI-8XX Series User Manual...
  • Page 8 Figure 1.9: Dimensions of ARCHMI-818(P)….……………………………………..15 Figure 1.10: Dimensions of ARCHMI-821(Resistive Touch)………………….15 Figure 1.11: Dimensions of ARCHMI-821(Projected Capacitive Touch).16 Figure 1.12: Front View of ARCHMI-8XX Series…………………………………..17 Figure 1.13: Rear View of ARCHMI-807/808……………………………………..…18 Figure 1.14: Rear View of ARCHMI-810………………………………………….….18 Figure 1.15: Rear View of ARCHMI-812………………………………………….….19 Figure 1.16: Rear View of ARCHMI-815………………………………………….….19...

  • Page 9: Getting Started

    2 x USB 2.0 type A Via TB-528U2 ARCHMI-808) 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1xRS-232 DB-9 + 1 x Power button via TB-528C1U2P1 (TB-528C1U2 for ARCHMI-810) UPS Battery 21W/10.8W/1.95Ah(3S1P) ARCHMI-8XX Series User Manual...
  • Page 10 CE / FCC Class A / UL Operating System Support OS Support Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 7 Pro(FES), Windows 7 Ultimate(FES), Windows Embedded 8 Standard, Windows Embedded 8.1 Industry Pro, Windows 10 IoT Enterprise 2015LTSB ARCHMI-8XX Series User Manual...
  • Page 11 VESA Mount 100 x 100 Dimensions(mm) 412 x 277.5 x 60.4 439 x 348 x 64.8 499.6 x 314.6 x 59.9 557 x 362 x 64.8 Net Weight 4.8 Kg 5.1 Kg 5.9 Kg 7.8 Kg ARCHMI-8XX Series User Manual...

  • Page 12: Dimensions

    1.3 Dimensions Figure 1.1: Dimensions of ARCHMI-807(P) Figure 1.2: Dimensions of ARCHMI-808(P) ARCHMI-8XX Series User Manual...

  • Page 13: Figure 1.3: Dimensions Of Archmi-810(P)

    Figure 1.3: Dimensions of ARCHMI-810(P) Figure 1.4: Dimensions of ARCHMI-812(P) ARCHMI-8XX Series User Manual...

  • Page 14: Figure 1.5: Dimensions Of Archmi-815(P)

    Figure 1.5: Dimensions of ARCHMI-815(P) Figure 1.6: Dimensions of ARCHMI-816 (Resistive Touch) ARCHMI-8XX Series User Manual...

  • Page 15: Figure 1.7: Dimensions Of Archmi-816(Projected Capacitive Touch)

    Figure 1.7: Dimensions of ARCHMI-816P (Projected Capacitive Touch) Figure 1.8: Dimensions of ARCHMI-817(P) ARCHMI-8XX Series User Manual...

  • Page 16: Figure 1.9: Dimensions Of Archmi-818(P)

    Figure 1.9: Dimensions of ARCHMI-818(P) Figure 1.10: Dimensions of ARCHMI-821 (Resistive Touch) ARCHMI-8XX Series User Manual...
  • Page 17 Figure 1.11: Dimensions of ARCHMI-821P (Projected Capacitive Touch) ARCHMI-8XX Series User Manual...

  • Page 18: Brief Description Of Archmi-8Xx

    1.4 Brief Description of ARCHMI-8XX There are 7”, 8”, 10.1”, 12.1”, 15”, 15.6”, 17”, 18.5” and 21.5” Industrial Compact Size Panel PC in ARCHMI-8XX series, which comes with flat front panel touch screen and fanless design. It is powered by Intel Atom E3845(1.91GHz) or Celeron N2930(1.83GHz) CPU built-in, 4GB DDR3L 1600MHz (8GB is for option).

  • Page 19: Figure 1.13: Rear View Of Archmi-807/808

    Figure 1.13: Rear View of ARCHMI-807/808 Figure 1.14: Rear View of ARCHMI-810 ARCHMI-8XX Series User Manual...

  • Page 20: Figure 1.15: Rear View Of Archmi-812

    Figure 1.15: Rear View of ARCHMI-812 Figure 1.16: Rear View of ARCHMI-815 ARCHMI-8XX Series User Manual...

  • Page 21: Figure 1.17: Rear View Of Archmi-816

    Figure 1.17: Rear View of ARCHMI -816 Figure 1.18: Rear View of ARCHMI-817 ARCHMI-8XX Series User Manual...

  • Page 22: Figure 1.19: Rear View Of Archmi-818

    Figure 1.19: Rear View of ARCHMI-818 Figure 1.20: Rear View of ARCHMI-821 ARCHMI-8XX Series User Manual...

  • Page 23: Installation Of Hdd - 7"/8

    There are two screws to deal with when enclosing or removing the chassis. Gently remove two screws. Step 2 There is a SSD card in the bracket. Gently remove the screw, then carefully pull SSD card. Step 3 Take out SSD Card bracket. ARCHMI-8XX Series User Manual...
  • Page 24 Note: four screws are packed in the packing list. Step 5 There is a SD card hole in the side of the machine. You can replace SD card from there. Step 6 Gently screw the screws. ARCHMI-8XX Series User Manual...

  • Page 25: Installation Of Hdd - 10.1"/15.6"/18.5

    There are two screws to deal with when enclosing or removing the chassis. Gently remove two screws. Step 2 Take the storage cover beside the HMI. Step 3 You can put or remove HDD into the machine by pulling the HDD bracket. ARCHMI-8XX Series User Manual...

  • Page 26: Installation Of Hdd - 12.1"/15"/17"/21.5

    1.7 Installation of HDD – 12.1”/15”/17”/21.5” Step 1 There are 2 screws to deal with when enclosing or removing the chassis. Gently remove 2 screws. Step 2 You can put or remove HDD into the machine by pulling the HDD bracket. ARCHMI-8XX Series User Manual...
  • Page 27 You can remove HDD by unscrewing 4 screws in the HDD bracket. Note: 4 screws are packed in the packing package. Step 4 There is a SD hole in the side of machine. You can replace SD card from there ARCHMI-8XX Series User Manual...

  • Page 28: Vesa Mounting

    Figure 1.21: ARCHMI Series VESA Mounting 1.9 Panel Mounting There are four holes located along the four sides of the HMI. Insert the clamp from the four sides and tighten them with the nuts provided. Figure 1.22: ARCHMI Series Panel Mounting ARCHMI-8XX Series User Manual...

  • Page 29: Chapter 2 Hardware

    1 x LVDS (18/24-bit dual LVDS) 1 x CRT Port Support Up to 1920 x 1200 for HDMI Resolution Up to 1920 x 1200 for LVDS (PS8625) Up to 1920 x 1200 for CRT Dual Display HDMI + LVDS ARCHMI-8XX Series User Manual...
  • Page 30 Battery Support CR2477 Li battery by 2-pin header (BAT1/CMOS) Audio Support Audio via Realtek ALC662-VD HD audio codec Support Line-in, Line-out, MIC by 2x6-pin header Keyboard /Mouse 1 x PS2 keyboard/mouse by box pin header (CN3) ARCHMI-8XX Series User Manual...
  • Page 31 12V /0.60A (Intel Atom E3815 processor with 2GB DDR3L DRAM) Power Consumption 12V /0.70A (Intel Celeron N2930 processor with 4GB DDR3L DRAM) 12V /0.55A (Intel Celeron N2807 processor with 2GB DDR3L DRAM) EMI/EMS Meet CE/FCC class A ARCHMI-8XX Series User Manual...

  • Page 32: Figure 2.1: Motherboard Dimensions

    (units :mm) Figure 2.1: Motherboard Dimensions ARCHMI-8XX Series User Manual...

  • Page 33: Jumpers And Connectors Location

    2.3 Jumpers and Connectors Location Figure 2.2: Jumpers and Connectors Location- Board Top Figure 2.3: Jumpers and Connectors Location- Board Bottom ARCHMI-8XX Series User Manual...

  • Page 34: Jumpers Setting And Connectors

    Heat Sink assemble. 3. U3/U4/U5/U6/U8/U9/U10/U11: (FBGA96), Onboard DDR3L Memory. Model Memory SBC-7111-E3845-2G SBC-7111-N2930-2G 2GB (option) SBC-7111-N2930P-CN3V-2G 2GB (option) SBC-7111-E3815-2G 2GB (option) SBC-7111-N2807-2G 2GB (option) SBC-7111-E3845-4G 4GB (option) SBC-7111-N2930-4G 4GB (option) SBC-7111-E3845-8G 8GB (option) SBC-7111-N2930-8G 8GB (option) ARCHMI-8XX Series User Manual...
  • Page 35 Model DC_IN1 SBC-7111-E3845-xG 180°Connector SBC-7111-N2930-xG 180°Connector SBC-7111-E3815-xG 180°Connector SBC-7111-N2807-xG 180°Connector SBC-7111-N2930P-xG 45°Connector SBC-7111-E3845P-XG 45°Connector SBC-7111-N2930P-CN3V-XG 45°Connector 7. DC_IN2: (2.0mm Pitch 1x4 wafer Pin Header) DC12V POE power input connector. Pin# Signal Name VCC_BAT VCC_BAT Ground Ground ARCHMI-8XX Series User Manual...
  • Page 36 10. VGA1: (CRT 2.0mm Pitch 2x6 Pin Header), Video Graphic Array Port, Provide 2x6Pin cable to VGA Port. Signal Name Pin# Pin# Signal Name CRT_RED Ground CRT_GREEN Ground CRT_BLUE VGA_EN CRT_H_SYNC CRT_DDCDATA CRT_V_SYNC CRT_DDCCLK Ground Ground ARCHMI-8XX Series User Manual...
  • Page 37 U18 data. Model LVDS resolution SBC-7111-E3845-2G 1280*1024 (Default) SBC-7111-E3845-4G 800*480 (option) SBC-7111-N2930-2G 800*600 (option) SBC-7111-E3845-4G 1024*768 (option) SBC-7111-E3815-2G 1920*1080 (option) 14. INVT1: (2.0mm Pitch 1x6 wafer Pin Header), Backlight control connector for LVDS. ARCHMI-8XX Series User Manual...
  • Page 38 LVDS LVDS LA_D1_P LA_D1_N LA_D2_P LA_D2_N LA_D3_P LA_D3_N LA_CLKP LA_CLKN LB_D0_P LB_D0_N LB_D1_P LB_D1_N LB_D2_P LB_D2_N LB_D3_P LB_D3_N LB_CLKP LB_CLKN Ground Ground E3_USB8 (USB2.0) D3_USB3 E3_USB8_P E3_USB8_N (USB2.0) 5V_S5_USB 5V_S5_USB Power LED PWR_LED+ Ground Power LED ARCHMI-8XX Series User Manual...
  • Page 39 RS232 (Default) ON: Pin1, Pin2, Pin3, Pin4 RS422 (option) OFF: Pin1, Pin2, Pin3, Pin4 RS485 (option) OFF: Pin1, Pin2, Pin3, Pin4 20. S_422: (Switch), COM1 setting, it provides selectable RS232 or RS422 or RS485 serial signal output. ARCHMI-8XX Series User Manual...
  • Page 40 Ground DSR (Data Set Ready) RTS (Request To Send) CTS (Clear To Send) JP1 select Setting (RI/5V/12V) BIOS Setup: Advanced/F81216SEC Super IO Configuration/Serial Port 1 Configuration 【RS-232】 RS422 (option) Pin# Signal Name 422_RX+ 422_RX- 422_TX- 422_TX+ ARCHMI-8XX Series User Manual...
  • Page 41 COM2 RI (Ring Indicator) (default) Close 3-4 COM2 Pin9: DC+5V (option) Close 5-6 COM2 Pin9: DC+12V (option) 23. COM2: (Type DB9M),Rear serial port, standard DB9 Male serial port is provided to make a direct connection to serial devices. ARCHMI-8XX Series User Manual...
  • Page 42 (SATA 7Pin), SATA Connectors, one SATA connector are provided, with transfer speed up to 3.0Gb/s. 27. SATA1: (SATA 7Pin+15Pin), SATA Connectors, one SATA connector are provided, with transfer speed up to 3.0Gb/s. 28. SD1: (SD card slot), Secure Digital Memory Card socket. ARCHMI-8XX Series User Manual...
  • Page 43 USB3.0 port, support USB full-speed and low-speed signaling. Each USB Type A Receptacle (2 Ports) Current limited value is 2.0A. If the external USB device current exceeds 2.0A, please separate connectors into different Receptacle. ARCHMI-8XX Series User Manual...
  • Page 44 Advanced/IT8518Super IO Configuration/Serial Port 1 Configuration【RS-485】 Advanced/IT8518Super IO Configuration/Serial Port 1 Configuration【RS-422】 Advanced/IT8518Super IO Configuration/Serial Port 2 Configuration【RS-485】 Advanced/IT8518Super IO Configuration/Serial Port 2 Configuration【RS-422】 37. EC_GPIO1: (2.0mm Pitch 1X10 Pin Header)For expand connector, it provides brightness adjustment function ARCHMI-8XX Series User Manual...
  • Page 45 COM4_RI COM4_DCD- COM4 COM4 COM4_TXD COM4_RXD (UART) (UART) COM4_DTR RICOM4_RTS- COM4_DSR COM_CTS- Ground Ground COM3_RI COM3_DCD- COM3 COM3 COM3_TXD COM3_RXD (UART) (UART) COM3_DTR DSRCOM3_RTS- COM3_DSR DTRCOM3_CTS- GPIO23 SOC_GPIO23 ICH_GPIO22 GPIO12 GPIO25 SOC_GPIO25 ICH_GPIO24 GPIO24 Ground Ground ARCHMI-8XX Series User Manual...
  • Page 46 PCIE_TX0_DN PCIE_TX0_DP PCIE_RX0_DN PCIE_RX0_DP PCIE PCIE Ground Ground PCIE_REFCLK0_DN PCIE_REFCLK0_DP PCIE0_WAKE_N PLTRST_3P3_N SMBUS SMB_CLK_S0 SMB_DATA_S0 SMBUS PCIE PCIE_CLKREQ0_N Ground 3P3V_S5 PWRBTN_ON- Power Auto on 3P3V_S5 3P3V_S5 12V_S0 12V_S0 ARCHMI-8XX Series User Manual...

  • Page 47: Bios Setup

    BIOS, CPU, memory, and storage devices. 3.2 BIOS Setup Utility Press [Delete] key to enter BIOS Setup utility during POST, and then a main menu containing system summary information will appear. ARCHMI-8XX Series User Manual...

  • Page 48: Main Settings

    3.3 Main Settings System Time: Set the system time, the time format is: Hour : 0 to 23 Minute : 0 to 59 ARCHMI-8XX Series User Manual...

  • Page 49: Advanced Settings

    Day: Note that the ‘Day’ automatically changes when you set the date. Month: 01 to 12 Date: 01 to 31 Year: 1998 to 2099 3.4 Advanced Settings 3.4.1 ACPI Settings Enable ACPI Auto Conf: [Disabled] [Enabled] Enable Hibernation: ARCHMI-8XX Series User Manual...
  • Page 50 Change Settings [Auto] 3.4.3 IT8518 Super IO Configuration Super IO chip IT8518/IT8519 Serial Port 1 Configuration Backlight PWM Controller（COM5）： [RS-485] [RS-422] Serial Port 2 Configuration (COM6) Change Settings [Auto] 3.4.4 Intel（R）Smart Connect Technology ISCT Support [Disabled] [Enabled] ARCHMI-8XX Series User Manual...
  • Page 51 Intel HT-X Technology Supported L1 Data Cache 24KB x 4 L1 Code Cache 32KB x 4 L2 Cache 1024KB x 2 L2 Cache Not Present CPU Thermal configuration CPU Speed 1918 MHz 64-bit Supported Hyper-Threading: [Enabled] [Disabled] ARCHMI-8XX Series User Manual...
  • Page 52 3.4.7 PPM Configuration CPU C State Report [Enabled] [Disabled] Max CPU C-state [C7] [C6] [C1] SOix [Disabled] [Enabled] 3.4.8 Thermal Configuration Parameters 3.4.9 IDE Configuration Serial-ATA(SATA) [Enabled] [Disabled] SATA Test Mode [Disabled] [Enabled] SATA Speed Support [Gen2] [Gen1] ARCHMI-8XX Series User Manual...
  • Page 53 SATA Mode [AHCI Mode] [IDE Mode] Serial-ATA Port 0 [Enabled] [Disabled] SATA Port0 Hotplug [Disabled] [Enabled] Serial-ATA Port 1 [Enabled] [Disabled] SATA Port1 Hotplug [Disabled] [Enabled] SATA Port0 Not Present SATA Port1 Not Present 3.4.10 Miscellaneous Configuration ARCHMI-8XX Series User Manual...
  • Page 54 MIPI HSI Support [Disabled] LPSS Configuration LPSS DMA #1 Support [Enabled] LPSS DMA #2 Support [Enabled] LPSS I2C #1 Support [Enabled] LPSS I2C #2 Support [Enabled] LPSS I2C #3 Support [Enabled] LPSS I2C #4 Support [Enabled] ARCHMI-8XX Series User Manual...
  • Page 55 GateA20 Active [Upon Request] [Always] Option ROM Messages [Force BIOS] [Keep Current] Boot option filter [UEFI and Legacy] [Legacy only] [UEFI only] Network [UEFI] [Do not launch] [Legacy] Storage [UEFI] [Do not launch] [Legacy] Video [Legacy] [UEFI] ARCHMI-8XX Series User Manual...
  • Page 56 USB Mass Storage Driver Support [Enabled] [Disabled] USB hardware delays and time-outs： USB transfer time-out: [20 sec] [10 sec] [5 sec] [1 sec] Device reset time-out: [20 sec] [10 sec] [30 sec] [40 sec] Device power-up delay [Auto] [Manual] ARCHMI-8XX Series User Manual...

  • Page 57: Chipset Settings

    Force Lid Status [On] [Off] [Auto] ALS Support [Disabled] IGD Flat Panel [Auto] Pannel Scaling [Auto] ►Memory Frequency and Timing ►Graphics Power Management Control Memory Information Total Memory 4096 MB(DDR3L) Memory Slot0 4096 MB(DDR3L) DIMM#1 Not Present ARCHMI-8XX Series User Manual...
  • Page 58 [Smart Auto] USB2 Link Power Management [Enabled] USB 2.0(EHCI) Support [Enabled] USB EHCI debug [Disabled] USB Per Port Control [Enabled] USB Port 0 [Enabled] USB Port 1 [Enabled] USB Port 2 [Enabled] USB Port 3 [Enabled] ARCHMI-8XX Series User Manual...

  • Page 59: Security Settings

    You may press key to abandon password entry operation. To clear the password, just press Enter key when password input window pops up. A confirmation message will be shown on the screen as to whether the password ARCHMI-8XX Series User Manual...

  • Page 60: Boot Settings

    System, you will be requested to enter the password before system boot and when entering BIOS setup; if Security Option is set to Setup, you will be requested for password for entering BIOS setup. 3.7 Boot Settings Setup Prompt Timeout Bootup Numlock State [On] [off] Quiet Boot [Disabled] ARCHMI-8XX Series User Manual...

  • Page 61: Save & Exit Settings

    Sets the system boot order Hard Drive BBS Priorities [SATA PM:*** … ] Boot Option #1 SATA PM:***… ****** Disabled 3.8 Save & Exit Settings Save Changes and Exit Save & Exit Setup save Configuration and exit ? [Yes] [No] ARCHMI-8XX Series User Manual...
  • Page 62 Restore User Defaults Restore User Defaults? [Yes] [No] Launch EFI Shell from filesystem device WARNING Not Found [ok] Reset System with ME disable ModeMEUD000 ME will runs into the temporary disable mode, Ignore if ME Ignition FWMEUD001. ARCHMI-8XX Series User Manual...

  • Page 63: Chapter 4 Installation Of Drivers

    Intel chipset driver, VGA driver, LAN drivers, Audio driver, USB 3.0 Driver, and Com Driver Installation instructions are given below. Important Note: After installing your Windows operating system, you must install first the Intel Chipset Software Installation Utility before proceeding with the installation of drivers. ARCHMI-8XX Series User Manual...

  • Page 64: Intel(R) Atomtm Soc Chipset

    4.1 Intel(R) AtomTM SoC Chipset To install the Intel chipset driver, please follow the steps below. Step 1. Select Intel (R) AtomTM SoC Chipset from the list Step 2. Click Next to setup program. ARCHMI-8XX Series User Manual...
  • Page 65 Step 3. Read the license agreement. Click Yes to accept all of the terms of the license agreement. Step 4. Click Next to continue. ARCHMI-8XX Series User Manual...
  • Page 66 Step 5. Click Next. Step 6. Select Yes, I want to restart this computer now. Click Finish, then remove any installation media from the drives. ARCHMI-8XX Series User Manual...

  • Page 67: Intel(R) Vga Chipset

    4.2 Intel(R) VGA Chipset To install the VGA drivers, follow the steps below to proceed with the installation. Step 1.Select Intel(R) VGA Chipset Step 2. Click Automatically run WinSAT and enable the Windows Aero desktop theme(if supported). Click Next. ARCHMI-8XX Series User Manual...
  • Page 68 Step 3. Read license agreement. Click Yes. Step 4. Click Next. ARCHMI-8XX Series User Manual...
  • Page 69 Step 5. Click Install. Step 6. Click Install. ARCHMI-8XX Series User Manual...
  • Page 70 Step 7. Click Next. Step 8. Click Yes, I want to restart this computer now. Then click Finish. ARCHMI-8XX Series User Manual...

  • Page 71: Intel(R) Lan Driver

    4.3 Intel(R) LAN Driver To install the Intel (R) LAN driver, please follow the steps below. Step 1. Select Intel(R) 82574L LAN Driver from the list. Step 2. . Click Next. ARCHMI-8XX Series User Manual...
  • Page 72 Step 3. Read license agreement. Click I accept the terms in the license agreement. Click Next. Step 4. Click Next to continue. ARCHMI-8XX Series User Manual...
  • Page 73 Step 5. Click Install to begin the installation. Step 6. Click Finish to exit the wizard. ARCHMI-8XX Series User Manual...

  • Page 74: Realtek Alc662 Hd Audio Driver Installation

    4.4 Realtek ALC662 HD Audio Driver Installation To install the Realtek ALC662 HD Audio Driver, please follow the steps below. Step 1. Select Realtek AL662 HD Audio Driver from the list Step 2. Click Next to continue. ARCHMI-8XX Series User Manual...

  • Page 75: Usb 3.0 Driver

    Step 3. Click Yes, I want to restart my computer now. Click Finish to complete the installation. 4.5 USB 3.0 Driver To install the USB 3.0 Driver, please follow the steps below. Step 1. Select USB 3.0 Driver from the list ARCHMI-8XX Series User Manual...
  • Page 76 Step 2. Click Next to continue. Step 3. Read the license agreement. Then click Yes to continue. ARCHMI-8XX Series User Manual...
  • Page 77 Step 4. Click Next to continue. Step 5. Click Next to continue. ARCHMI-8XX Series User Manual...

  • Page 78: Com Driver

    Step 6. Select Yes, I want to restart this computer now. Then click Finish to complete the installation. 4.6 Com Driver To install the Com Driver, please follow the steps below. Step 1. Select Com Driver from the list ARCHMI-8XX Series User Manual...
  • Page 79 Step 2. Click Next to continue. Step 3. Click install to begin the installation. ARCHMI-8XX Series User Manual...
  • Page 80 Step 4. Click Finish to complete the installation. ARCHMI-8XX Series User Manual...

  • Page 81: Chapter 5 Touch Screen Installation

    If you have an older version of the PenMount Windows 7 driver installed in your system, please remove it first. Follow the steps below to install the PenMount DMC6000 Windows 7 driver. Step 1. Insert the product CD, the screen below would appear. Click Touch Panel Driver. ARCHMI-8XX Series User Manual...
  • Page 82 Step 2. Select Resistive Touch. Step 3. Click Next to continue. ARCHMI-8XX Series User Manual...
  • Page 83 Step 4. Read the license agreement. Click I Agree to agree the license agreement. Step 5. Choose the folder in which to install PenMount Windows Universal Driver. Click Install to start the installation. ARCHMI-8XX Series User Manual...
  • Page 84 Step 6. Click Yes to continue. Step 7. Click Finish to complete installation. ARCHMI-8XX Series User Manual...
  • Page 85 5.1.2 Installing Software (Projected Capacitive) Step 1. Insert the product CD, the screen below would appear. Click touch panel driver. Step 2. Select Projected Capacitive. ARCHMI-8XX Series User Manual...
  • Page 86 Step 3. Click Next to continue. Step 4. Select I accept the terms of the license agreement. Click Next. ARCHMI-8XX Series User Manual...
  • Page 87 Step.5. Click Next to continue. Step 6. Click Install RS232 interface driver. ARCHMI-8XX Series User Manual...
  • Page 88 Step 7. Select None. Click Next. Step 8. Click OK. Step 9. Click Support Muti-Monitor System. Click Next. ARCHMI-8XX Series User Manual...
  • Page 89 Step 10. Go to C:\Program Files\eGalaxTouch. Click Next. Step 11. Click Next. ARCHMI-8XX Series User Manual...
  • Page 90 Step 12. Click Create a eGalaxTouch Utility shortcut on desktop. Click Next. Step 13. Wait for installation. Step 14. Click Yes to do 4 point calibration. ARCHMI-8XX Series User Manual...

  • Page 91: Software Functions

    In this window, you can find out that how many devices be detected on your system. Calibrate This function offers two ways to calibrate your touch screen. ‘Standard Calibration’ adjusts most touch screens. ‘Advanced Calibration’ adjusts aging touch screens. ARCHMI-8XX Series User Manual...
  • Page 92 Click this button and touch the red squares in sequence with a stylus. To skip, press ESC’. Step 1. Please select a device then click “Configure”. You can also double click the device too. ARCHMI-8XX Series User Manual...
  • Page 93 Step 2.Click “Standard Calibration” to start calibration procedure NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Please follow the step as below: ARCHMI-8XX Series User Manual...
  • Page 94 Advanced Calibration. The blue lines show linearity before calibration and black lines show linearity after calibration. Turn off EEPROM The function disable for calibration data to write in storage Controller. The default setting is Enable. ARCHMI-8XX Series User Manual...
  • Page 95 Beep Frequency – modifies sound frequency Beep Duration – modifies sound duration Cursor Stabilizer Enable the function support to prevent cursor shake. Use press and You can set the time out and area for you need. hold as right click ARCHMI-8XX Series User Manual...
  • Page 96 Edge Compensation You can use Edge Compensation to calibrate more subtly. ARCHMI-8XX Series User Manual...
  • Page 97 NOTE: The Multiple Monitor function is for use with multiple displays only. Do not use this function if you have only one touch screen display. Please note once you turn on this function the rotating function is disabled. Enable the multiple display function as follows: ARCHMI-8XX Series User Manual...
  • Page 98 4. Touching all screens completes the mapping and the desktop reappears on the monitors. 5. Select a display and execute the “Calibration” function. A message to start calibration appears. Click OK. ARCHMI-8XX Series User Manual...
  • Page 99 This panel displays information about the PenMount controller and this driver version. PenMount Monitor Menu Icon The PenMount monitor icon (PM) appears in the menu bar of Windows XP/2003/Vista/7 system when you turn on PenMount Monitor in PenMount Utilities. ARCHMI-8XX Series User Manual...
  • Page 100 2. Choose the rotate function (0°, 90°, 180°, 270°) in the 3rd party software. The calibration screen appears automatically. Touch this point and rotation is mapped. NOTE: The Rotate function is disabled if you use Monitor Mapping ARCHMI-8XX Series User Manual...
  • Page 101 5.2.2 Software Functions(Projected Capacitive) General In this window, you can see there is USB Controller. Click OK to continue. Monitor Mapping to adjust touch panel to search for device ARCHMI-8XX Series User Manual...
  • Page 102 Beep On Touch Beep On Release Beep From System Beep Beep From Sound Card Linearization Style 9 points 25 points Double Click Time Shorter Longer Double Click Area Smaller Bigger Normal mode Simulate the mouse mode ARCHMI-8XX Series User Manual...
  • Page 103 Option Function Enable Constant Touch Enable Auto Right Click Enable Touch Enable Cursor Stabilization Constant Touch Area Auto Right Click Time ARCHMI-8XX Series User Manual...
  • Page 104 Do 4 points alignment to match display. Clear and Calibrate Clear linearization parameter and do 4 points alignment. Linearization Do 9 points linearization for better touchscreen linearity. Draw Test Do draw test to verify the touch accuracy. ARCHMI-8XX Series User Manual...
  • Page 105 Display In this window, it shows the mode of display. Enable Multiple Monitors. Map to main display if system has only one display monitor Full Screen Lower Screen Left Screen Upper Screen Right Screen ARCHMI-8XX Series User Manual...
  • Page 106 Other Other mode of display. Quarter1~4 and Customized area. Active Area Drag active area to enable Active Area Function. ARCHMI-8XX Series User Manual...
  • Page 107 Hardware Saturn Hardware Configuration ARCHMI-8XX Series User Manual...
  • Page 108 About To display information about eGalaxTouch and its version. ARCHMI-8XX Series User Manual...
