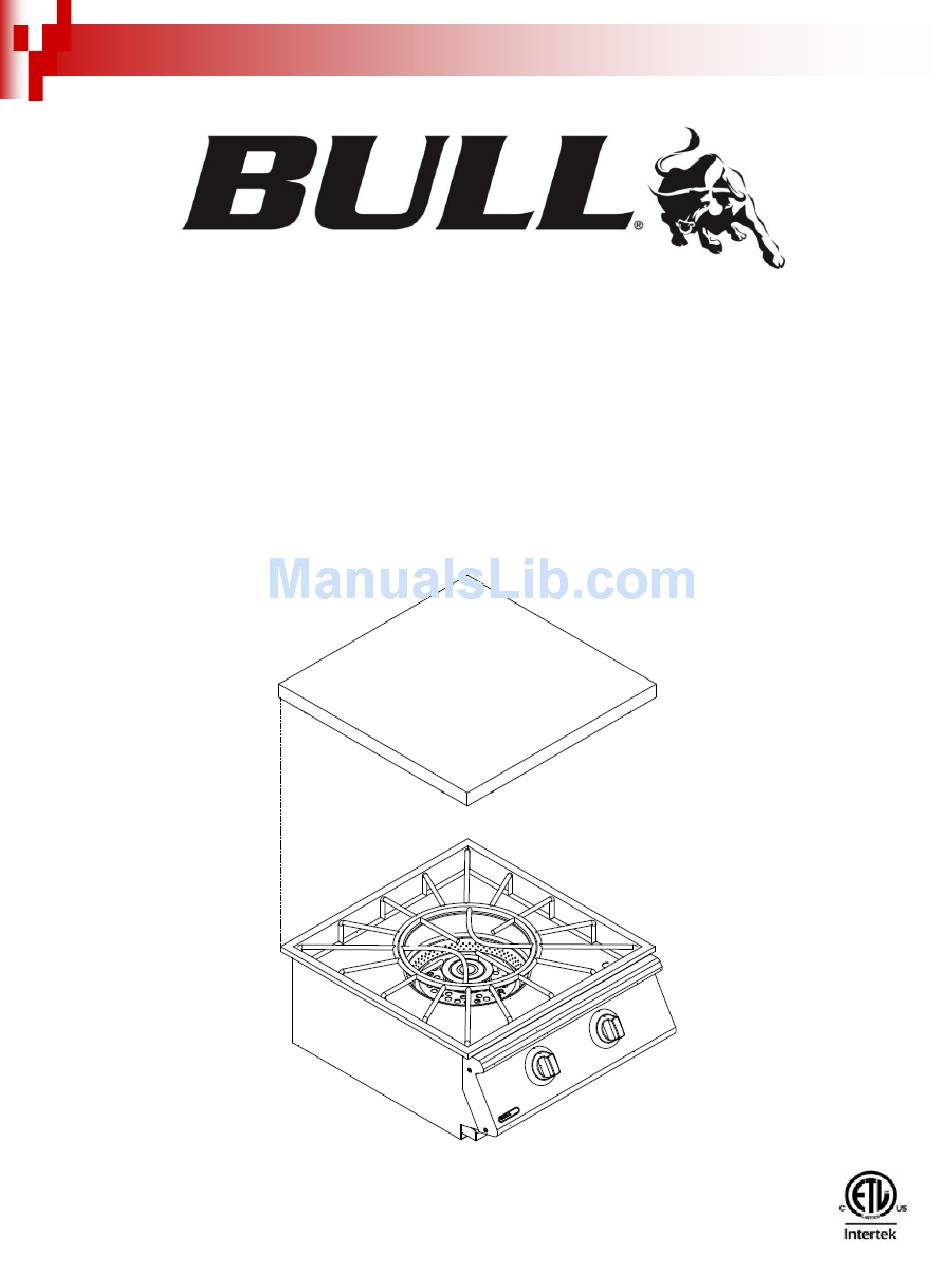

- Page 1 ASSEMBLY & OPERATING INSTRUCTIONS MODEL #96000 POWER BURNER, L.P. (PROPANE) MODEL #96001 POWER BURNER, N.G. (NATURAL GAS)
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE # SAFETY INSTRUCTIONS……………………...…………………………………………………….………………………..………………………...2 THE LOCATION FOR YOUR POWER BURNER…………………………………………………………..……….…………………..2 CHECKING FOR GAS LEAKS………………………………………………………………………………………...…..……………………..2 NATURAL GAS SAFETY…………………………………….……………………….……..………………….……………….…..…….……...3 PROPANE GAS SAFETY…………………………………………………………………………………………………….….………………..4 INSTALLATION INSTRUCTIONS…………………………………………………………………………………………..………………….……..5 SPECIFICATIONS FOR POWER BURNER STRUCTURE….………………….……………………………...………..……………………5 CONNECTING TO GAS SOURCE…………………………………………………..………………...……………………………………..5 NATURAL GAS CONNECTIONS……………………………………………..….………….….….….……….…….……………………….….5 PROPANE GAS CONNECTIONS………………………………………...….……..…..….…….………….…….…...…….…….…….…..5 OUTDOOR NATURAL GAS POWER BURNER INSTALLATION SPECIFICATIONS……...………….….….…..…………………..……6 OUTDOOR PROPANE GAS POWER BURNER INSTALLATION SPECIFICATIONS…….….….….……………………..…..………….7 INSPECTING / CLEANING BURNER AND GAS ORIFICES………....…….….…….…….………………..……….……..….……….…8... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS READ CAREFULLY BEFORE ASSEMBLY AND OPERATION OF YOUR POWER BURNER This power burner must be installed in accordance with local codes or, if in an area without local codes, with the latest edition of the National Fuel Gas Code ANSI Z223.1. In Canada, installation must conform to the standard CAN/ CGA 1-b149.1 and/or .2 (Installation Code for Gas Burning Appliances and Equipment) and any local codes. -
Page 4: Natural Gas Safety
SAFETY INSTRUCTIONS (CONT.) NATURAL GAS SAFETY Your Natural Gas power burner is designed to operate on natural gas ONLY, at a pressure of 4” water column (W.C.) regulated at the natural gas regulator attached at the back of the power burner. Check with your gas utility for local gas pressure and with your local municipality for building code requirements. -
Page 5: Propane Gas Safety
SAFETY INSTRUCTIONS (CONT.) PROPANE GAS SAFETY Your Propane power burner is designed to operate on propane gas ONLY, at a pressure regulated at 11” water column (W.C.) when equipped with the correct propane orifices and a propane regulator on the supply line regulated at the residential meter. Your propane power burner is designed to be used with a standard 20 lb gas cylinder. -
Page 6: Installation Instructions
IMPORTANT: Before connecting power burner to gas source, make sure power burner control knobs are in “OFF” position. NATURAL GAS CONNECTIONS IMPORTANT: Bull Outdoor Products does not recommend the use of any quick connect fittings or lines to the unit. Use of these types of fittings or lines could cause low gas flow and greatly reduce the performance of the unit. -
Page 7: Outdoor Natural Gas Power Burner Installation Specifications
INSTALLATION INSTRUCTIONS (CONT.) OUTDOOR NATURAL GAS POWER BURNER INSTALLATION SPECIFICATIONS NOTE: - When choosing a location for your power burner keep in mind that it should never be located under any overhead combustible construction. - The sides and back of the power burner should not be any closer than 21 inches to combustible construction. -
Page 8: Outdoor Propane Gas Power Burner Installation Specifications
INSTALLATION INSTRUCTIONS (CONT.) OUTDOOR PROPANE GAS POWER BURNER INSTALLATION SPECIFICATIONS NOTE: - When choosing a location for your power burner keep in mind that it should never be located under any overhead combustible construction. - The sides and back of the power burner should not be any closer than 21 inches to combustible construction. - DO NOT store empty or full spare tanks under or near this or any other appliance. -
Page 9: Inspecting / Cleaning Burner And Gas Orifices
INSPECTING I CLEANING BURNER AND GAS ORIFICES By following these cleaning procedures on a timely basis, your power burner will be kept clean and working properly with minimum effort. CAUTION – Always turn off the gas supply prior to clearing your power burner. BURNER CLEANING 1. - Page 10 INSPECTING I CLEANING BURNER AND GAS ORIFICES (CONT.) 4. Remove the burner by sliding it through the cutout in the insert assembly. Note: It’s easiest to remove the burner by rotating it 90° so that the burner tube faces the front. 5.
-
Page 11: Burner Shutter Clip Inspection / Adjustment
INSPECTING I CLEANING BURNER AND GAS ORIFICES (CONT.) BURNER SHUTTER CLIP INSPECTION / ADJUSTMENT The burner is set to a factory setting; however the air to fuel mixture may need to be adjusted to accommodate different gas pressures. In order to adjust the air to fuel mixture, loosen the screw and rotate the shutter clip to the appropriate setting (see diagrams below). -
Page 12: Igniter / Electrode Check
INSPECTING / CLEANING BURNER AND GAS ORIFICES (CONT.) IGNITER / ELECTRODE CHECK With all control knobs set to “OFF”, check each igniter individually for presence of spark at electrode. In turn, push each control knob in fully and turn slowly about a 1/4 turn to the left (counter-clockwise) until a click is heard; the trigger hitting the strike block should produce a blue spark at the electrode tip. -
Page 13: Lighting & Operating Instructions
LIGHTING & OPERATING INSTRUCTIONS LIGHTING PROCEDURES Lighting Burner(s): 1. Become familiar with the safety guidelines at the front of the manual. DO NOT SMOKE WHILE LIGHTING POWER BURNER OR CHECKING GAS SUPPLY CONNECTIONS! 2. If your power burner fuel source is a LP gas cylinder, check to see that the cylinder is filled. 3. -
Page 14: Cleaning & Maintenance
These chemicals combined with heat and humidity greatly increase the corrosiveness of these chemicals. Regular cleaning is the best way to prevent corrosion and add years of enjoyment to your Bull stainless steel... -
Page 15: Troubleshooting
TROUBLESHOOTING IF POWER BURNER FAILS TO OPERATE PROPERLY 1. Turn off gas at source, turn control knobs to “OFF”, and wait five minutes before trying again. 2. Check gas supply/connections. 3. Repeat lighting procedure. If power burner still fails to operate properly, TURN “OFF” GAS AT SOURCE, TURN CONTROL KNOBS TO “OFF”, wait for power burner to cool, and check the following: a. -
Page 16: Parts List
PARTS LIST MODEL #96000 POWER BURNER, L.P. (PROPANE) MODEL #96001 POWER BURNER, N.G. (NATURAL GAS) REF # PARTS # DESCRIPTION WARRANTY PERIOD 96100 INSERT ASSEMBLY Lifetime 96101 1 yr 96102 GREASE TRAY 1 yr 96103 CONTROL PANEL 1 yr 16501... -
Page 17: Exploded Illustration
EXPLODED ILLUSTRATION... -
Page 18: Limited Warranty
LIMITED WARRANTY Bull Outdoor Products, Inc. warrants to the original purchaser at the original site of delivery with proof of purchase of each Outdoor Power Burner that when subject to normal residential use, it is free from defects in workmanship and materials for the periods specified below. This warranty excludes power burners used in rental or commercial applications.
