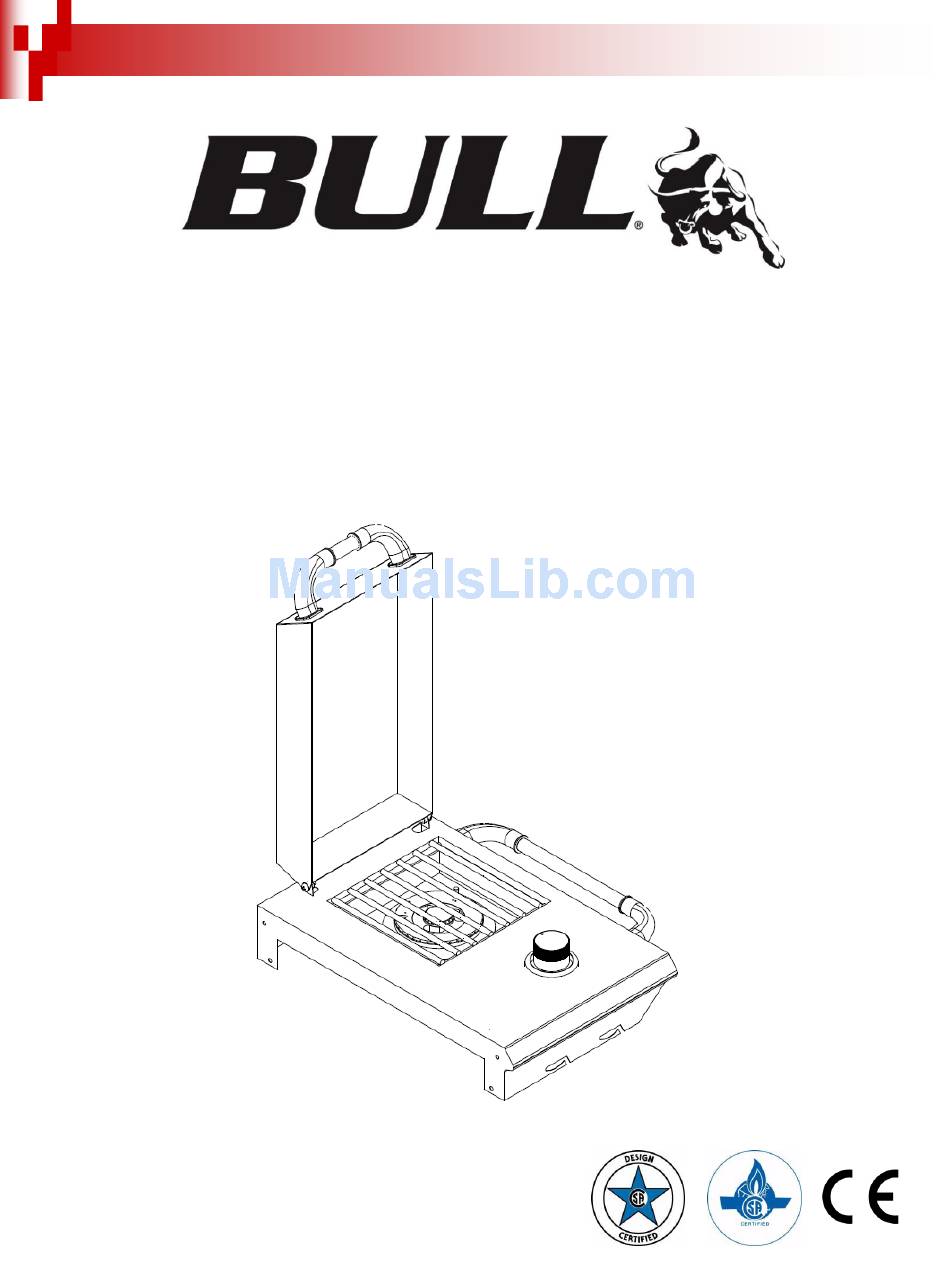

- Page 1 ASSEMBLY & OPERATING INSTRUCTIONS MODEL #60010 SIDEKICK CART SIDEBURNER STAINLESS STEEL, L.P. (PROPANE)
- Page 2 TABLE OF CONTENTS PAGE # SAFETY INSTRUCTIONS……………………...…………………………………………………….………………………..………………………...2 THE LOCATION FOR YOUR SIDEKICK SIDEBURNER.......…….….………………………..……….…………………..2 CHECKING FOR GAS LEAKS………………………………………………………………………………………...…..……………………..2 PROPANE GAS SAFETY…………………………………………………………………………………………………….….………………..3 INSTALLATION INSTRUCTIONS…………………………………………………………………………………………..………………….……..4 CONNECTING TO GAS SOURCE…………………………………………………..………………...……………………………………..5 PROPANE GAS CONNECTIONS………………………………………...….……..…..….…….………….…….…...…….…….…….…..5 INSPECTING / CLEANING BURNER AND GAS VALVE…..………….…….…..…..……..…….………………..………..………...…..…7 BURNER CLEANING....................................7 BURNER OPERATION CHECK………………………….………………….….….….….….….….….…..…..…..….…….…….….…….8 COOKING COMPONENT………………………………………………………………………….….…...……….……….….….………………8 LIGHTING &...
- Page 3 SAFETY INSTRUCTIONS READ CAREFULLY BEFORE ASSEMBLY AND OPERATION OF YOUR SIDEKICK SIDEBURNER THE LOCATION FOR YOUR SIDEKICK SIDEBURNER This Sidekick Sideburner must be installed in accordance with local codes or, if in an area without local codes, with the latest edition of the National Fuel Gas Code ANSI Z223.1.
- Page 4 SAFETY INSTRUCTIONS (CONT.) PROPANE GAS SAFETY SAFETY! BEWARE OF SPIDERS Your propane (G31) Sidekick Sideburner is designed to operate on propane gas ONLY, at a pressure of 11” water column (W.C.)/27.4 mbar/2.74 KPa when equipped with a propane regulator on the supply line regulated at the residential meter and a propane orifice located inside the ventri WARNING tube.
- Page 5 NOTE: Sidekick Sideburner DOES NOT come with handle. Handle from original side shelf must be removed and re-used on Sidekick Sideburner. with all local building codes. Adapter from 1/2” NPT to BSP 21 mm & regulator are available from Bull dealers and distributors. Attach the Side Kick Sideburner to the grill head with four 1/2“ phillips head screws (1A).
- Page 6 INSTALLATION INSTRUCTIONS (CONT.) CONNECTING TO GAS SOURCE PROPANE GAS CONNECTIONS Refer to the following instructions and illustrations for typical gas supply connections. We strongly suggest professional installation and hook-up of the Sidekick Sideburner. All regulators must meet EN16129 standard. IMPORTANT: Before connecting Sidekick Sideburner to gas source, make sure the sideburner control knob is in the “OFF” position. Connect provided sideburner hose to the valve underneath the Sidekick burner (shown below) CAUTION: Changing the gas tanks must be done away from any source of...
- Page 7 INSTALLATION INSTRUCTIONS (CONT.) PROPANE GAS CONNECTIONS (Cont.) Connect provided sideburner hose to the valve underneath the Sidekick burner (shown below) - When choosing a location for your Sidekick Sideburner keep in mind that it should never be located under any overhead combustible construction. - The sides and back of the Sidekick Sideburner should not be any closer than 21 inches/54 cm/533 mm to combustible construction.
-
Page 8: Burner Cleaning
INSPECTING I CLEANING BURNER AND GAS VALVE CAUTION – Always turn off the gas supply prior to clearing your Sidekick Sideburner. BURNER CLEANING By following these cleaning procedures on a timely basis, your Sidekick Sideburner will be kept clean and working properly with minimum effort. 1. - Page 9 INSPECTING / CLEANING BURNER AND GAS VALVE (CONT.) CAUTION – Always turn off the gas supply prior to clearing your Sidekick Sideburner. IGNITER CHECK BURNER OPERATION CHECK With the control knob set to “OFF”, check the igniter for presence of spark at burner. Push control knob in fully and turn slowly about a 1/4 turn to the left (counter-clockwise) until a click is heard;...
- Page 10 LIGHTING & OPERATING INSTRUCTIONS LIGHTING PROCEDURES CAUTION: TO ENSURE YOUR SAFETY, DO NOT OPERATE SIDEKICK SIDEBURNER UNTIL YOU FULLY READ AND UNDERSTAND THE INSTRUCTIONS. Lighting Burner: 1. Become familiar with the safety guidelines at the front of the manual. DO NOT SMOKE WHILE LIGHTING SIDEKICK SIDEBURNER OR CHECKING GAS SUPPLY CONNECTIONS! 2.
- Page 11 These chemicals combined with heat and humidity greatly increase the corrosiveness of these chemicals. Regular cleaning is the best way to prevent corrosion and add years of enjoyment to your Bull stainless steel...
-
Page 12: Troubleshooting
TROUBLESHOOTING IF SIDEKICK SIDEBURNER FAILS TO OPERATE PROPERLY 1. Turn off gas at source, turn control knob to “OFF”, and wait five minutes before trying again. 2. Check gas supply/connections. 3. Repeat lighting procedure. If Sidekick Sideburner still fails to operate properly, TURN “OFF” GAS AT SOURCE, TURN CONTROL KNOB TO “OFF”, wait for sideburner to cool, and check the following: a. -
Page 13: Parts List
PARTS LIST MODEL #60010 SIDEKICK SIDEBURNER STAINLESS STEEL, L.P. (PROPANE) CE = European versions HOW TO ORDER REPLACEMENT PARTS Please refer to the parts list on this page. To make sure you obtain the correct replacement parts for your Sidekick Sideburner, the following information is required to assure getting the correct part. - Page 14 EXPLODED ILLUSTRATION...
- Page 15 REGISTERING YOUR SIDEBURNER In order to validate your Bull Limited Warranty, you must complete the Warranty Registration Card within 90 days from the Proof of Purchase. You may register your unit either online at www.bullbbq.com or by sending in the completed hard copy along with a copy of the Proof of Purchase to:...
