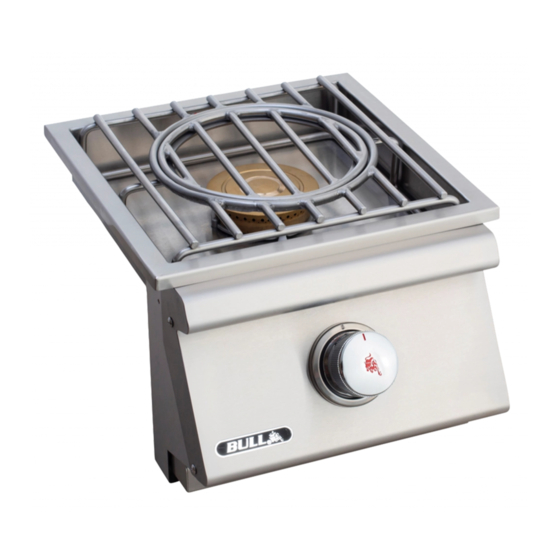

- Page 1 SLIDE-IN PRO SIDE BURNER OWNER’S MANUAL MODELS # 60018 LIQUID PROPANE (LP) # 60019 NATURAL GAS (NG)
-
Page 2: Table Of Contents
PLEASE READ THE ENTIRE OWNERS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE We care about your safety, so please …. BE SURE YOUR SIDE BURNER IS PROPERLY INSTALLED ASSEMBLED AND CARED FOR. FAILURE TO FOLLOW INSTRUCTIONS IN THIS MANUAL MAY RESULT IN SERIOUS BODILY INJURY AND/OR PROPERTY DAMAGE. IF YOU HAVE QUESTIONS CONCERNING ASSEMBLY OR OPERATION, CONSULT YOUR DEALER OR APPLIANCE SERVICE REPRESENTATIVE FOR ASSISTANCE. -
Page 3: How To Register Your Sideburner
Your Side Burner gas valve is pre-set at the factory specifically for the gas the Side Burner was intended for. That means a different or specific gas valve must be installed when converting from one type of gas to another Before you start, be sure to contact your gas supplier or your Bull Grill Dealer who will be ready to supply the correct conversion kits needed. -
Page 4: Replacement Parts List With Illustration
SLIDE-IN PRO SIDE BURNER REPLACEMENT PARTS LIST AND ILLUSTRATION MODELS # 60018 LP (LIQUID PROPANE) & # 60019 NG (NATURAL GAS) WARRANTY PERIOD DWG REF # BULL PART # DESCRIPTION (SHOWN IN YEARS) 60023 PRO BURNER BODY ASSEMBLY 60024 PRO BURNER GRATE COVER... - Page 5 SIDE BURNER OPERATIONAL SAFETY WARNING! BEWARE OF CLOGGED BURNER FOR YOUR SAFETY, FOLLOW THE GUIDELINES BELOW: DUE TO SPIDER WEBS CAUTION: BURNER MUST BE INSPECTED AND CLEANED YOUR GAS SIDE BURNER IS ONLY FOR OUTDOOR USE. BEFORE FIRST USE Spiders and small insects occasionally spin webs or make PROTECT CHILDREN FROM SIDE BURNER: nests in the burner during warehousing, transit and/or after ...
- Page 6 MODEL 60018 LIQUID PROPANE (LP) SAFETY GUIDELINES DANGER! IF YOU SMELL GAS, FOLLOW THE GUIDELINES BELOW: VISUALLY CHECK BURNER FLAME STATUS, AND PILOT BURNER FLAME IF PROVIDED. NEVER TEST FOR GAS LEAKS WITH A LIGHTED MATCH OR OPEN FLAME. SHUT OFF GAS SOURCE TO THE APPLIANCE.
-
Page 7: Liquid Propane Safety Guidelines
WARNING: GAS VALVES ARE PRE-SET AT THE BULL FACTORY TO OPERATE ON LP GAS OR NATURAL GAS. IF YOU WISH TO CONVERT TO A DIFFERENT GAS TYPE, OTHER THAN LP OR NG, BE SURE TO CONTACT YOUR GRILL DEALER, LICENSED PLUMBER OR AUTHORIZED SERVICE CENTER FOR FURTHER DETAILS. - Page 8 LIQUID PROPANE GAS TO NATURAL GAS CONVERSION Gas valves are pre-set at the Bull factory to operate on LP Gas or Natural Gas. If you wish to convert to a different gas type, other than LP or NG, be sure to contact your grill dealer, licensed plumber or authorized service center for further details.
-
Page 9: Natural Gas Safety Guidelines
Bull purchase last longer. IMPORTANT: Bull Outdoor Products does not recommend the use of any quick connect fittings or lines to the unit. Use of these types of fittings or lines could cause low gas flow and greatly reduce the performance of the unit. -
Page 10: Operating Location And Over Head Ventilation
• LOWER VENTS MUST HAVE OPENINGS THAT HAVE A TOTAL FREE AREA OF NOT LESS THAN 1/2 SQ IN PER LB OF STORED FUEL CAPACITY PER VENT. IF NOT USING BULL VENTS, THE VENTS YOU USE ARE REQUIRED TO MEET ANSI STANDARD CODES. AND BOTH UPPER AND LOWER VENT OPENINGS MUST HAVE MINIMUM DIMENSIONS SO AS TO PERMIT THE ENTRANCE OF A 1/8 IN DIAMETER ROD. - Page 11 SIDE BURNER INSTALLATION TO ENCLOSURE : ALL DIMENSIONS ARE IN INCHES INSTALLATION CUTOUT DIMENSIONS ARE 12 1/8 LONG X 9 1/2 WIDE X 12 1/2 DEEP AS SHOWN FINISHING FRAME FOR SIDE BURNER CAN BE OBTAINED FROM BULL REFER TO ITEM NO. 93007...
-
Page 12: Liquid Propane Gas Connection
13) Please ensure visibility of the connector and directions for the piping, flexible tubing and gas connector within enclosure. 14) Do not use any combustible materials for this construction. NON-COMBUSTIBLE SIDE BURNER CONSTRUCTION REQUIRED LP PLUMBING SUPPLIED BY BULL: NO COMBUSTIBLE GRILL FLEX LINE CONSTRUCTION 3/8 FLARED ‘T’ MATERIALS ALLOWED... -
Page 13: Liquid Propane Tank Retention
Below are guidelines and illustrations for an LP Tank enclosure and how to install a Tank Retention System which can be obtained through your Bull Dealer: Any Tank Retention system must be secured to the floor using bolts and nuts or lock washers. -
Page 14: Natural Gas Connection
Bull purchase last longer. IMPORTANT: Bull Outdoor Products does not recommend the use of any quick connect fittings or lines to the unit. Use of these types of fittings or lines could cause low gas flow and greatly reduce the performance of the unit. - Page 15 FIRST USE’ LIGHTING PROCEDURE NEVER SMOKE WHILE LIGHTING SIDE BURNER OR CHECKING LP GAS CONNECTIONS. BECOME FAMILIAR WITH THE SAFETY GUIDELINES AT THE FRONT OF THE MANUAL DO NOT LEAVE SIDE BURNER UNATTENDED DURING USE IMPORTANT! FOLLOW THE STEPS BELOW BEFORE FIRST USE OR AT START OF NEW GRILLING SEASON 1) If your grill fuel source is LP, verify the gas cylinder is full.
-
Page 16: Standard And Manual Light Procedures
‘FIRST USE’ PROCEDURE, CONTINUED IMPORTANT: Before first use and at the end of each barbecue season: wash cooking grate with warm, soapy water. Rinse and dry thoroughly. DO NOT RUN FOR MORE THAN 10 MINUTES BEFORE FIRST USE ALWAYS OPEN LID BEFORE LIGHTING. DO NOT MOVE THE APPLIANCE WHEN IT IS IN USE. FIRST USE ‘BURN OFF’... -
Page 17: Inspection And Maintenance Burner Removal, Inspecting And Port Cleaning
SIDE BURNER INSPECTION AND CLEANING Following these cleaning procedures on a timely basis, will help keep your Side Burner clean and working properly. CAUTION – ALWAYS TURN OFF THE GAS SUPPLY PRIOR TO CLEARING YOUR SIDE BURNER. INSTRUCTIONS FOR BURNER REMOVAL, BURNER PORT INSPECTION AND DEBRIS REMOVAL Remove the inner and outer cooking grates. -
Page 18: Maintenance
MAINTENANCE REQUIRED INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS THAT MUST BE FOLLOWED PER ANSI Z210.58-CSA 1.6-2019 SECTION 4.24.2a FOR ALL OUTDOOR COOKING GAS APPLIANCES. STAINLESS STEEL CLEANING AND MAINTENANCE Your Side Burner outstanding lustre and durability is attributed to Stainless Steel construction. The Stainless Steel has an outer layer that relies on a proper cleaning and maintenance routine as the best way to remain intake and prevent corrosion. -
Page 19: Troubleshooting
NEVER SMOKE WHILE TROUBLESHOOTING! TROUBLESHOOTING IF SIDE BURNER FAILS TO OPERATE PROPERLY 1) TURN OFF GAS AT SOURCE, TURN CONTROL KNOB TO “OFF”, AND WAIT FIVE MINUTES BEFORE TRYING AGAIN. 2) CHECK GAS SUPPLY/CONNECTIONS. 3) REPEAT LIGHTING PROCEDURE. IF SIDE BURNER STILL FAILS TO OPERATE PROPERLY, TURN “OFF” GAS AT SOURCE, TURN CONTROL KNOB TO “OFF”, WAIT FOR SIDE BURNER TO COOL, AND CHECK THE FOLLOWING: MISALIGNMENT OF BURNER TUBE OVER VENTURI TUBE CORRECTION: REPOSITION BURNER TUBE TO PROPERLY SEAT INSIDE VENTURI TUBE. - Page 20 APPLY TO YOU. WHO MAY USE THIS WARRANTY? BULL OUTDOOR PRODUCTS, INC. located at address 1011 East Pine St. Lodi, CA. 95240 ("we") extend this limited warranty only to the consumer who originally purchased the product ("you") at the original site of delivery or installation. It does not extend to any subsequent owner or other transferee of the product.
- Page 21 Grill Warranty Periods The following parts are covered for one year on all our current gas grill models: The lid, control panel, grease tray, bezels, knobs, temperature gauge, valves, regulator, flex tubes, rotisserie burner, transformer, and all components of the lighting system. The following parts are covered for three years on all our current gas grill models: The manifold, handle end caps, flame tamers, heat shields, and warming rack.
- Page 22 Sidekick o The burner is covered for 3 years. Pizza Ovens/Islands/Fire Features Warranty Periods All of the parts and construction materials are covered for one year. Grill Accessories and Grill Covers do not include a warranty period. WHAT DOES THIS WARRANTY NOT COVER? This limited warranty does not cover any damage due to: (a) transportation; (b) storage; (c) improper installation or use;...
