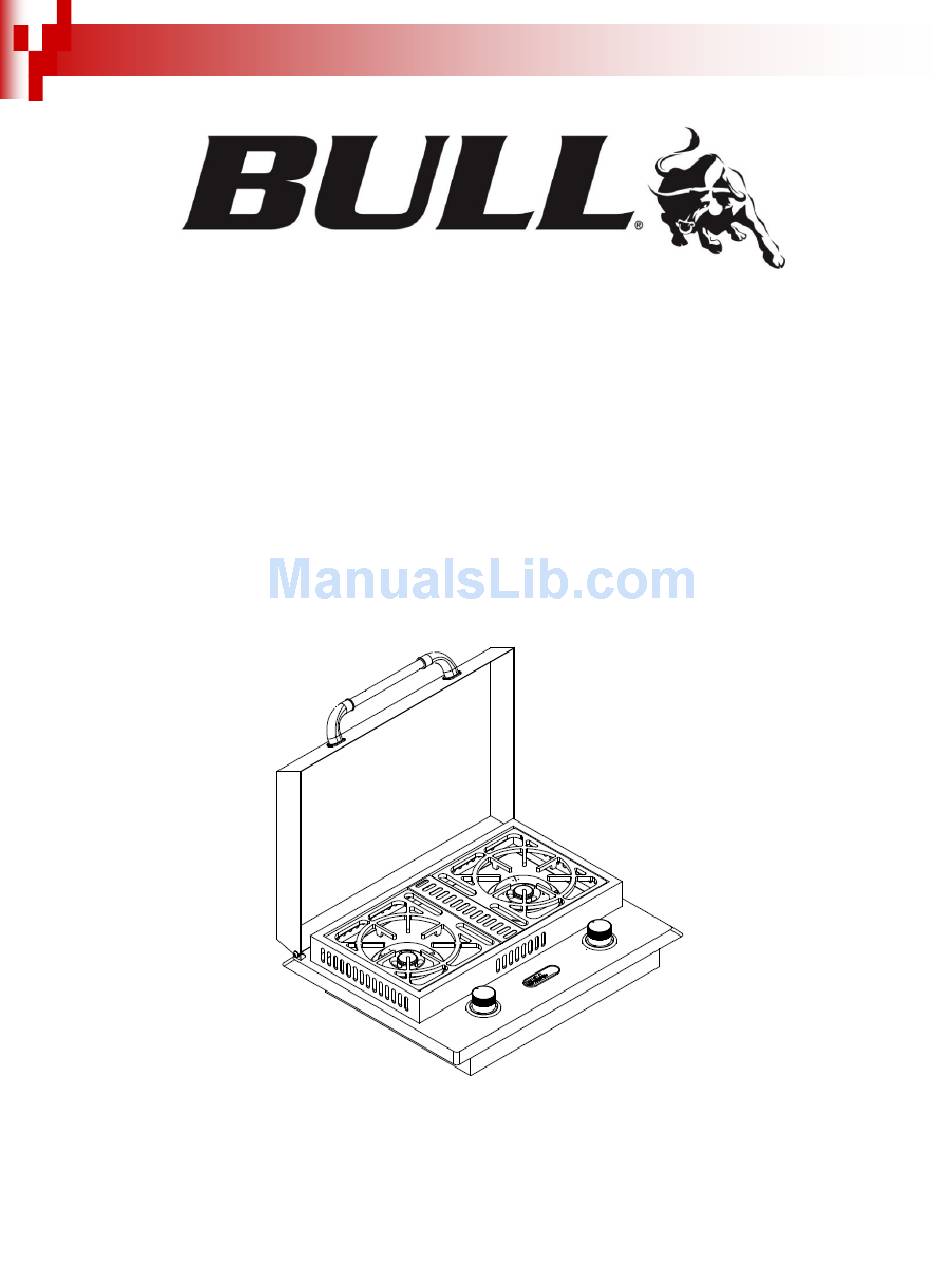

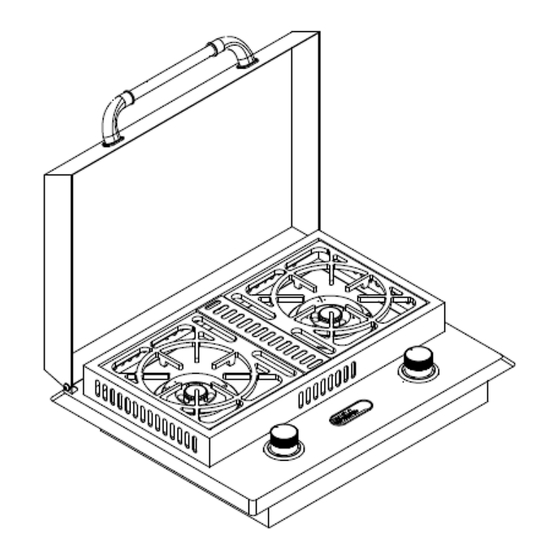

- Page 1 ASSEMBLY & OPERATING INSTRUCTIONS MODEL #60088 DOUBLE SIDEBURNER STAINLESS STEEL, L.P. (PROPANE) MODEL #60099 DOUBLE SIDEBURNER STAINLESS STEEL, N.G. (NATURAL GAS)
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE # SAFETY INSTRUCTIONS……………………...…………………………………………………….………………………..………………………...2 THE LOCATION FOR YOUR DOUBLE SIDEBURNER....……..…….….………………………..……….………………..2 CHECKING FOR GAS LEAKS………………………………………………………………………………………...…..……………………..2 NATURAL GAS SAFETY…………………………………….……………………….……..………………….……………….…..…….……...3 PROPANE GAS SAFETY…………………………………………………………………………………………………….….………………..4 INSTALLATION INSTRUCTIONS…………………………………………………………………………………………..………………….……..5 SPECIFICATIONS FOR DOUBLE SIDEBURNER STRUCTURE....…..…….…………………..………..……………...……5 CONNECTING TO GAS SOURCE…………………………………………………..………………...……………………………………..6 NATURAL GAS CONNECTIONS……………………………………………..….………….….….….……….…….……………………….….6 PROPANE GAS CONNECTIONS………………………………………...….……..…..….…….………….…….…...…….…….…….…..6 OUTDOOR NATURAL GAS DOUBLE SIDEBURNER INSTALLATION SPECIFICATIONS....….….…….…………..…..……7 OUTDOOR PROPANE GAS DOUBLE SIDEBURNER INSTALLATION SPECIFICATIONS....…………………...…...……….8 LP GAS TANK RETENTION..................................9... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS READ CAREFULLY BEFORE ASSEMBLY AND OPERATION OF YOUR DOUBLE SIDEBURNER This double sideburner must be installed in accordance with local codes or, if in an area without local codes, with the latest edition of the National Fuel Gas Code ANSI Z223.1. In Canada, installation must conform to the standard CAN/ CGA 1-b149.1 and/or .2 (Installation Code for Gas Burning Appliances and Equipment) and any local codes. -
Page 4: Natural Gas Safety
SAFETY INSTRUCTIONS (CONT.) NATURAL GAS SAFETY Your natural gas double sideburner is designed to operate on natural gas ONLY, at a pressure of 4” water column (W.C.) regulated at the natural gas regulator and natural gas orifices located inside the ventri tubes. Check with your gas utility for local gas pressure and with your local municipality for building code requirements. -
Page 5: Propane Gas Safety
SAFETY INSTRUCTIONS (CONT.) PROPANE GAS SAFETY Your propane double sideburner is designed to operate on propane gas ONLY, at a pressure of 11” water column (W.C.) when equipped with a propane regulator on the supply line regulated at the residential meter and a propane orifice located inside the ventri tube. Your propane double sideburner is designed to be used with a standard 20 lb gas cylinder and must be constructed and marked in accordance with specifications of the US Department of Transportation for Propane Gas Cylinders. -
Page 6: Installation Instructions
Lower vents must be located within 1 inch from the bottom of the island enclosure to the bottom of the first vent openings and no more than 5 inches from the bottom of the island enclosure to the top of the vent. If not using Bull vents, the vents you use must meet ANSI Standard codes. -
Page 7: Connecting To Gas Source
“OFF” position. NATURAL GAS CONNECTIONS IMPORTANT: Bull Outdoor Products does not recommend the use of any quick connect fittings or lines to the unit. Use of these types of fittings or lines could cause low gas flow and greatly reduce the performance of the unit. -
Page 8: Outdoor Natural Gas Double Sideburner Installation Specifications
INSTALLATION INSTRUCTIONS (CONT.) OUTDOOR NATURAL GAS DOUBLE SIDEBURNER INSTALLATION SPECIFICATIONS NOTE: - Vents must be provided for combustion air and ventilation on both sides of built-in cabinet. - When choosing a location for your double sideburner keep in mind that it should never be located under any overhead combustible construction. - The sides and back of the double sideburner should not be any closer than 21 inches to combustible construction. -
Page 9: Outdoor Propane Gas Double Sideburner Installation Specifications
INSTALLATION INSTRUCTIONS (CONT.) OUTDOOR PROPANE GAS DOUBLE SIDEBURNER INSTALLATION SPECIFICATIONS NOTE: - Vents must be provided for combustion air and ventilation on both sides of built-in cabinet. - When choosing a location for your double sideburner keep in mind that it should never be located under any overhead combustible construction. - The sides and back of the double sideburner should not be any closer than 21 inches to combustible construction. -
Page 10: Lp Gas Tank Retention
INSTALLATION INSTRUCTIONS (CONT.) LP GAS TANK RETENTION If using a LP gas tank, the tank must be properly secured within the structure to prevent being knocked over. The tank retention system must be securely fastened to the bottom of the island with the use of bolts, washers and nuts. There must be a minimum clearance of 2”... -
Page 11: Inspecting / Cleaning Burners And Gas Valves
INSPECTING I CLEANING BURNERS AND GAS VALVES By following these cleaning procedures on a timely basis, your double sideburner will be kept clean and working properly with minimum effort. CAUTION – Always turn off the gas supply prior to clearing your double sideburner. BURNER CLEANING 1. -
Page 12: Igniter Check
INSPECTING / CLEANING BURNERS AND GAS VALVES (CONT.) CAUTION – Always turn off the gas supply prior to clearing your double sideburner. IGNITER CHECK With the control knobs set to “OFF”, check the first igniter for presence of spark at burner. Push control knob in fully and turn slowly about a 1/4 turn to the left (counter-clockwise) until a click is heard;... -
Page 13: Lighting & Operating Instructions
LIGHTING & OPERATING INSTRUCTIONS CAUTION: TO ENSURE YOUR SAFETY, DO NOT OPERATE DOUBLE SIDEBURNER UNTIL YOU FULLY READ AND UNDERSTAND THE INSTRUCTIONS. LIGHTING PROCEDURES Lighting Burner: 1. Become familiar with the safety guidelines at the front of the manual. DO NOT SMOKE WHILE LIGHTING DOUBLE SIDEBURNER OR CHECKING GAS SUPPLY CONNECTIONS! 2. -
Page 14: Cleaning & Maintenance
These chemicals combined with heat and humidity greatly increase the corrosiveness of these chemicals. Regular cleaning is the best way to prevent corrosion and add years of enjoyment to your Bull stainless steel... -
Page 15: Troubleshooting
TROUBLESHOOTING IF DOUBLE SIDEBURNER FAILS TO OPERATE PROPERLY 1. Turn off gas at source, turn control knob to “OFF”, and wait five minutes before trying again. 2. Check gas supply/connections. 3. Repeat lighting procedure. If double sideburner still fails to operate properly, TURN “OFF” GAS AT SOURCE, TURN CONTROL KNOB TO “OFF”, wait for sideburner to cool, and check the following: a. -
Page 16: Parts List
PARTS LIST MODEL #60088 DOUBLE SIDEBURNER STAINLESS STEEL, L.P. (PROPANE) MODEL #60099 DOUBLE SIDEBURNER STAINLESS STEEL, N.G. (NATURAL GAS) REF # PARTS # DESCRIPTION WARRANTY PERIOD 60100 1 Yr 60101 COOKING GRATE 5 Yrs 60111 COOKING GRATE DIVIDER 1 Yr... -
Page 17: Exploded Illustration
EXPLODED ILLUSTRATION... -
Page 18: Limited Warranty
REGISTERING YOUR SIDEBURNER In order to validate your Bull Limited Warranty, you must complete the Warranty Registration Card within 90 days from the Proof of Purchase. You may register your unit either online at www.bullbbq.com or by sending in the completed hard copy along with a copy of the Proof of Purchase to:...
