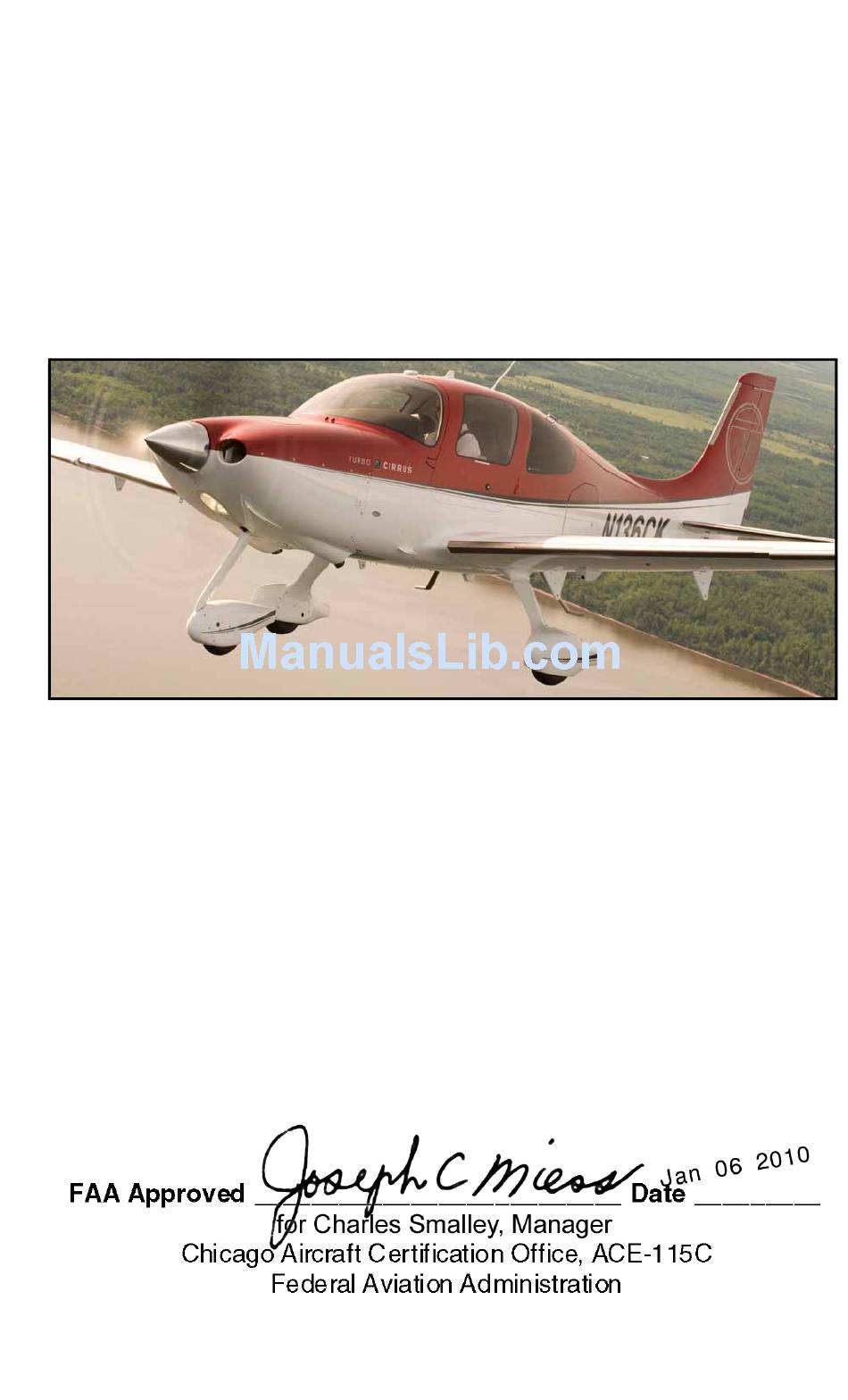

PILOT'S OPERATING HANDBOOK
AND FAA APPROVED
AIRPLANE FLIGHT MANUAL
for the
CIRRUS DESIGN SR22T
A i r c r a f t S e r i a l s S R 2 2 T - 0 0 0 1 & S u b s e q u e n t w i t h
T e l e d y n e C o n t i n e n t a l M o t o r s T u r b o c h a r g e d E n g i n e
FAA Approved in Normal Category based on FAR 23. This document must be carried in
the airplane at all times and be kept within the reach of the pilot during all flight
operations.
THIS HANDBOOK INCLUDES THE MATERIAL REQUIRED TO BE FURNISHED TO
THE PILOT BY FAR PART 23 AND ADDITIONAL INFORMATION PROVIDED BY
CIRRUS DESIGN AND CONSTITUTES THE FAA APPROVED AIRPLANE FLIGHT
MANUAL
Model - Serial Num. SR22T ____________ Registration Num. __________________
P/N 13772-003
Original Issue: January 06, 2010
