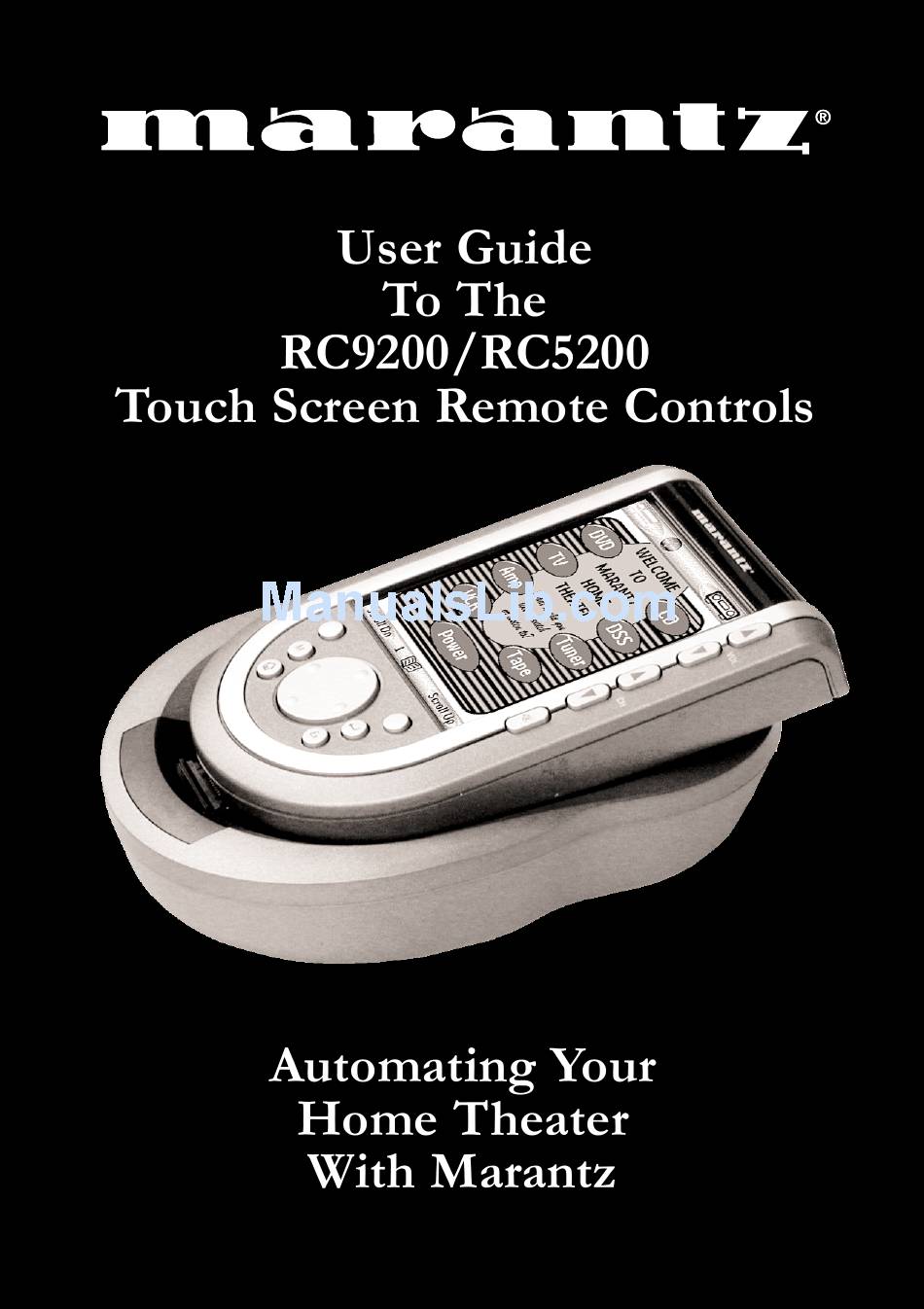

Marantz RC5200 User Manual

Touch screen remote controls
Hide thumbs Also See for RC5200:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC5200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marantz RC5200

Summary of Contents for Marantz RC5200

  • Page 2 RC9200/5200 Remote Control User Guide The information in this manual is copyright-protected. No part of this manual may be copied or reproduced in any form without prior written consent from Marantz America, Inc. MARANTZ AMERICA, INC. CORPORATION SHALL NOT BE LIABLE FOR OMISSIONS OR FOR TECHNICAL OR EDITORIAL ERRORS CONTAINED IN THIS MANUAL.

  • Page 3: Table Of Contents

    Introduction 1. The Marantz RC9200/5200 2. The Battery Getting Started 1. Activating the RC9200/5200 2. Navigating Control Panels 3. Operating a Device 4. Check Battery Life - The INFO Panels 5 The Setup Panels 6. The Mode Menus Customizing Your RC9200/5200 7.

  • Page 4: Introduction

    RC9200/5200 is completely customizable and programmable. You can add devices and functions, relabel buttons, record macros and animate your macros. Although the RC9200/5200 is pre-programmed for Marantz components, a vast collection of built-in tab guided panels with pre- arranged button art enables you to easily choose the perfect interface for any non-Marantz component.

  • Page 5: The Battery

    to scroll to other panels within the Tap the Macro menu Bar: to use your one touch Macro buttons. Tap again and a menu of all of your Macro groups appears. Tap again to select: Use the Control Panel to operate your components Tap the Scroll Arrows: to scroll to other...

  • Page 6: Installing The Battery Pack

    Introduction Installing the Battery Pack 1 Press the latch on the battery cover and remove the battery cover from the Remote Control. 2 Place the battery pack in the battery compartment. 3 Plug the cable of the battery pack in the connector as illustrated. 4 Place the battery cover back on.

  • Page 7: Charging The Remote Control

    Charging the Remote Control For charging the Remote Control you use the docking station. 1 Plug the power adapter into a wall outlet and connect it to the docking station. 2 Place the Remote Control in the docking station. Make sure you hold the Remote Control at an angle of 30°...

  • Page 8: Getting Started

    Getting Started Turning on the Display Tap the screen gently with your finger or a blunt, soft object like a pencil eraser. The display is activated and you see the Home panel. Notes · If the display stays blank or becomes black, adjust the contrast dial on the left side.

  • Page 9: Navigating Control Panels

    Three Divisions of Control Panel Types Your RC9200/5200 is capable of displaying hundreds of different control screens. By grouping them into sensible divisions, it is easy to navigate to the control panel you want. The three main divisions are: — The Home group disp- lays convenient instant jump buttons to the main control panels of your system devices (your VCR, TV, CD...
  • Page 10 Getting Started RC9200/5200 displays Macro buttons. Macro buttons play back a sequence of up to 255 different commands (and panel jumps, which can be pro- grammed to do crude animations or to give messages during the Macro). You can always select the Macro side of the RC9200/5200 by tapping the menu bar to the left.
  • Page 11 These Device buttons perform two actions when pressed: 1 Jumps to the main panel of the Device Group. 2 Changes your home theater receiver/preamp to the appropriate input. See page 30 to program for a non-Marantz receiver/preamp. Jump to a Device Panel Group Without Changing Inputs 1 Pop up the Device menu, by tapping the Device Menu bar.
  • Page 12 Getting Started Using the Scroll Arrows To Scroll to Panels Tap the Scroll arrows to navigate to other panels within the active group (home, macros or devices). Opposite the scroll arrow on the bottom of the screen, the Panel display shows you which panel you are viewing.
  • Page 13 Using Tab Buttons to Jump to Panels All of your device groups have been programmed with “one- touch” jump buttons to all of the panels for that device. Simply touch the tab label and the RC9200/5200 will jump to the appropriate panel.

  • Page 14: Operating A Device

    Marantz receiver/preamp. Should you own another brand, see the programming instructions on page 31-32. Menu, 4 Way Arrows, Channel Up and Channel Down are typically programmed to change with the device selected.

  • Page 15: Check Battery Life - The Info Panels

    Check Battery Life - The Info Panels Access INFO panel display by navigating to the Home panel (tap the Home button), then tapping the INFO button at the top of the screen. The Percentage of battery life. The Percentage of free memory available for new programming. There are two configurations built in to your RC9200/5200.
  • Page 16 Getting Started First setup panel Setting LCD Sleep LCD Light Button Light Touch Button Note: Second setup panel Setting Mode Menu Active SPECIAL NOTE Macro Menu Active Device Menu Active Calibrate Revert* *The Revert button will only appear if one change has been made to the RC9200/520o User Guide Function Sets how long the touchscreen...

  • Page 17: The Mode Menus

    The Mode Menu To help you plan how your RC9200/5200 will operate your home theater system, you should practice using the three mode menus. Working with Modes All customization is done via the three Mode menus. They differ in their capabilities: Macro Side - No IR learning is possible, so there is no LEARN ability.
  • Page 18 Getting Started For labeling buttons and commands. For adding new devices. For deleting buttons, devices and macros. For changing the order in a menu. For selecting the correct ID for the RF Extender To switch to another mode 1 Tap the Mode button the label of the mode you are using.

  • Page 19: Customizing Your Rc9200/5200

    You can choose to manually manage your memory by choosing a smaller template file to program with. There are two configurations built-in. The default Marantz file and the memory saving stripped- down Revert file. The default Marantz file offers these unique features: 75 pre-programmed templates for home theater components.

  • Page 20: Introduction

    3 Use DEL mode to delete all of the device groups that you don’t like (see page 40). 4 Use ADD mode to add the device groups for each Marantz component (see page 35-40). When you are prompted to add with or without RC codes, choose WITH RC CODES.
  • Page 21 Check all of your devices. 12 Switch to LEARN mode and teach the RC9200/5200 all of your non-Marantz components’ RC Codes (see page 28-32). 13 Switching back and forth between USE and LEARN modes, test all codes and reteach as necessary.

  • Page 22: Complex Operation? Macros Or Help

    Marantz builds components that are “macro-friendly”. Instead of a single “power” button, the remote controls have a discrete “On” and a discrete “Off” button. With a Marantz system, you can record a Macro that is very reliable from a series of “On” commands. Take a look at...
  • Page 23 Customizing Your RC9200/5200 the example ALL ON and ALL OFF macros preprogrammed in the default configuration. The problems don’t stop with powering up a system. Often, you will want to construct a macro to watch or listen to a specific source. This may require that both the Television and the Surround Receiver be set to new inputs.

  • Page 24: Programming Help Lists

    Customizing Your RC9200/5200 Programming Help Lists 1 Write a list of all of the actions in the operation you want to record. 2 Gather all of the remote controls you will need for the operation. 3 Navigate to the Device side of the RC9200/5200. 4 Select ADD from the Mode menu.

  • Page 25: Macro/Panel Jump Capabilities

    PC and Marantz RCEdit (see page 47). Macros Perform Jumps to Any Device Panel The Marantz RC9200/5200 has the unique capability of jumping to any device panel during a macro. You can make any or all of the 255 steps a jump to any Device panel.

  • Page 26: Programming Macros & Panel Jumps

    Customizing Your RC9200/5200 Macros Send Commands To Your System You can make any or all of the 255 steps send an remote control command to your system. The step is actually just a recording of the location of any button on any device panel. To record an RC command, you simply navigate to the panel and button you want, then touch it.
  • Page 27 Customizing Your RC9200/5200 and creating a new Macro group. 3 Use DEL mode to delete all of the macro groups that you don’t like (see page 40-42). 4 Use ADD mode to add a new macro group empty of any programming (see page 35-40).
  • Page 28 Customizing Your RC9200/5200 Note Use the Scroll arrows to navigate; the tab style navigational jumps will not work. If you accidentally record a tab button as a macro step, it will do nothing because you cannot alias to a button that jumps. Since it will confuse you to see it in the Macro Edit window, it is best to delete it.

  • Page 29: Macros From Your Home Buttons

    Customizing Your RC9200/5200 Macros From Your Home Buttons It is possible to program a macro to occur when you select a device (the macro will occur both when you press a home button AND when you select the device from the pull down Device menu). To program: 1 Navigate to the Device side of the RC9200/5200.

  • Page 30: Reference

    Reference Programming Buttons You program the RC commands (RC for Remote Control) by transmitting infrared signals from your existing remote controls to the RC9200/5200’s learning eye. To do this, place the RC9200/5200 and the device’s remote control on a flat surface, 1 to 100cm (1/2 to 36 inches) apart.
  • Page 31 The following buttons can be programmed: control panel buttons, Device menu items and Direct Access buttons. You cannot program Home menu buttons directly. You have to program them via the Device menu (see page 30). The RC9200/5200 also offers empty control panel buttons which you can program and label as existing buttons.
  • Page 32 Reference Programming The HOME Buttons to Switch Sources Note When you teach a command as a Device Action, this command is automatically assigned to the corresponding button in the Home menu AND to the act of selecting the Device from the pull down Device Menu.
  • Page 33 Programming Hard Buttons Globally And/Or Locally Per Device The Hard buttons are defined as the five hard buttons on the right side of the screen (Mute, Channel Up/Down, Volume Up/Down) and the nine buttons below the screen (don’t count Home, since you cannot program it).

  • Page 34: Labeling Buttons, Frames And Menu Items

    You cannot label Home menu buttons directly. You have to label them via the Device menu (see page 34). You can label part of the Home panel greeting: the words “Welcome”, “To”, “Marantz” and “Home Theater” can be relabeled to personalize your RC9200/5200. User Guide...
  • Page 35 Labeling a Button or a Text Frame 1 Navigate to the panel containing the button/frame you want to label. 2 Switch to Label mode via the Mode button 3 Tap the button/frame you want to label. The display shows a “virtual auto-zooming”...
  • Page 36 Reference For capital letters and symbols, press the Left hard button repeatedly to display the keyboard you want. 5 Tap Enter to save the changes and return to the panel you were -or- Tap Cancel to return to the panel you were at without saving changes.

  • Page 37: Working With Device And Macro Groups

    Choose this option to add a completely new device. You will be able to choose from a list of preprogrammed templates with or without Marantz RC codes. A drop down scrollable list will appear. As you scroll down the list, you will notice Device type dividers and devices you can add.
  • Page 38 (see pages 15,17 and 60). Receivers are both AMPS and TUNERS - Since you typically use the two sections of your Marantz receiver at different times, we have separated them into two devices. You will find the amp section in AMPS and the Tuner section in TUNERS.
  • Page 39 All of the devices shown are Marantz model #’s with the exception of the first division, called “Other.” Below the “Other” division are three device templates that are meant for other purposes. DSS - Since Marantz does not make a DSS receiver (yet!), we included a template.
  • Page 40 Reference Creating a New Device From a Marantz Template If you have the exact Marantz model # in the list, add the device with RC codes. If you have a Marantz component not listed, or your component is not Marantz, add the device without RC codes and use the LABEL and LEARN modes to customize it to your liking.
  • Page 41 Copy Existing Device Choose this option to copy a device that is already active (you are already using it). It is often useful to have two almost identical device groups for your Television. The only difference between the two is one would have the Vol+ and Vol- Direct Access buttons programmed locally with the televisions internal volume + and - commands.

  • Page 42: Deleting And Restoring

    Reference Note The device or macro tab is active when the name of a device or macro is displayed. 2 Switch to Move mode via the Mode button The RC9200/5200 displays the menu. 3 Tap the menu item of your choice. The menu item is highlighted.
  • Page 43 Control panel button: The button disappears from the display. Left or Right button command: The corresponding label disappears from the display. Direct-access button: The button becomes inactive. 4 Delete all the items you want and return to Use mode via the Mode button.
  • Page 44 Reference Warning Do Not Delete the Left and Right hard Buttons! Remember, your RC9200/5200 is programmed at the factory with the Browse feature. If you accidentally reprogram the Left/Right hard buttons from the home panel, you cannot restore them with the remote control.

  • Page 45: Recording Macros

    Recording Macros Edit Window Notation Before you begin to program a Macro, study the notation used in the EDIT Window. Each type of action has its own notation. User Guide Reference TV - When only a device name is listed, the macro step will be a Device Action (the action that occurs when the Device is selected, which is typically the preamp/receiver’s...
  • Page 46 Reference Recording A Macro Step By Step To record a macro, there must be at least one macro group in the Macro menu. To create these groups, see page 35-40. Read the instructions for Adding Device Groups (see page 35-36), then note the differences when Adding Macro Groups (see page 39).

  • Page 47: Editing Macros

    The macro is ready to be used. There are two extra commands you can record as any step in a macro: Recording a Device Action (Source Switching or Input) To record a Device menu item containing a source switching command, open the Device menu, hold down the Right button (labeled Action) and tap the device you want to switch to.

  • Page 48: Organizing Macros Into Groups

    Reference commands to it, allowing the device to warm up): Tap Delay. delay. Use the arrow buttons right place. 5 Press the Left button to close the macro. A confirmation screen appears where you can save or cancel the macro. 6 Tap Save.

  • Page 49: Using The Remote Control With Radio Frequency

    Warning To use the Remote Control with radio frequency (RF) you need an RF-77 RF Extender, which is only included with the RC9200. It is an optional accessory for the RC5200. By default, the Remote Control uses infrared (IR) signals to operate devices.
  • Page 50 Reference Changing the Remote Control’s RF IR Settings All devices are set up by default to work with IR signals. To be able to operate one or more devices with RF signals, you have to change the Remote Control’s RF IR settings for those devices. 1 Make sure the Device tab is active.The Device tab is active when the name of a device is displayed at the right side of the touch screen .

  • Page 51: Choosing Another Channel

    8 Repeat instructions 1 to 3 for all devices for which you want to change the RF IR settings. 9 Tap Close. The Remote Control switches back to Use mode. The Remote Control is configured to operate the devices you have set with RF signals.

  • Page 52: Rcedit

    RCEdit Touch Screen Setup is the RC9200/5200’s companion software that you can download from the following internet address: http://www.marantz.com With RCEdit Touch Screen Setup you can: Upload and download new configurations to and from your Remote Control.

  • Page 53: System Requirements

    Import new graphics to create new buttons and designs. Personalize configuration files to optimize the use of your Remote Control. Make any button a macro. Share your work with other enthusiasts on the internet. Create animated slide shows using your own photos or art. When you become familiar with RCEdit, you can achieve results like these: By Conrad Jacobson...

  • Page 54: Troubleshooting

    Check if the button you are trying to use is programmed properly (see page 18). Check if your device understands these particular Marantz infrared codes. Re-add the device group with the correct model number (see page 36).
  • Page 55 Insert delays to allow devices to start up properly (see page 26). Check if you have included inactive buttons in your macro. Check if you haven’t reprogrammed the buttons. Macros do not store commands, they store button locations. If you reteach a button, the macro will execute the newly learned code, not the code that you taught to the original button.

  • Page 56: Recharging Problems

    Troubleshooting need the Marantz factory default configuration, you will have to use RCEdit with a Windows PC to restore it (see page 57). Remote Control error messages If one of the following error messages occurs, please contact your Marantz dealer or Marantz customer service: Can’t open configuration file...

  • Page 57: Frequently Asked Questions

    800kb of memory by using the REVERT feature. By using REVERT, you will delete the majority of Marantz RC codes and all of the pre- programmed example macros. The template files that remain after...
  • Page 58 Frequently Asked Questions WARNING Procedure for reverting to the memory saving REVERT file: 1 Navigate to the HOME panel. 2 Touch the Mode button. The Mode Menu appears. 3 Touch the Setup button. The first setup panel appears. 4 Scroll to the second setup panel. 5 Tap the Revert button.

  • Page 59: Overview Of Symbols

    Overview of Symbols Pause Stop Play, Normal run, normal speed Reverse Play, Normal run, normal speed Fast Forward, Scan Forwards, Fast run, fast speed Rewind, Scan Backwards, Fast run, fast speed Slow Motion Forwards, Slow run, slow speed Slow Motion Backwards, Slow run, slow speed Eject, Open/Close Record, general Key, Lock...

  • Page 60: Specifications

    Overview of Symbols Page number up Page number down Page enlargement TV and text mixed 1st or 2nd language Last view, previous program Power, Stand-by Zone focus: long distance Zone focus: very short distance Single or multi-digit selection Brightness, brilliance Contrast Brightness/contrast Color saturation...

  • Page 61: Specifications

    455 KHz can also be succesfully learned). Learning distance 2.5 cm (1 inch) up to 100 cm (3 feet) Memory 2MB (RC5200) 8 MB (RC9200) non-volatile flash memory (memory is kept with no battery) 512 K SRAM Batteries 4 AA 1.5 V batteries or one 4.8 V rechargeable battery pack...

  • Page 62: The Revert Configuration

    The Revert Configuration Why Use The Revert Configuration By deleting the Marantz factory default, you will add 400K of free memory. The Revert configuration includes all of the button art and fundamental features of the Default configuration; however, it does not have all of the pre-programmed Marantz RC codes, nor does it have all of the demonstration macro groups (Help, FAV CD, etc.).

  • Page 63: Index

    Add Mode 16 Switch Modes, 16 Anchored Macros 21 Backlight button, 2 Button Light Timeout 14 Calibrate 14 Cloning 18 Contrast Dial, 2 Control Panel Buttons, 3 Control Panel, 7 customizing, 18 Delays 24 Delete Mode, 16 Switch Modes, 16 Device menu bar, 3 Devices, 7 Direct Access buttons, 2...
  • Page 64 Index from a home button 26 From Device Buttons 23 jumps to panels 23 moving commands 26 RC Commands 24 Step by Step 24 Use the Scroll arrows 26 Mode Button, 3 Switch Modes, 16 Modes, 6 Switch Modes, 16 Working with Modes, 15 Move Mode 16 Switch Modes, 16...

  • Page 65: Service And Support

    Service and Support For service and support, please contact Marantz customer service at 1-800-447-1970. When you contact Marantz customer service, you will be asked for the technical information listed on the Info panel. To view this information, follow these steps.
  • Page 66 Printed in the USA...
