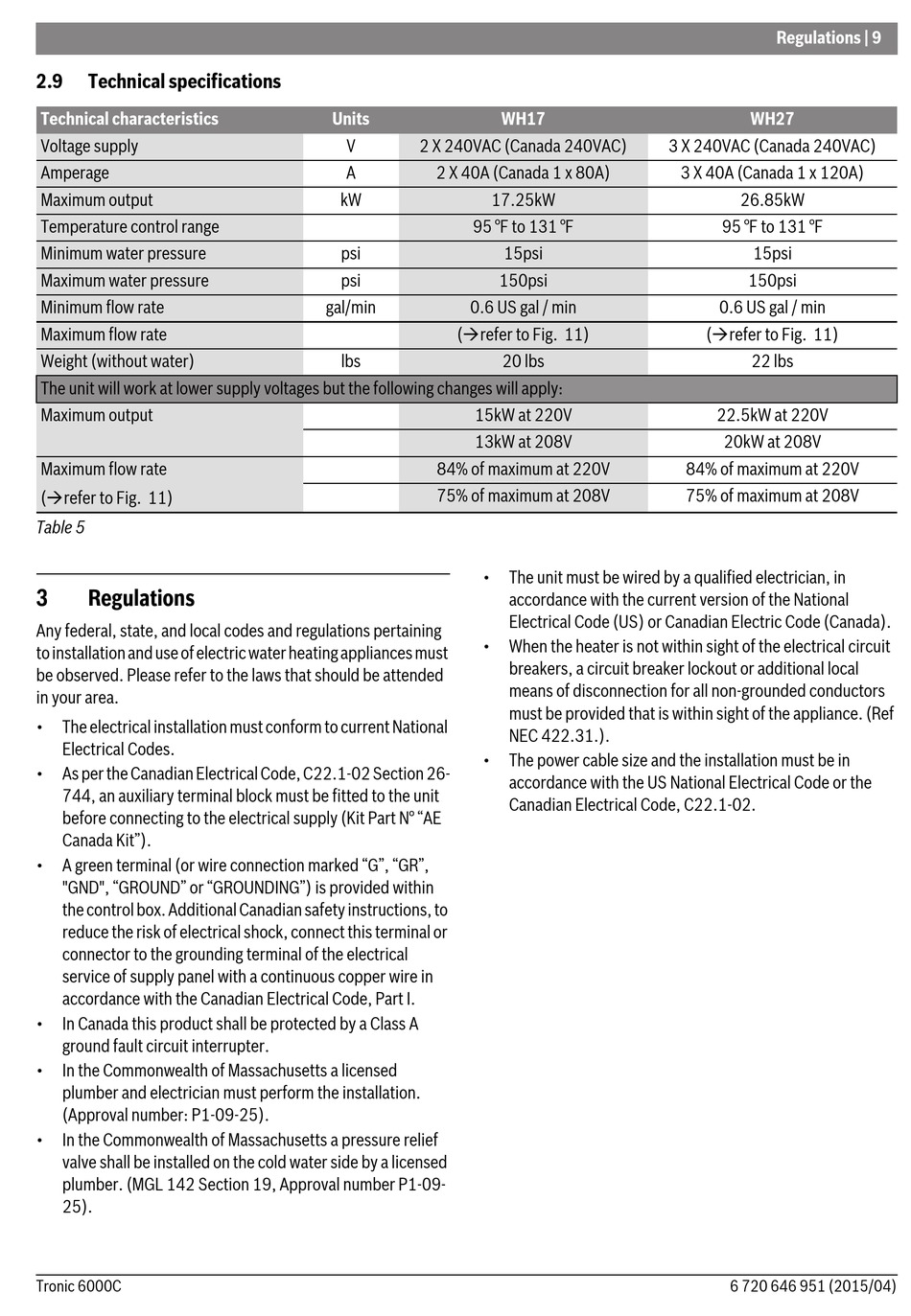

2.9

Technical specifications

Technical characteristics
Voltage supply
Amperage
Maximum output
Temperature control range
Minimum water pressure
Maximum water pressure
Minimum flow rate
Maximum flow rate
Weight (without water)
The unit will work at lower supply voltages but the following changes will apply:
Maximum output
Maximum flow rate
(refer to Fig. 11)
Table 5
3

Regulations

Any federal, state, and local codes and regulations pertaining
to installation and use of electric water heating appliances must
be observed. Please refer to the laws that should be attended
in your area.
The electrical installation must conform to current National
Electrical Codes.
As per the Canadian Electrical Code, C22.1-02 Section 26-
744, an auxiliary terminal block must be fitted to the unit
before connecting to the electrical supply (Kit Part N° "AE
Canada Kit").
A green terminal (or wire connection marked "G", "GR",
"GND", "GROUND" or "GROUNDING") is provided within
the control box. Additional Canadian safety instructions, to
reduce the risk of electrical shock, connect this terminal or
connector to the grounding terminal of the electrical
service of supply panel with a continuous copper wire in
accordance with the Canadian Electrical Code, Part I.
In Canada this product shall be protected by a Class A
ground fault circuit interrupter.
In the Commonwealth of Massachusetts a licensed
plumber and electrician must perform the installation.
(Approval number: P1-09-25).
In the Commonwealth of Massachusetts a pressure relief
valve shall be installed on the cold water side by a licensed
plumber. (MGL 142 Section 19, Approval number P1-09-
25).
Tronic 6000C
Units
V
2 X 240VAC (Canada 240VAC)
A
2 X 40A (Canada 1 x 80A)
kW
17.25kW
95 °F to 131 °F
psi
psi
gal/min
0.6 US gal / min
(refer to Fig. 11)
lbs
15kW at 220V
13kW at 208V
84% of maximum at 220V
75% of maximum at 208V
WH17
3 X 240VAC (Canada 240VAC)
15psi
150psi
20 lbs
The unit must be wired by a qualified electrician, in
accordance with the current version of the National
Electrical Code (US) or Canadian Electric Code (Canada).
When the heater is not within sight of the electrical circuit
breakers, a circuit breaker lockout or additional local
means of disconnection for all non-grounded conductors
must be provided that is within sight of the appliance. (Ref
NEC 422.31.).
The power cable size and the installation must be in
accordance with the US National Electrical Code or the
Canadian Electrical Code, C22.1-02.
Regulations | 9
WH27
3 X 40A (Canada 1 x 120A)
26.85kW
95 °F to 131 °F
15psi
150psi
0.6 US gal / min
(refer to Fig. 11)
22 lbs
22.5kW at 220V
20kW at 208V
84% of maximum at 220V
75% of maximum at 208V
6 720 646 951 (2015/04)
