❑ Cut away the excess pushrod wire, then install and tighten the servo horn retaining screw to hold the servo horn securely to
the servo.
❑ Open and close the throttle several times to ensure that the carburetor opens and closes completely and without binding. You
may need to adjust your transmitter EPA settings to achieve perfect settings.
❑ (1) 190cc Fuel Tank
❑ (3) Aluminum Tubing
❑ (1) Rubber Stopper
❑ (1) Large Metal Plate
❑ # 2 Phillips Head Screwdriver
❑ Modeling Knife
❑ Scissors

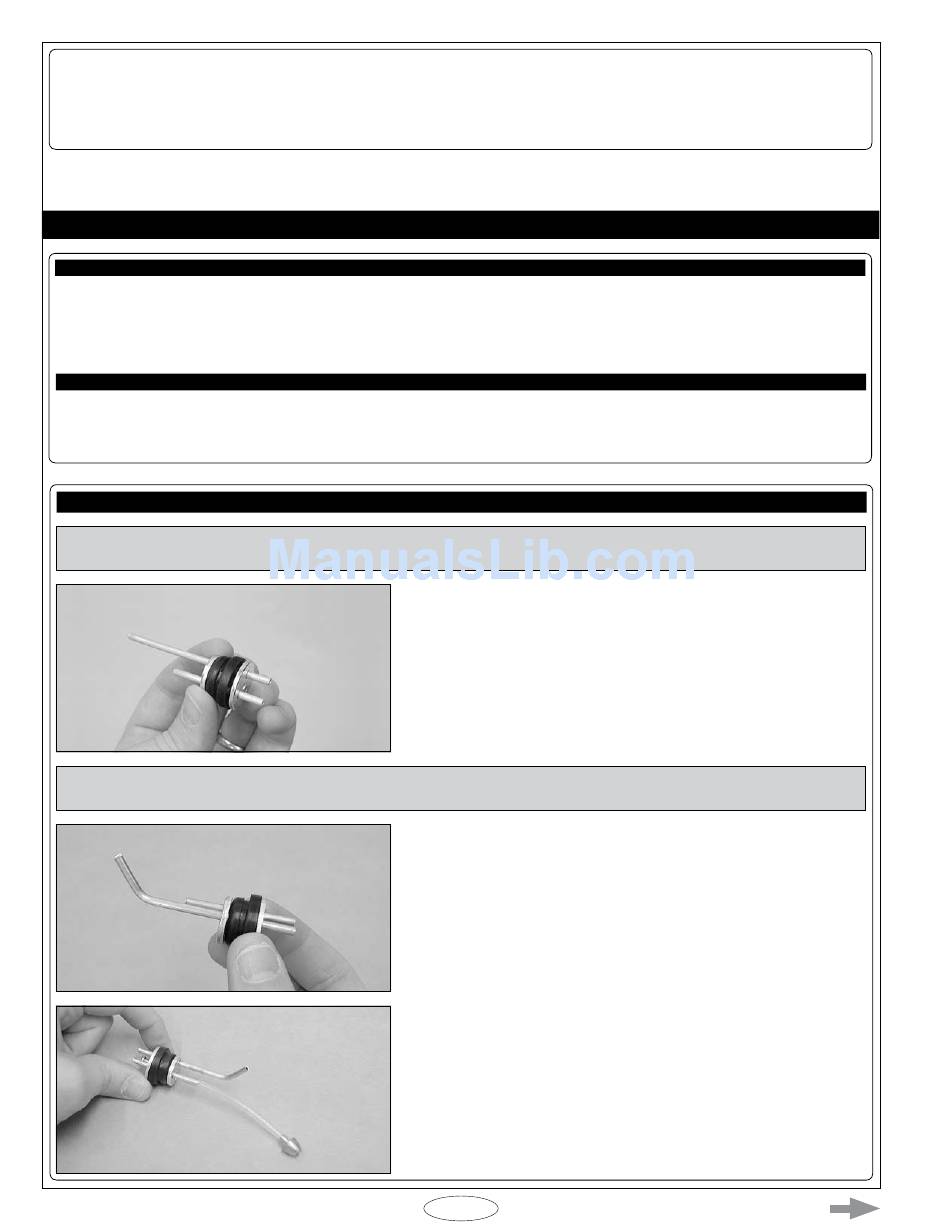

step 1: asseMBLing the ruBBer stopper
IMPORTANT Discard the shortest aluminum tube, then use 220 grit sandpaper to lightly sand away any burrs that might be on
the ends of the remaining two aluminum tubes.
IMPORTANT When the stopper assembly is installed in the fuel tank in the next procedure, the top of the vent tube should rest just
below the top of the fuel tank. The top of the fuel tank is a shorter distance from the fuel tank opening than the bottom is.

FUEL TANK ASSEMBLY AND INSTALLATION

YOU'LL NEED THE FOLLOWINg PARTS FROM THE KIT:
YOU'LL NEED THE FOLLOWINg TOOLS AND SUPPLIES:
❑ Push the two aluminum tubes through the rubber stopper.
❑ Slide the large diameter metal plate over the tubes at the front of the
rubber stopper, and slide the small diameter metal plate over the tubes at
the rear of the rubber stopper.
❑ Measure the distance that the two aluminum tubes protrude from the front
of the stopper assembly. This distance should be 3/8" (10mm).
❑ Carefully bend the longer of the two aluminum tubes up at a shallow
angle, being careful not to kink the tubing as you bend it.
❑ Secure one end of the silicone fuel tubing onto the end of the clunk.
❑ Slide the silicone fuel tubing, with the clunk attached, onto the end of the
aluminum fuel pick-up tube (straight tube). Adjust the length of the silicone
tubing until the end of the clunk is 3-1/4" (83mm) back from the rear of the
stopper assembly.
Page
❑ (1) Small Metal Plate
❑ (1) Silicone Fuel Tubing with Clunk
❑ (1) M3 x 18mm Machine Screw
❑ Straight Edge Ruler
❑ Pencil
❑ 220 Grit Sandpaper with Sanding Block
