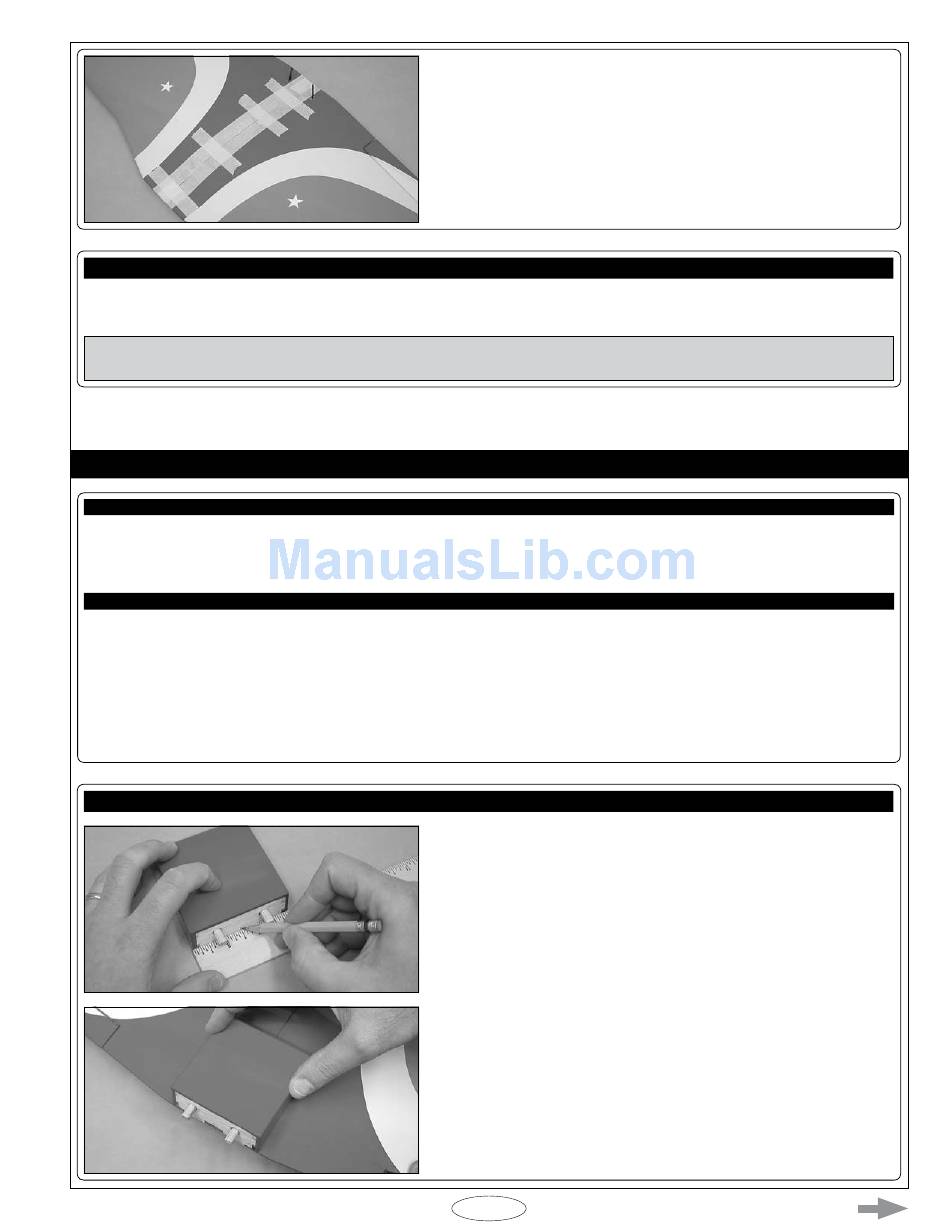

step 4: checKing the Wing center-section joint
❑ Once the epoxy has fully cured, remove the masking tape and double-check the center-section joint. If any gaps are present, mix
a small quantity of 30 minute epoxy and carefully fill any remaining gaps.
IMPORTANT Do not omit this procedure. The wing panels should fit together tightly, but it's possible to have some small gaps
that appear after the epoxy has cured. To make the wing center-section joint as strong as possible, it's important to fill any gaps.
❑ (1) Fuselage
❑ (1) Radiator Scoop
❑ (1) Wing-Screw Doubler
❑ 30 Minute Epoxy
❑ Thick C/A
❑ # 2 Phillips Head Screwdriver
❑ Modeling Knife
❑ Straight Edge Ruler
❑ Pencil
❑ Airplane Stand
STEP 1: INSTALLINg THE RADIATOR SCOOP
❑ Slide the two wing panels together and realign them. Quickly wipe away
any excess epoxy, using a paper towel and rubbing alcohol, and use pieces of
masking tape to hold the two wing panels aligned until the epoxy fully cures.

Wing Mounting

YOU'LL NEED THE FOLLOWINg PARTS FROM THE KIT:
❑ (1) M3 x35mm Machine Screw
❑ (1) M3 Flat Washer
YOU'LL NEED THE FOLLOWINg TOOLS AND SUPPLIES:
❑ 220 Grit Sandpaper w/Sanding Block
❑ Masking Tape
❑ Paper Towels
❑ Rubbing Alcohol
❑ Epoxy Mixing Sticks
❑ Epoxy Mixing Cups
❑ Carefully measure and draw a centerline mark on the back edge of the
radiator scoop.
❑ Place the radiator scoop on the bottom of the wing and align it. When
aligned properly, the centerline you drew on the back edge of the radiator
scoop should be lined up with the centerline of the wing (the wing glue joint)
and the back edge of the radiator scoop should be even with the trailing edge
of the wing.
❑ When satisfied with the alignment, hold the radiator scoop firmly in place
and aligned using a couple of pieces of masking tape.
