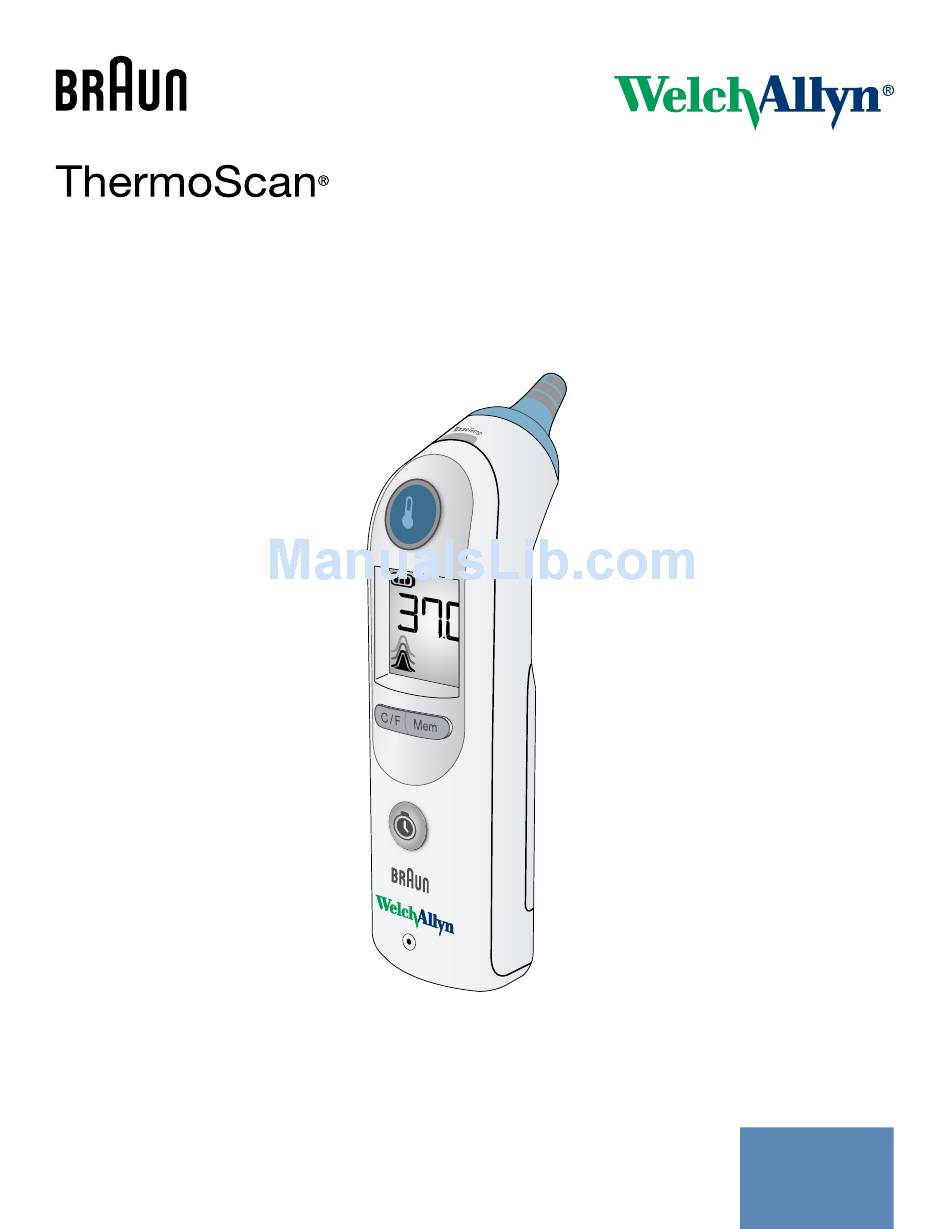

PRO 6000 Ear thermometer
Service documentation
This product is manufactured by Kaz USA, Inc. under license to the 'Braun' trademark.
'Braun' is a registered trademark of Braun GmbH, Kronberg, Germany.
ThermoScan is a registered trademark of Helen of Troy Limited and its affiliates.
PRO 6000
31IMP6SM190
REV8 16JUN15

Advertisement

loading

Related Manuals for Braun ThermoScan PRO 6000

Summary of Contents for Braun ThermoScan PRO 6000

  • Page 1 PRO 6000 Ear thermometer Service documentation This product is manufactured by Kaz USA, Inc. under license to the ‘Braun’ trademark. ‘Braun’ is a registered trademark of Braun GmbH, Kronberg, Germany. ThermoScan is a registered trademark of Helen of Troy Limited and its affiliates.

  • Page 2: General Information

    The document will be used to standardize the procedure of checking the thermometer accuracy. 2.0 General information The Braun ThermoScan® thermometer is a clinical grade ear thermometer indicated for the intermittent measurement of human body temperature in patients of all ages in a professional use environment.
  • Page 3 2.2 Serial number encoding Serial number location To locate the serial number, open the battery door and then remove the batteries and set aside. The serial number is located on the left side of the battery compartment. Interpreting the serial number 00115 k 10101 A: Julian manufacture date: Represents the first 5 numerals of the serial number.

  • Page 4: Material Number

    In addition to the PRO 6000 thermometer, the following test equipment and materials are available from Welch Allyn: Material number Description 01802-110 Tester, calibration, 9600 Plus 06000-005 Braun PRO 6000 5k pc pkg (MN) 06000-801 Braun PRO 6000 800 pc pkg (MN) 06000-800 Braun PRO 6000 800 pc pkg (EU) Changing the calibration set point temperature Verify the Welch Allyn 9600 Plus Calibration Tester(s) used to perform this check has been calibrated in the last 12 months.
  • Page 5 5 minutes. Do not use any chemical other than alcohol to clean the probe window. Ž Place the Braun ThermoScan PRO 6000 in calibration mode using the following steps: a. With the thermometer in sleep mode, press and release the C/F button C / F b.
  • Page 6 ‘ Place the probe firmly into the ear device port. ’ Wait approximately three seconds, press the thermometer Measure button, and watch for the Measure light to flash “ Leave the thermometer in the 9600 Plus Calibration Tester until you hear a beep.  Remove the PRO 6000 Thermometer from the 9600 Plus Calibration Tester and read the temperature in the thermometer’s display.

  • Page 7: Interpreting Results

    6.0 Interpreting results 6.1 The thermometer is within calibration range if the measured values are at: Tenth degree Accuracy range with probe cover 36.0°C ±0.2°C (96.8°F ±0.4°F) 38.5°C ±0.2°C (101.3°F ±0.4°F) 41°C ±0.2°C (105.8°F ±0.4°F) Hundredth degree (high resolution) The smallest significant digit is the tenths digit (0.X), therefore when interpreting data at the hundredths digit (0.XX) the reading must be rounded to the nearest tenth prior to interpretation.
  • Page 8 7.0 Additional display screens in calibration mode High resolution reading: The normal resolution of the thermometer is shown to the tenth of a degree (Celsius or Fahrenheit). If resolution to the hundredth of a degree is desired, upon completion of a reading press and release the Timer button. The “CAL” display will change to “hr”...
