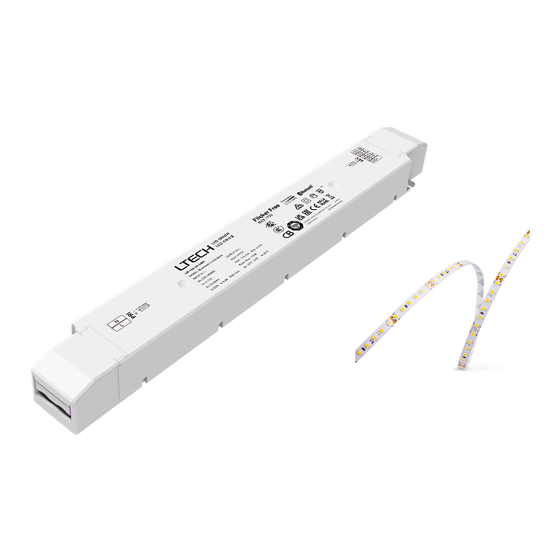

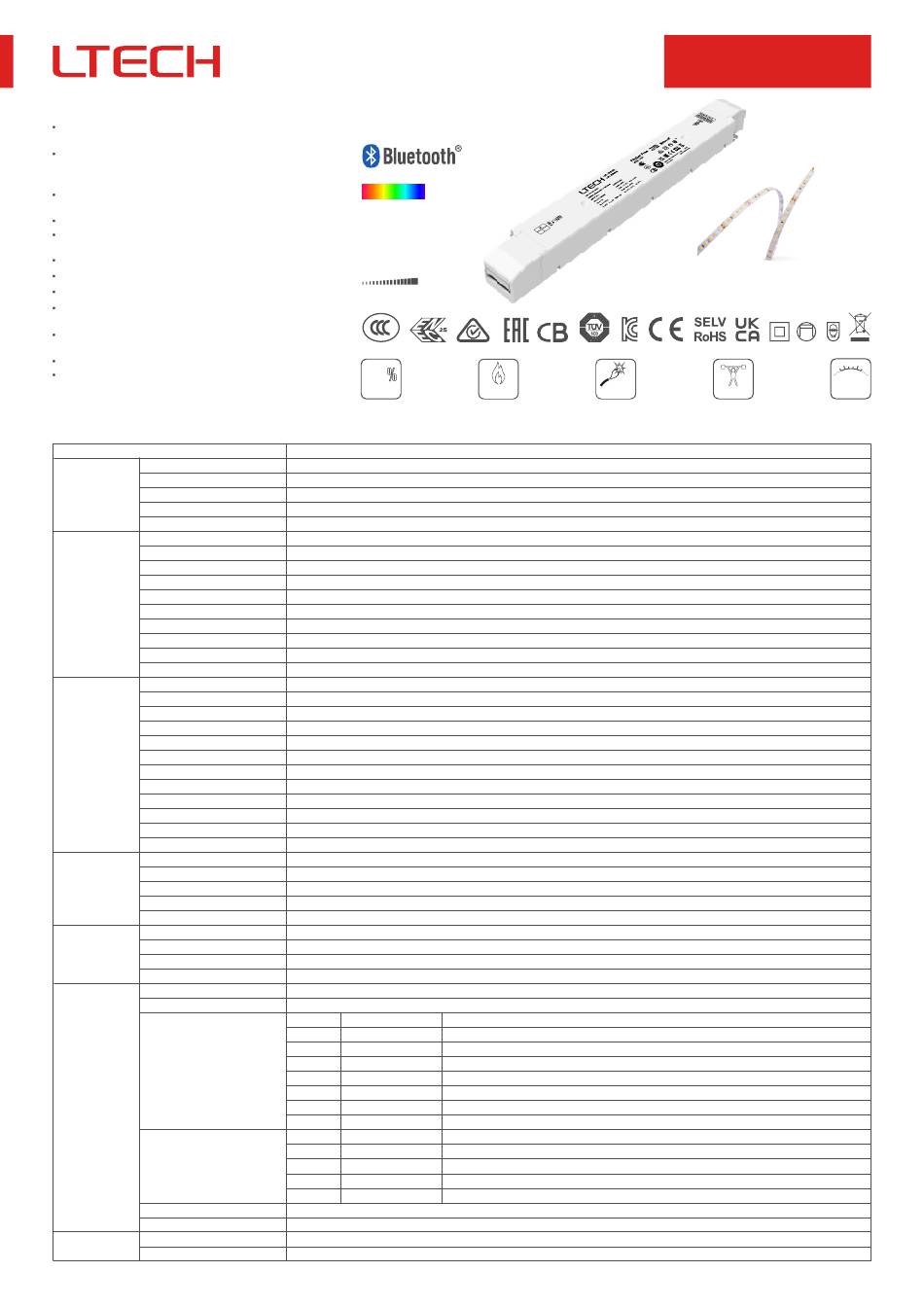

Ltech LM-150-24-G4B1 Manual

Intelligent Full Color RGBW LED Driver
Small size and light weight. The housing is made from V0 flame
retardant PC materials that SAMSUNG/COVESTRO uses.
The clamshell design and screwless type for strain-relief. The
design
of dismountable end cap allows you to adjust the length of housing
depending on your needs.
Bluetooth 5.0 SIG Mesh with high networking capability is reliable
and stable.
Gain control on iOS or Android devices through Bluetooth connection.
With soft-on and fade-in dimming function, enhancing your visual
comfort.
Dimming from 0~100%, down to 0.1%.
Comply with the EU's ErP Directive, standby power consumption<0.5W.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the life
of the LED driver.
Overheat, over voltage , overload, short circuit protection and automatic
recovery.
Up to 50,000-hour life time.
2-year warranty (Rubycon capacitor).
Technical Specs
Model
Output Type
Dimming Interface
Features Output Feature
Protection Grade
Insulation Grade
Output Voltage
Output Voltage Range
Output Current


Output Power
Output Power Range
OUTPUT


Strobe Level
Dimming Range
Overload Power Limitation
Ripple
PWM Frequency
DC Voltage Range
AC Voltage Range
Rated Voltage
Frequency
Input Current
Power Factor
INPUT
THD
Efficiency (typ.)
Standby power consumption
Inrush Current
Anti Surge
Leakage Current
Working Temperature
Working Humidity
Storage Temperature/Humidity
ENVIRONMENT
Temperature Coefficient
Vibration
Overheat Protection
Overload Protection
PROTECTION
Short Circuit Protection
Overvoltage Protection
Withstand Voltage
Isolation Resistance
Safety Standards
SAFETY
&
EMC
EMC Emission
EMC Immunity
Strobe Test Standard
Life Time
OTHERS
Warranty
The driver is suitable for connecting resistor current-limiting LED fixture (e.g. LED strip). The inrush current will be dozens of times increased if connecting built-in constant current IC current-limiting LED fixtures, the driver will activate the
overloaded protection (hiccups flickering). When you order, please remark controlling the constant current LED fixture (e.g. MR16 lamp, underground light, LED wall washer, constant current LED strip, etc.), so that we can prepare them with
special procedures.

(Constant Voltage)


DIM / RGBW
Flicker-free
IEEE 1789
Achieve the high frequency exemption level
Dimmable:
0.1%-100%
The certification icon represents on-going certification applications only, and final certification qualification is subject to actual products.
0.1
Dimming Dept
LM-150-24-G4B1
Constant Voltage
Bluetooth 5.0 SIG Mesh
Isolation
IP20
Class II (Suitable for class I /II/III light fixtures)
24Vdc
24Vdc
±
0.5Vdc
Max. 6.25A (1.56Ax4CH)
Max. 150W
0~150W
High frequency exemption level
0~100%, down to 0.1%
≥102%
Switch ripple≤150mV, noise≤300mV
3600Hz
200-280Vdc
198-264Vac
220-240Vac
50/60Hz
≤0.75A/230Vac
PF>0.98/230Vac (at full load)
THD<6%@230Vac (at full load)
93%
<0.5W
Cold start 45A@230Vac (Test twidth=840us tested under 50% Ipeak)
L-N: 2KV
Max. 0.5mA
ta: -20
~
50°C


tc: 85°C
20
~
95%RH, non-condensing
-40
~
80°C, 10~95%RH
±0.03%/°C (0-50°C)
10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
Shut down the output when current load≥102%, and recover automatically
Enter hiccup mode if short circuit occurs, and recover automatically
Shut down the output when non-load voltage≥28V, and recover automatically
I/P-O/P: 3750Vac
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
CCC China GB19510.1, GB19510.14
TUV Germany EN61347-1, EN61347-2-13, EN62493
CB CB member states IEC61347-1, IEC61347-2-13
EN61347-1, EN61347-2-13, EN62384, EN61547
CE European Union
KC Korea KC61347-1, KC61347-2-13
EAC Russia IEC61347-1, IEC61347-2-13
RCM Australia AS61347-1, AS61347-2-13
Europe
EMEC EN61347-1, EN61347-2-13, EN62384
CCC China GB/T17743, GB17625.1
CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC Korea KN15, KN61547
EAC Russia IEC62493, IEC61547, EH55015
RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547
EN61000-4-2,3,4,5,6,8,11, EN61547
IEEE 1789
50000h
2 years
1
LM-150-24-G4B1
Overheat
Short Circuit
Protection
Protection
Bluetooth 5.0 SIG Mesh
Over Voltage
Over Load
Protection
Protection
www.ltech-led.com
