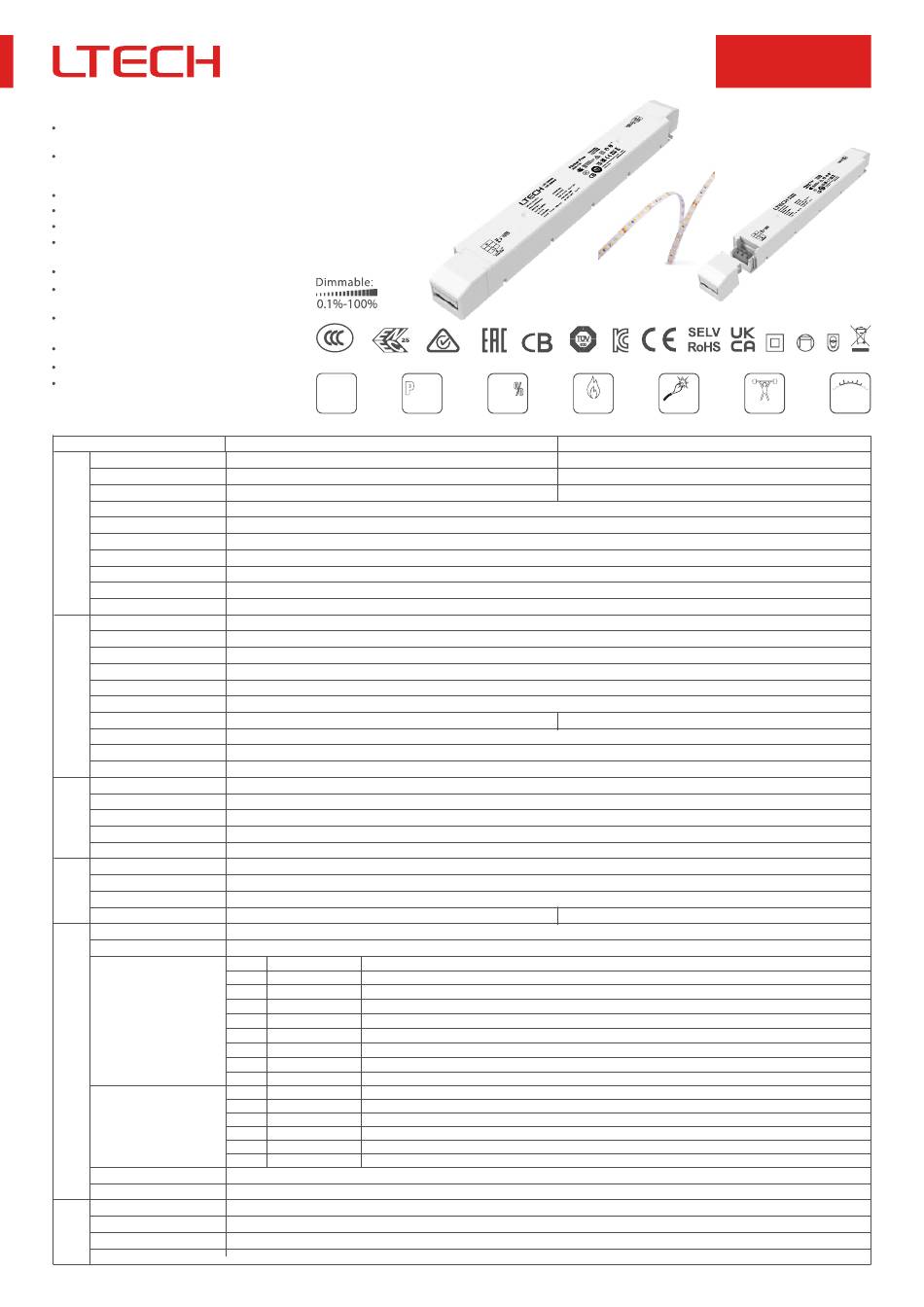

Ltech LM-150-24-G1T2 Quick Start Manual

Intelligent LED Driver
The housing is made from V0 flame retardant PC materials that
SAMSUNG/COVESTRO uses.
The clamshell design and screwless type for strain-relief. The design
of dismountable end cap allows you to adjust the length of housing
depending on your needs.
With soft-on and fade-in dimming function, enhancing your visual comfort.
High frequency exemption level.
Dimming from 0~100%, down to 0.1%.
Support Leading edge (Triac), Trailing edge (ELV) and
Push DIM.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently
protects the life of the LED driver.
Overheat, over voltage , overload, short circuit protection
and automatic recovery.
Suitable for Class Ⅰ /Ⅱ/Ⅲ indoor light fixtures.
Up to 50,000-hour life time.
5-year warranty (Rubycon capacitor).
Technical Specs
Model
Output Voltage
Output Voltage Range
Output Current


Output Power
Output Power Range


OUTPUT
Strobe Level
Dimming Range
Overload Power Limitation
Ripple
PWM frequency
Dimming Interface
Input Voltage
Frequency
Input Current
Power Factor
INPUT
THD
Efficiency (typ.)
Inrush Current
Anti Surge
Leakage Current
Working Temperature
Working Humidity
ENVIRONMENT
Storage Temperature,Humidity
Temperature Coefficient
Vibration
Overheat Protection
Overload Protection
PROTECTION
Short Circuit Protection
Overvoltage Protection
Withstand Voltage
Isolation Resistance
Safety Standards
SAFETY
&
EMC
EMC Emission
EMC Immunity
Strobe Test Standard
Gross weight(G.W)
Dimensions
OTHERS
Package size
Carton Size
The driver is suitable for connecting resistor current-limiting LED fixture (e.g. LED strip). The inrush current will be dozens of times increased if connecting built-in constant current IC current-limiting LED fixtures, the driver will activate the
overloaded protection (hiccups flickering). When you order, please remark controlling the constant current LED fixture (e.g. MR16 lamp, underground light, LED wall washer, constant current LED strip, etc.), so that we can prepare them with
special procedures.
( Constant Voltage)
Flicker-free
IEEE 1789
Achieve the exemption level.
The certification icon only represents that the product is in the process of this series of certification applications, certification qualifications to the product shall prevail.
Triac/ELV
Push DIM
LM-150-24-G1T2
24Vdc
24Vdc
±
0.5Vdc
Max. 6.25A
Max. 150W
0~150W
High frequency exemption level
0~100%, down to 0.1%
≥102%
≤200mV
3600Hz
Triac/ELV, Push DIM
220-240Vac
50/60Hz
≤0.75A/230Vac
PF>0.98/230Vac (at full load)
THD＜6%@230Vac (at full load)
91%
Cold start 45A/230Vac
L-N: 2KV
Max. 0.5mA
ta: -20
~
50°C


tc: 90°C
20
~
95%RH, non-condensing
-40
~
80°C, 10~95%RH
±0.03%/°C(0-50°C)
10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
Shut down the output when current load≥102%, and recover automatically
Enter hiccup mode if short circuit occurs, and recover automatically
Shut down the output when non-load voltage≥28V, and recover automatically
I/P-O/P: 3750Vac
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
GB19510.1， GB19510.14
CCC China
TUV Germany EN61347-1， EN61347-2-13， EN62493
CB CB member states IEC61347-1， IEC61347-2-13
EN61347-1， EN61347-2-13， EN62384， EN61547
CE European Union
KC Korea KC61347-1， KC61347-2-13
EAC Russia IEC61347-1， IEC61347-2-13
RCM Australia AS
61347-1， AS
61347-2-13
Europe
EMEC EN61347-1， EN61347-2-13， EN62384
Britain
BS EN 61347-2-13:2014+A1:2017， BS EN 61347-1:2015+A1:2021
UKCA
China GB/T17743， GB17625.1
CCC
CE European Union EN55015， EN61000-3-2， EN61000-3-3， EN61547
KC Korea KN15， KN61547
EAC Russia IEC62493， IEC61547， EH55015
Australia
RCM EN55015， EN61000-3-2， EN61000-3-3， EN61547
Britain
UKCA
BS EN IEC 55015:2019/A11:2020， BS EN 61547:2009， BS EN IEC 61000-3-2:2019， BS EN 61000-3-3:2013/A1:2019
EN61000-4-2,3,4,5,6,8,11, EN61547
IEEE 1789
430g±10g
352×43×30mm(L×W×H)
355×44×33mm(L×W×H)
370×340×93mm(L×W×H) 20pcs/ctn 9.4kg±5%/ctn
WM
0.1
Digital
Dimming
Over Temp.
Dimming
Dept Protection
LM-150-12-G1T2
12Vdc
12Vdc
±
0.5Vdc
Max. 12.5A
90%
Shut down the output when non-load voltage≥16V, and recover automatically
1
Triac/ELV
LM-150-24-G1T2
LM-150-12-G1T2 Push DIM
Short Circuit Over Load
Protection
Protection
V
Over voltage
protection
