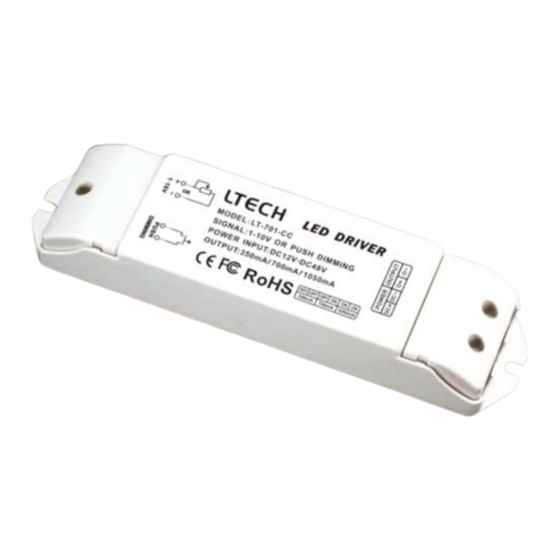

LT-701-CC 0/1-10V LED Dimming Driver Manual
LT-701-CC
0/1-10V LED Dimming Driver
ISO9001:2008
LTECH developed a new 0/1-10V to PWM dimming driver which has solved the compatible problem
of the fluorescent dimming system and the LED illumination. LED lamps can be controlled by many
traditional intelligent dimming systems such as Lutron, Dynalite,
Philips, ABB, etc.
LT-701-CC is compatible with the active/passive 0-10V,1-10V and the PUSH BUTTON insert dimming,
optional with 3 in 1 current 350mA/700mA/1050mA, Support a wide range of the connection of 1~13pcs
(1~50W) high power LED and ensure accurate current output automatically. With above advantage,
one LT-701-CC could be the substitute of more than 10 models in the same kind, make it much more
convenient for sales and installations.
LT-701-CC, 0-100% PWM dimming, output with the dimming curve that is more palatable to human
vision, provide the user with more comfortable and natural lighting experience.
By working with our CV 0/1-10V dimming driver LT-701-10A, the basic issue that related LED projects and needs
0/1-10V dimming can be solved.
1. Product Parameter:
LT-701-CC 0/1-10V LED Dimming Driver
Signal Input
0-10V, 1-10V, PUSH BUTTON
Power Supply Chosen
DC CV SMPS
Input Voltage
DC12V DC48V
Output Voltage DC3V DC46V
Output Current
CC350/700/1050mA×1CH
1~13pcs 1W/3W/5W LED(1~50W) in series
Driving LEDs
Dimming Range 0~100%
Temperature Range -30 ~55
Product Size
L175×W44×H30(mm)
Package Size L178×W48×H33(mm)
Weight(G.W.) 125g
ZHUHAI LTECH ELECTRONIC TECHNOLOGY CO., LTD.
RoHS
warranty
3 years
COMPLIANT
Tridonic , Schneider, Clipsal, Osram,
— 1 —
Tel: +86 756 620 8823
LTECH
LT-701-CC 0/1-10V LED Dimming Driver Manual
2. Product Size:
175mm
170mm

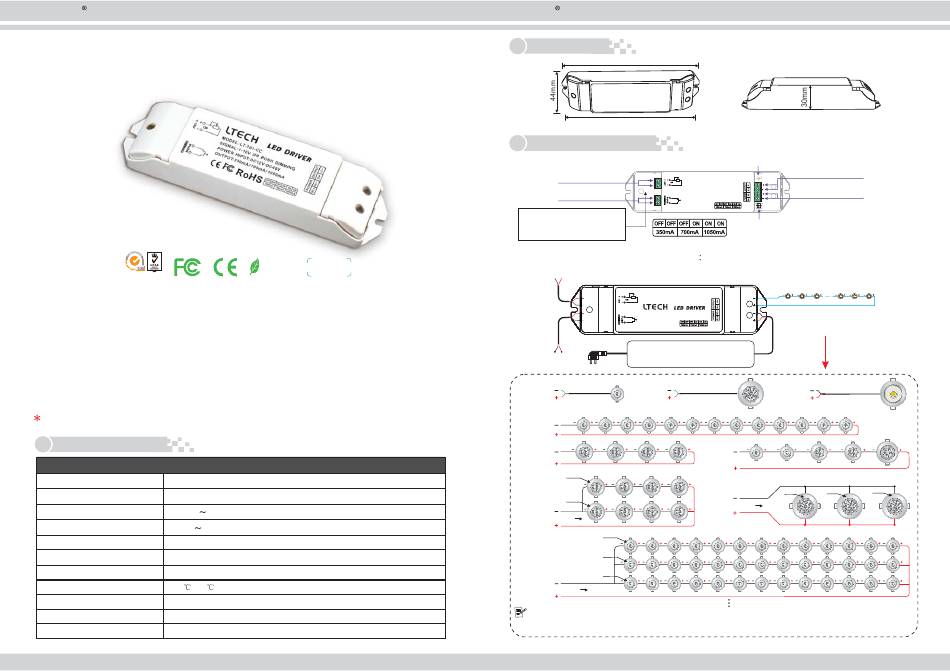

3. Conjunction Diagram:
0/1-10V
Input Socket
Push Button
Connection Socket
The default design doesn't support the
0/1-10V and push dimming that work
together, if you want them to work together,
please mark down that it's switchable
automatically and freely when placing a order.
1) Connection Diagram for High Power LED
Input 0/1-10V
-
+
MODEL: LT-701-CC
AC220V/110V
POWER SUPPLY
Push Button
Connection
Example 1 Example 2
Example 4
Example 5
350mA
350mA
Example 7 700mA
350mA
13 in Series
and
3 in Parallel 350mA
Connection
350mA x 3
350mA
Example 9 1050mA
This controller is a decompression constant current driver, the voltage of power supply is more than the total voltage of the connected
lamps. It is calculated based on the voltage drop of conventional high power LED of 1W/3W/5W: 48V can power 1~13pcs LEDs in
series; 36V can power 1~10pcs LEDs in series; 24V can power 1~6pcs LEDs in series; 12V can power 1~3pcs LEDs in series.
Fax: +86 756 620 8833 LT@LTECHONLINE.COM
Indicator Light
LED Lamps
Connection Socket
DC12V 48V -
Power Input Socket
Current Selection Switch
(Method of Operation See Left-hand Form)
Drive 1~13pcs 1W/3W/5W LED in Series
Output 3V 46V ~
(The output voltage can be adjustable automatically
as per the quantity of LED in series connection)
DC48V
Example 3
12pcs LED in Series
Example 6
350mA 350mA
Example 8
1050mA
— 2 —
WWW.LTECHONLINE.COM
COB LED
350mA
