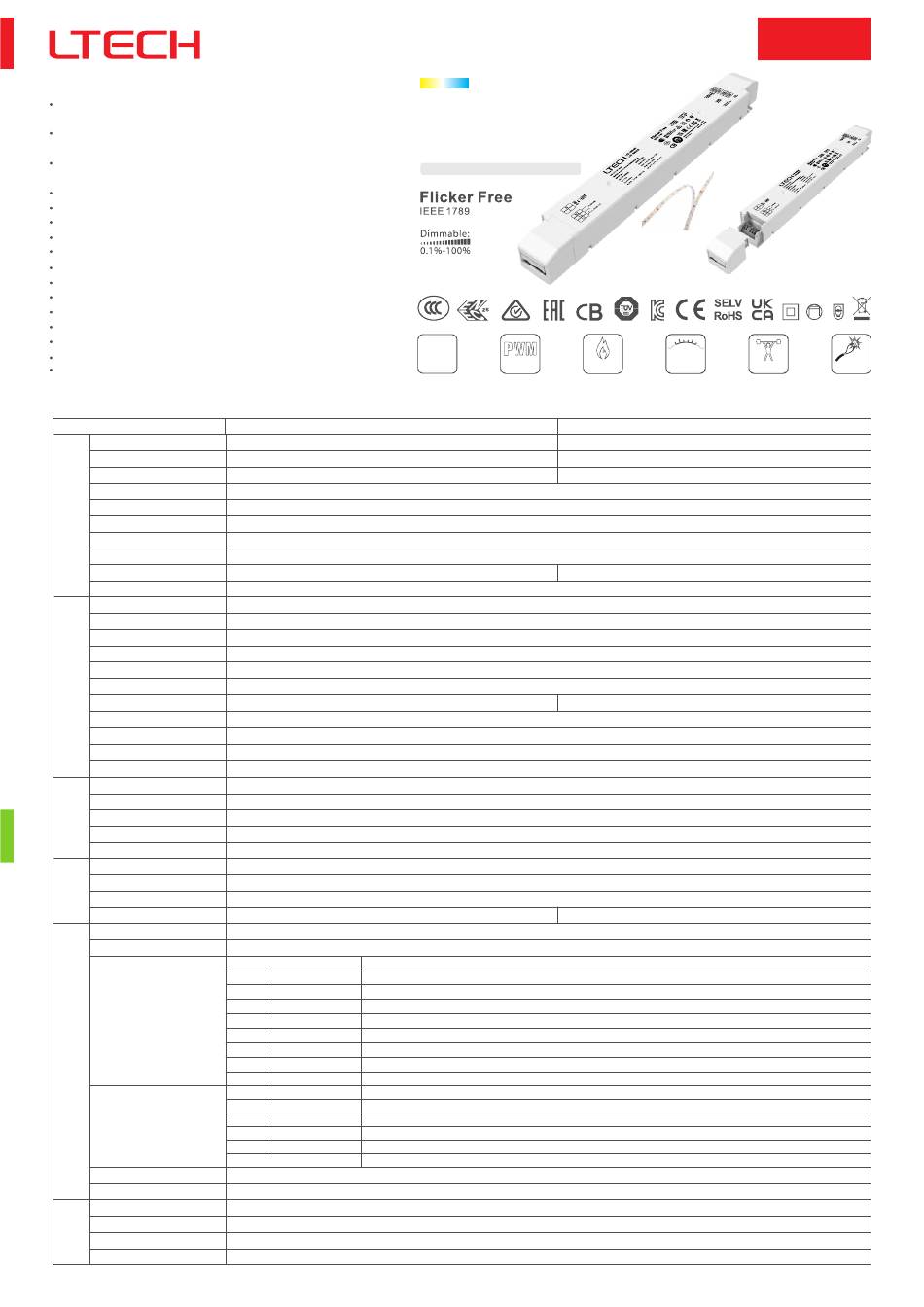

Ltech LM-150-24-G2A2 Manual

LED Intelligent CT Driver
Small size and light weight. The housing is made from V0 flame retardant PC materials
that SAMSUNG/COVESTRO uses.
The clamshell design and screwless type for strain-relief. The design of dismountable
end cap allows you to adjust the length of housing depending on your needs.
0-10V DIM and color temperature adjusting driver, 2 independently SELV constant voltage
output channels.
Constant power design, adjust different color temperature to keep the same brightness.
Dimming range from 0-100%, LED start at 0.1% possible.
With soft-on and fade in function, visual more comfortable.
Color temperature adjusting range: 2700-6500K.
Automatic recognition of 0-10V, 1-10V input signal.
High efficient driver: efficiency 93%, PF>0.98, THD<6%.
In line with the EU energy efficiency ERP directive, standby power consumption < 0.5W.
Innovative thermal management technology, intelligent power life protection.
Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
Fully-protected plastic housing with design of dismountable end cover.
Suitable for indoorⅠ/Ⅱ/Ⅲ type lamps application.
Up to 50,000-hour life time.
5 years warranty (Rubycon capacitor).
Technical Specs
Model
Output Voltage
Output Voltage Range
Output Current


Output Power
Output Power Range


OUTPUT
Strobe Level
Dimming Range
Overload Power Limitation
Ripple
PWM frequency
Dimming Interface
Input Voltage
Frequency
Input Current
Power Factor
INPUT
THD
Efficiency (typ.)
Standby Power Loss
Inrush Current
Anti Surge
Leakage Current
Working Temperature
Working Humidity
ENVIRONMENT
Storage Temperature,Humidity
Temperature Coefficient
Vibration
Overheat Protection
Overload Protection
PROTECTION
Short Circuit Protection
Overvoltage Protection
Withstand Voltage
Isolation Resistance
Safety Standards
SAFETY
&
EMC
EMC Emission
EMC Immunity
Strobe Test Standard
Gross weight(G.W)
Dimensions
OTHERS
Package size
Carton Size
The driver is suitable for connecting resistor current-limiting LED fixture (e.g. LED strip). The inrush current will be dozens of times increased if connecting built-in constant current IC current-limiting LED fixtures, the driver will activate the
overloaded protection (hiccups flickering). When you order, please remark controlling the constant current LED fixture (e.g. MR16 lamp, underground light, LED wall washer, constant current LED strip, etc.), so that we can prepare them with
special procedures.
(constant voltage)
LM-150-24-G2A2
24Vdc
24Vdc
±
0.5Vdc
Max. 6.25A
Max. 150W
0~150W
High frequency exemption level
0~100%, down to 0.1%
≥102%
Switch ripple≤200mV, noise≤500mV
3600Hz
0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT
220-240Vac 200-280Vdc
50/60Hz
≤0.75A/230Vac
PF>0.98/230Vac (at full load)
THD＜6%@230Vac (at full load)
93%
0.5W
Cold start 45A/230Vac
L-N: 2KV
Max. 0.5mA
ta: -20
~
50°C


tc: 85°C
20
~
95%RH, non-condensing
-40
~
80°C, 10~95%RH
±0.03%/°C(0-50°C)
10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
Shut down the output when current load≥102%, and recover automatically
Enter hiccup mode if short circuit occurs, and recover automatically
Shut down the output when non-load voltage≥28V, and recover automatically
I/P-O/P: 3750Vac
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
GB19510.1， GB19510.14
CCC China
TUV Germany EN61347-1， EN61347-2-13， EN62493
CB CB member states IEC61347-1， IEC61347-2-13
EN61347-1， EN61347-2-13， EN62384， EN61547
CE European Union
KC Korea KC61347-1， KC61347-2-13
EAC Russia IEC61347-1， IEC61347-2-13
RCM Australia AS
61347-1， AS
61347-2-13
Europe
EMEC EN61347-1， EN61347-2-13， EN62384
Britain
BS EN 61347-2-13:2014+A1:2017， BS EN 61347-1:2015+A1:2021
UKCA
China GB/T17743， GB17625.1
CCC
CE European Union EN55015， EN61000-3-2， EN61000-3-3， EN61547
KC Korea KN15， KN61547
EAC Russia IEC62493， IEC61547， EH55015
Australia
RCM EN55015， EN61000-3-2， EN61000-3-3， EN61547
Britain
UKCA
BS EN IEC 55015:2019/A11:2020， BS EN 61547:2009， BS EN IEC 61000-3-2:2019， BS EN 61000-3-3:2013/A1:2019
EN61000-4-2,3,4,5,6,8,11, EN61547
IEEE 1789
430g±10g
352×43×30mm(L×W×H)
355×44×33mm(L×W×H)
370×340×93mm(L×W×H) 20pcs/ctn 9.4kg±5%/ctn
DIM / CT
5 1 DIM & CT adjustment
in
0-10V
1-10V
10V PWM
RX
Push
Ultra-low consumption of 0-10V ports: < 0.05mA.
The certification icon represents undergoing certification applications only, and final certification qualification subject to actual product.
0-10V
Push
Digital
Over-heat
Dimming
Protection
LM-150-12-G2A2
12Vdc
12Vdc
±
0.5Vdc
Max. 12.5A
Switch ripple≤200mV, noise≤800mV
92%
Shut down the output when non-load voltage≥16V, and recover automatically
1
0-10V
LM-150-24-G2A2
Push DIM/CCT
LM-150-12-G2A2
V
Over voltage
Over
Load
protection
Protection
