Installation
and Operating
Instructions
Model:
HO-4-6NF-INDUCT1
For your convenience, we recommend to attach
the serial number label HERE.
As part of Parmco Appliances commitment to improving and updating product ranges,
we reserve the right to alter, change and update technical specifications and appearance
attributes of all Parmco Appliances products. E&OE
727626032014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HO-4-6NF-INDUCT1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Parmco HO-4-6NF-INDUCT1

Summary of Contents for Parmco HO-4-6NF-INDUCT1

  • Page 1 For your convenience, we recommend to attach the serial number label HERE. As part of Parmco Appliances commitment to improving and updating product ranges, we reserve the right to alter, change and update technical specifications and appearance attributes of all Parmco Appliances products. E&OE...
  • Page 2 Parmco Appliances before any installation is carried out. We hope you enjoy your new appliance. If you would like to nd out more about this product or any other products in Parmco’s extensive range, visit us on the web at www.parmco.co.nz. Regards,...

  • Page 3: Product Overview

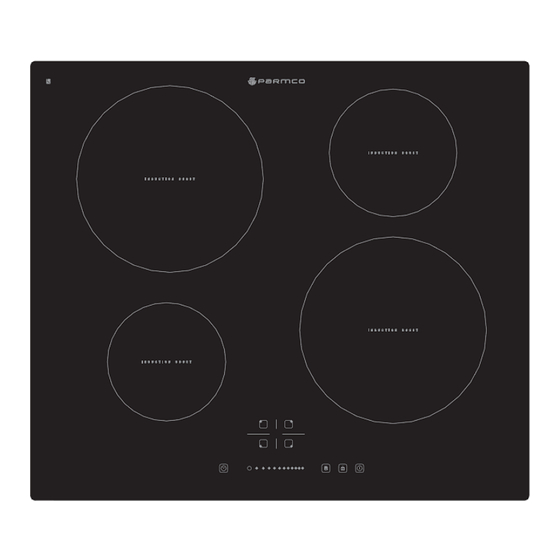

    Congratulations on the purchase of your new Induction Hob. We recommend that you spend some time to read this Instruction/Installation Manual in order to fully understand how to correctly install and operate your hob. For installation, please read the installation section. Read all the safety instructions carefully before use and please keep this Instruction/Installation Manual for future reference.

  • Page 4: A Word On Induction Cooking

    A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan warms it up. iron pot magnetic circuit ceramic glass plate...

  • Page 5: Choosing The Right Cookware

    Choosing the Right Cookware • Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test.

  • Page 6: Using Your Induction Hob

    Using your Induction Hob To start cooking 1. Touch the ON/OFF control. • After power on, the buzzer beeps once, all displays show “ – “ or “ – – “, indicating that the induction hob is now on standby mode. 2.
  • Page 7 If the display flashes alternately with the heat setting… • You have not placed a pan on the correct cooking zone or, • The pan is not suitable for induction cooking or, • The pan is too small or not properly centered on the cooking zone. Heating does not take place unless there is a suitable pan on the cooking zone.

  • Page 8: Using The Boost Function

    Using the Boost function Activate the boost function 1. Touch the heating zone selection control. 2. Touch the boost control , the zone indicator will show “b” and the power reach will reach maximum temperature. Cancel the boost function 1. Touch the corresponding heating zone selection control that you wish to cancel the boost function on.

  • Page 9: Locking The Controls

    Locking the Controls • You can lock the controls to prevent unintended use (for example, children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls Touch the keylock control.

  • Page 10: Using The Timer

    People with a heart pace maker should consult with their doctor before using this unit. Using the Timer You can use the timer in two different ways: • You can use it as a minute minder. In this case, it will not turn any cooking zone off when the set time is up.
  • Page 11 5. Set the time by touching the slider control (eg. 9). In the example, now the timer is set to 95 minutes. 6. When the time is set, it will begin to count down immediately. The display will show the remaining time. 7.
  • Page 12 4. Touch the timer control again, and the “1” will flash. 5. Set the time by touching the slider control (eg. 9). In the example, now the timer is set to 95 minutes. 5. When the time is set, it will begin to count down immediately. The display will show the remaining time NOTE: The red dot next to the power level indicator will illuminate, indicating that zone is selected.

  • Page 13: Cooking Guidelines

    2. Once the countdown timer expires, the corresponding zone will switch off. It will then show the new shortest timer and the dot of corresponding cooking zone will flash. • Touch the heating zone selection control to see the corresponding the corresponding timer on the timer indicator.

  • Page 14: Searing Steak

    Simmering, cooking rice • Simmering occurs below boiling point, at around 85˚C, when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food.

  • Page 15: Heat Settings

    Heat Settings The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the induction hob to find the settings that best suit you. Heat setting Suitability 1 - 2 •...

  • Page 16: Hints And Tips

    Boilovers, melts, Remove these immediately • Remove stains left by melts and and hot sugary spills with a fish slice, palette knife or sugary food or spillovers as soon as on the glass razor blade scraper suitable for possible. If left to cool on the glass, Induction glass cooktops, being they may be difficult to remove or careful of hot cooking zone...
  • Page 17 The glass is being Rough-edged cookware. Use cookware with flat and smooth scratched. bases. See ‘Choosing the right cookware’. Unsuitable, abrasive scourer or cleaning products being used. See ‘Care and Cleaning’. Some pans make This may be caused by the This is normal for cookware and crackling or clicking construction of your cookware...

  • Page 18: Failure Display And Inspection

    If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes: Problem Possible causes What to do F3-F8 Temperature sensor failure. Please contact Parmco. F9-FE Temperature sensor of the IGBT Please contact Parmco. failure. E1/E2 Abnormal supply voltage.

  • Page 19: Selection Of Installation Equipment

    Installation Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm.

  • Page 20: Before Locating The Fixing Brackets

    A(mm) B(mm) C(mm) 50 min 20 min Air intake Air exit 5mm Before you install the hob, make sure that • The work surface is square and level, and no structural members interfere with space requirements. • The work surface is made of a heat-resistant material. •...

  • Page 21: Adjusting The Bracket Position

    Adjusting the bracket position Fix the hob on the work surface by screwing 2 brackets on the bottom of hob (see picture) after installation. Adjust the bracket position to suit for different table top thickness. Cautions 1. The induction hotplate must be installed by qualified personnel or technicians. Never conduct the operation by yourself.

  • Page 22: Safety Warnings

    • If the cable is damaged or to be replaced, the operation must be carried out by a qualified technician with dedicated tools to avoid any accidents. • If the appliance is being connected directly to the mains, an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
  • Page 23 Cut Hazard • Take care - panel edges are sharp. • Failure to use caution could result in injury or cuts. Important safety instructions • Read these instructions carefully before installing or using this appliance. • No combustible material or products should be placed on this appliance at any time.
  • Page 24 before using this appliance to make sure that their implants will not be affected by the electromagnetic field. • Failure to follow this advice may result in death. Hot Surface Hazard • During use, accessible parts of this appliance will become hot enough to cause burns.

  • Page 25: Important Safety Instructions

    Important Safety Instructions • Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers may ignite. • Never use your appliance as a work or storage surface. • Never leave any objects or utensils on the appliance. •...
  • Page 26  Metallic objects such as knives, forks, spoons and lids should not be placed on the hotplate since they will get hot.  If the surface is cracked, switch off the appliance and contact Parmco Appliances. To avoid the possibility of electric shock do not continue to use a damaged hob.
  • Page 27  WARNING: Accessible parts may become hot during use. Young children should be kept away.  This appliance is not intended to be operated by means of an external timer or separate remote-control system.  Do not clean this appliance using steam cleaners. ...
  • Page 28 • If proof of date of purchase is not supplied, except at the sole discretion of Parmco Sales. Proof of purchase can be for the product itself, or if installed • This warranty is offered as an extra benefi t, and does with a kitchen or house then proof of purchase can be from a Parmco not affect other legal rights, which can not be modifi...
