Model:

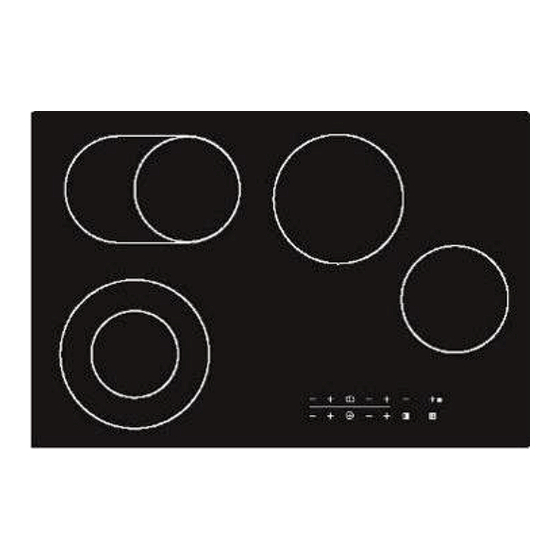

Ceramic Hob

As part of Parmco Appliances commitment to improving and updating product ranges,

it reserves the right to alter, change and update, technical specifications and appearance

attributes of this and all Parmco Appliances products

Installation

and Operating

Instructions

HO-4-77NF-CER-T

Table of Contents

Need help?

Do you have a question about the HO-4-77NF-CER-T and is the answer not in the manual?

Questions and answers

Summary of Contents for Parmco HO-4-77NF-CER-T

Page 1: Ceramic Hob
Operating Instructions Model: HO-4-77NF-CER-T Ceramic Hob As part of Parmco Appliances commitment to improving and updating product ranges, it reserves the right to alter, change and update, technical specifications and appearance attributes of this and all Parmco Appliances products...
Page 2 We hope you enjoy your new appliance. If you would like to find out more about this product or any other products in Parmco’s extensive range visit us on the web www.parmco.co.nz...
Page 3 CAUTIONS - READ CAREFULLY Read carefully and keep for future reference • Any installation of this or any other Parmco Appliances hob must be carried out by a qualified technician and in accordance with the relevant New Zealand Standards relating to electric ceramic and Induction hobs.
Page 4: Table Of Contents
Standards and Regulatory Requirements with particular reference to the New Zealand Electrical Standards. Any attempt to install this or any other Parmco product without an authourised person could result in damage to the product and a possible health hazard. Not having an authourised person install this appliance may result in all associated warranties from Parmco Appliances being null and void.
Page 5: Specifications
As always when buying a Parmco product, quality and piece of mind are as important as the product itself, hence 5-year warranty support on your new ceramic cooktop. If you would like more information or require detailed product specs please log onto Parmco’s website.
Page 6: Installation
INSTALLATION 1. Cut a hole in the table surface according to the size shown in the drawing. For the purpose of installation and use, a minimum of 50-mm space shall be preserved around the hole. Be sure the thickness of the table surface is at least 30mm.
Page 7: Wiring Information
CAUTIONS The ceramic hob must only be installed by a qualified technician. The hob shall not be mounted to cooling equipment, dishwashers and rotary dryers etc. To avoid any damage, the benchtop and adhesive must be made of suitable heat resistant properties A steam cleaner is not to be used.
Page 8: Features
FEATURES 1. Hob layout 2. Heating Zones Power Ratings 3. Control Interface Description OPERATING YOUR HOB After turning the hob on, the buzzer will beep once, all indicators will light up for 1 second then go out, this indicates the hob is active, it will now go into standby mode. Operation Instructions: Switch on the ceramic hob Press the “On/Off”...
Page 9 OPERATING YOUR HOB Timing function Cooking Timer Select one cooking zone by pressing the “-” or “+” of the corresponding heating zone The cooking zones display light will now flash Adjust timer by using the +/- buttons of timer, After the timer indicator display has flashed for 5 seconds, the timer is confirmed. You will find a red dot display at the cooking zone indicator you selected.
Page 10: Safety Reminders
Ensure all sealed foods such as canned goods are opened before heating If the supply cord is damaged, it must be replaced by Parmco. Contact Parmco Appliances to find out more. Do not place rough or uneven appliances, which may damage the ceramic surface.
Page 11: Cleaning
Cleaning & Maintenance You can easily clean the surface of the ceramic hob if following the methods given in the table. Type of contamination Method of cleaning Articles used for cleaning Light Clean with hot water and Cleaning sponge damp sponge Accumulation of dirt Clean with hot water and Special cleaning sponge for...
Page 12 If proof of date of purchase is not supplied, except at the sole 30km of a recognised Service Agent. discretion of Parmco Sales. Proof of purchase can be for the • This warranty is offered as an extra benefit, and does not...
