- Page 1 Installation and Operating Instructions Models: HO-1-6S-4G HO-1-2S-2G HO-1-6S-3GW HO-1-6W-3GW HO-2-6S-4G HO-2-75S-4GW HO-2-9S-4GW HO-3-6G-3GW HO-3-77G-4GW HO-3-9G-4GW HO-6-6S-3GW HO-6-77S-4GW HO-6-9S-4GW 727626032013...
- Page 2 Parmco Appliances before any installation is carried out. We hope you enjoy your new appliance. If you would like to find out more about this product or any other products in Parmco’s extensive range, visit us on the web at www.parmco.co.nz. Regards,...
- Page 3 Conte ents For the U User For your saf fety ............................2 Description of the hob ..........................4 nstructions s for use ....................
-
Page 4: For Your Safety
For Your Safety These instructions have been drawn up for your safety and that of others. You are therefore requested to read them carefully before installing and using the appliance. Keep this instruction manual for future reference as necessary. If the appliance is sold or moved, make sure that the manual is handed over to the new user. -
Page 5: Environmental Protection Advice
First refer to the contents of this manual. If you do not find the necessary information, contact Parmco Service Department. Servicing work on this appliance must be carried out by a qualified technician. Always request the use of original spare parts. -
Page 6: Description Of The Hob

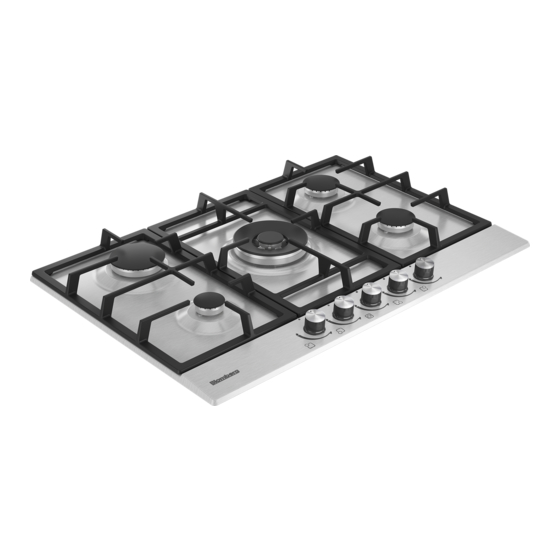

Description of the hob 1. Hob 2. Small auxiliary burner 3. Medium semi-rapid burner 4. Large rapid burner 5. Triple flame burner 6. Burner control knobs 7. Hot plate 8. Indicator light Instructions for use The hob control knobs The symbols on the control knobs mean the following: no gas flow maximum gas flow minimum gas flow... -
Page 7: Lighting The Burners
Lighting the burners To obtain a flame more easily, light the burner before placing a cooking utensil on the pan stand. To light a burner, proceed as follow: for versions with lighting integrated in the control knob: push the knob of the burner fully down and turn it anti-clockwise to the “maximum flow” setting symbol, or press the button if the appliance has individual lighting. -
Page 8: Cleaning And Maintenance
Cleaning and maintenance Before each operation, disconnect the appliance from the electrical mains and allow it to cool down. General cleaning Wash enameled parts with lukewarm water and detergent: do not use abrasive products that might damage them. Wash the flame caps and burner caps often with boiling water and detergent, taking care to remove all deposits. -
Page 9: Routine Maintenance
For this reason, we strongly advise you always to contact the Dealer who sold you the appliance or Parmco Service Department, specifying the nature of the problem, the model of the equipment (Mod.), the product number (Prod. No.), and the serial number (Ser. No.). These data are provided in the plate on the cover of this manual. -
Page 10: Technical Data
Technical data Model: HO-1, HO-2 NG (2kPa) LPG (2.75kPA) BURNER TYPE Injector Size MJ/h Injector Size MJ/h Small auxiliary 0.72 3.36 0.50 3.86 Medium semi-rapid 0.97 5.99 0.65 6.32 Large rapid 1.15 10.08 0.85 9.88 Triple flame 1.35 13.89 0.97 12.79 Model: HO-3, HO-6 NG (2kPa) -
Page 11: Instructions For The Installation Technician
Instructions for the installation technician CAUTION: This appliance must only be installed and used in rooms with permanent ventilation to local standards. Installation of the appliance and its connection to the electrical mains must only be carried out by QUALIFIED PERSONNEL. Before any procedure, it is important to check that the appliance is disconnected from the power supply. -
Page 12: Connection To The Gas Supply
Connection to the gas supply The gas connection must be made in accordance with the local standards. When installing, fit a safety tap at the end of the pipeline. The appliance leaves the factory tested and set for the type of gas indicated on the plate inside the bottom guard, close to the gas connection pipe. -
Page 13: Electrical Connection
Electrical connection The appliance is designed to operate with a power supply voltage of 230Vsingle-phase. The connection must be made in accordance with the regulations and laws in force. Before making the connection, make sure that: 1) The safety circuit-breaker and the electrical system are able to withstand the load of the appliance (see nameplate). -
Page 14: Adapting To The Different Types Of Gas
Adapting to the different types of gas Changing the nozzles 1. Remove the pan stands. 2. Remove the burner caps and flame caps from the burners. 3. Use a size 7 socket wrench to unscrew and remove the nozzles, replacing them with those corresponding to the type of gas to be used (see “Technical data”). - Page 15 Building int ed kitchen units These hobs are designed for installa ed kitchen units up to 600mm deep with suitable characteris cs. Please refer to the New Zealand Gas standards for minimum clearances of the installa on of gas appliances. The dimensions of the hob and the installa on opening are shown in the illustra Before the hob in the installa...
-
Page 16: Installation Options
850mm between the gas hob and the kitchen cabinet. Cutout Dimensions Model Dimensions (w x h) HO-1-2S-2G 280x480 HO-1-6S-3GW 550x470 HO-1-6S-4G 550x470 HO-1-6W-3GW 550x470 HO-2-6S-4G 560x490 HO-2-75S-4GW 730x490 HO-2-9S-4GW 730x490 HO-3-6G-3GW 560x490 HO-3-77G-4GW 730x490 HO-3-9G-4GW 730x490 HO-6-6S-3GW 560x490 HO-6-77S-4GW 730x490 HO-6-9S-4GW 730x490... -
Page 17: Warranty
