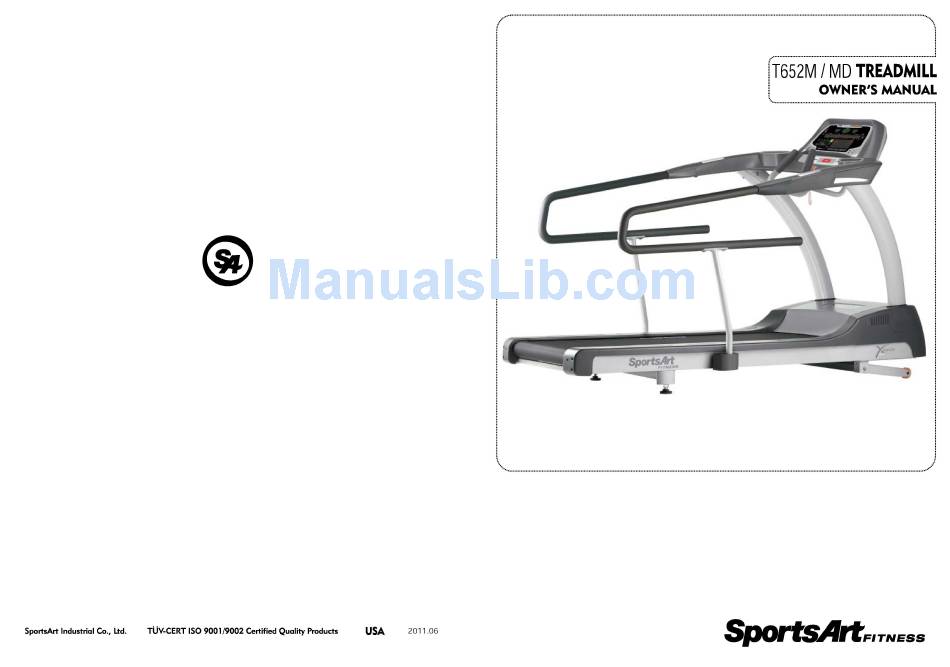

SportsArt Fitness T652M Owner's Manual
  1. Manuals
  2. Brands
  3. SportsArt Fitness Manuals
  4. Treadmill
  5. T652M
  6. Owner's manual

SportsArt Fitness T652M Owner's Manual

Hide thumbs Also See for T652M:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for SportsArt Fitness T652M

Summary of Contents for SportsArt Fitness T652M

  • Page 2: Table Of Contents

    DISPLAY Features....................DISPLAY Functions....................DISPLAY Keys......................SAFETY Key......................DISPLAY Workout Time Limit Setting..............6. HOW TO USE YOUR T652M / T652MD TREADMILL..........OPERATION Quick Start..................OPERATION Workout Setup................... OPERATION Operating Procedure during Exercise..........OPERATION Cool Down..................7. ABOUT THE HEART RATE DETECTION AND PRESENTATION......
  • Page 10 Hardware Kit Name Specification Number Notes Screw cover (flat) Screw cover (rounded) 15A-100V~110V Fuse 10A-200V-240V L-shaped Allen wrench (M4) L-shaped Allen wrench (M5) L-shaped Allen wrench (M6) L-shaped Allen wrench (M6) Double open-end wrench (22*24) Screwdriver handle green Screwdriver bit Phillips and flat Components on the Product Number...

  • Page 33: Step 9 Replacing The Fuse

    STEP 9 Replacing the Fuse If the electrical current becomes excessive, the fuse on this product will break to protect other components. In this situation, follow instructions below to replace the fuse. (a) Press the fuse cap inward.(b) Rotate the cap counterclockwise. (c) The fuse and its cap will pop outward.(d) Remove the damaged fuse from its cap.

  • Page 35: Display Functions

    -0.1 to -3.0 MPH or -0.2 to -5.0 KPH in 0.1 increments ： ； ： 3. INCLINE: T652M -3% -15% T652MD 0% -22%, in 0.5% increments 4. TIME: 0:00 to 99:59 5. DISTANCE: 0.00 to 9999 Km/Mile 6. CALORIES: Total calories burnt, 0 to 9999 KCAL 7.
  • Page 36 Control (HRC) program. The incline and/or speed will automatically change to maintain your selected heart rate. 14. FIT TEST T652M has two fitness tests: Bruce and Gerkin. T652MD has three fitness tests: Bruce, Modified Bruce, and Naughton. 15. Numeric Keypad (0 to 9) ▲...

  • Page 37: Safety Key

    16. CLEAR Pressing this button clears inputted data. ▲ ▼ 17. INCLINE ▲ ▼ Press INCLINE to increase or decrease the incline in 0.5% increments. Keep the button pressed to enable more rapid adjustments. ▲ ▼ 18. SPEED ▲ ▼ Press SPEED to increase or decrease the walk belt speed.
  • Page 38 DISPLAY Workout Time Limit Setting ▲ While the startup banner screen appears, simultaneously press and hold INCLINE ＋ ▼＋ INCLINE ENTER keys for two seconds to enter the workout time limit setting. 1. Workout time limit activation/deactivation: At this point, the message screen will show NO(YES) and TIME LIMIT YES/NO PRESS ENTER , prompting the "...

  • Page 39: Display Workout Time Limit Setting

    6. HOW TO USE YOUR T652M / T652MD TREADMILL OPERATION Quick Start Press QUICK START to start exercising without first inputting user information. "TREAD STARTING" will appear on the display, and the walk belt will rotate at 0.1 ▲ ▼...
  • Page 40 (9) When FIT TEST is chosen, the message screen will show "FIT TEST". Press the ENTER key to confirm your choice. 、 a. The T652M message screen will show "BRUCE-1 GERKIN-2". Press 1 2 keys to choose BRUCE or GERKIN fitness test. Or directly press the ENTER key to select BRUCE.

  • Page 41: Operation Operating Procedure During Exercise

    C. After inputting age and weight, selecting any of the above nine exercise ▲ programs, and inputting your workout goals, press SPEED to start working out. When the workout time limit function is activated, TIME becomes the only available workout goal. OPERATION Operating Procedure during Exercise A.

  • Page 42: About The Heart Rate Detection And Presentation

    7. ABOUT THE HEART RATE DETECTION AND PRESENTATION HEART RATE Telemetry The word "telemetry heart rate" refers to the detection of the heart rate, usually via a strap worn on the exerciser's chest, and transmitted over the air for reception by a receiver built into the product.
  • Page 43 4. The vibration of treadmills at speeds over 4 MPH/6.4 KPH makes heart rate detection difficult. Also, if your hands move, heart rate detection becomes difficult. Suggestions: For better heart rate detection, keep hands in one place on the contact plates. Or wear a telemetry heart rate strap on your chest.

  • Page 44: Program Details

    That change will apply thereafter to the corresponding interval segment. 5. FIT TEST T652M has two fitness tests: BRUCE and GERKIN. T652MD has three fitness tests: BRUCE, MODIFIED BRUCE, and NAUGHTON. (This program is not affected by the workout time limit setting.) The fitness test will end under the following circumstances: A.
  • Page 45 6. WT LOSS & CARDIO Both WT LOSS & CARDIO heart rate control programs automatically adjust speed or incline to maintain your heart rate at a specific target, based on your exercise goals. A. Target heart rates: (1) WT LOSS = 65% of "maximum" heart rate: (220 - AGE) 65% (2) CARDIO = 80% of "maximum"...
  • Page 46 The chart below shows stages and their corresponding workout levels. Dots indicate a repetition of this pattem. 、 …… Stage1 : 0 1 、 、 …… Stage2 : 0 1 2 、 、 、 、 、 、 、…… Stage3 : 0 1 2 3 3 2 1 、...

  • Page 48: User Parameter Setting

    10. USER PARAMETER SETTINGS User parameters determine basic operating features, such as distance units, of the treadmill. To change these parameters, at the banner display, hold the CHANGE DISPLAY button for three seconds. 1. Set up MPH/KPH. The 14-segment display will show the current status as either ＜...

  • Page 52: Maintenance

    Lubricating When Not Prompted The physical task of lubricating the treadmill can be done at any time. When the startup ▲ banner, SPORTSART-T652M, is displayed, simultaneously press and hold INCLINE ▼ + INCLINE + 0 for two seconds. The motor will operate at low speed at which time you can apply lubricant to the walk belt.

  • Page 54: Maintenance Task List (Treadmills)

    Maintenance Task List ( Treadmills Like cars, fitness products require maintenance. Regular maintenance extends product life, and failure to maintain products can void the manufacturer's warranty. Copy the maintenance log sheet, and record maintenance work for each fitness product. Daily tasks 1.
  • Page 55 discharge. Then disconnect the power cord from the wall socket (if applicable). Only after such steps have been completed should covers be removed and electronic components accessed. ‧ Do NOT use cleaners with alcohol, ammonia, or other damaging chemicals. The use of such chemicals can damage the product and void the warranty.

  • Page 56: Maintenance One-Year Maintenance Log

    Maintenance One-Year Maintenance Log Facility : Supervisor: Product Model Number : Serial Number: Start Date: End Date: Daily Tasks Weeks 8-14 Weeks 1-7 Weeks 15-21 Weeks 22-28 Completed Daily Tasks Weeks 29-35 Weeks 36-42 Weeks 43-49 Weeks 50-52 Completed Weeks 1-7 Weeks 8-14 Weeks 15-21 Weekly Tasks...
