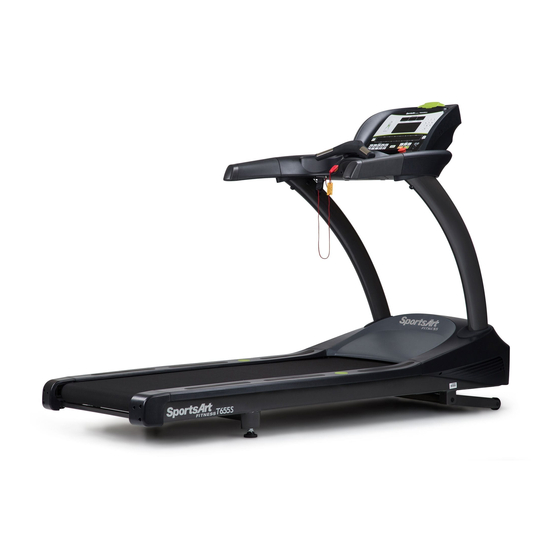

SportsArt Fitness T655S Owner's Manual

SportsArt Fitness T655S Owner's Manual

Hide thumbs Also See for T655S:

Advertisement

Quick Links

T655L/T655S LED OWNER'S MANUAL CONTENTS
1. INTRODUCTION ................................................................................ 2
2. SAFETY PRECAUTIONS ..................................................................
3. LIST OF PARTS .................................................................................
4. ASSEMBLE THE PRODUCT ............................................................. 11
STEP 0 Preparation: Inspect Walk Belt Placement ............................... 11
STEP 2 Install the Display ..................................................................... 21
STEP 3 Install the Right/Left Side Covers ............................................. 24
STEP 4 How to Move the Treadmill ...................................................... 25
STEP 5 Level the Treadmill ................................................................... 26
STEP 6 Align the Walk Belt ................................................................... 27
STEP 7 Adjust Walk Belt Tightness ...................................................... 28
STEP 8 Install the Power Cord ............................................................. 29
5. UNDERSTAND THE T655L/T655S LED DISPLAY .......................... 30
DISPLAY Overview ..............................................................................
DISPLAY Specifications .......................................................................
DISPLAY Windows ............................................................................... 31
DISPLAY Keys ...................................................................................... 31
DISPLAY Safety Key ............................................................................
6. OPERATE THE PRODUCT .............................................................
OPERATION Quick Start .....................................................................
OPERATION Start a Workout Program ...............................................
OPERATION Display ...........................................................................
OPERATION Cool Down .....................................................................
OPERATION Review Summary ..........................................................
OPERATION Idle Mode .......................................................................
OPERATION Energy Smart Function ..................................................
OPERATION Workout Programs .........................................................
OPERATION Error Messages ..............................................................
7. ABOUT HEART RATE DETECTION ................................................
HEART RATE Telemetry ......................................................................
HEART RATE Contact .........................................................................
8. GUIDELINES FOR EXERCISE .......................................................
9. MAINTENANCE ...............................................................................
MAINTENANCE Safety Precautions ..................................................
MAINTENANCE How to Replace a Fuse ...........................................
MAINTENANCE Lubrication System ...................................................
MAINTENANCE Schedule ...................................................................
MAINTENANCE Task List ....................................................................
MAINTENANCE One-Year Maintenance Log ......................................
10. ACCESSORIES .............................................................................
ACCESSORIES Entertainment Cap ....................................................
ACCESSORIES Options .....................................................................
11. APPENDIXES ................................................................................
APPENDIXES Electronics Block Diagram ...........................................
4
9
30
31
33
34
34
34
35
36
36
36
36
37
40
41
42
42
42
43
44
44
45
46
49
50
51
52
53
54
56
57
57

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T655S and is the answer not in the manual?

Questions and answers

Summary of Contents for SportsArt Fitness T655S

  • Page 1: Table Of Contents

    STEP 6 Align the Walk Belt ..............27 STEP 7 Adjust Walk Belt Tightness ............28 STEP 8 Install the Power Cord ............. 29 5. UNDERSTAND THE T655L/T655S LED DISPLAY ......30 DISPLAY Overview ................DISPLAY Specifications ............... DISPLAY Windows ................31 DISPLAY Keys ..................
  • Page 2: Introduction

    1. INTRODUCTION Congratulations on the purchase of a high quality SportsArt product, the T655L/ T655S LED treadmill. Constructed of high quality materials and designed for years of reliable performance, this product was made for full commercial use. Before this product is assembled or operated, we recommend that you familiarize yourself with this manual.
  • Page 3 1. INTRODUCTION (CONTINUED)
  • Page 4: Safety Precautions

    2. SAfETy PRECAUTIONS This product was designed and built for optimum safety. However certain precau- tions apply during the use of this product. Please note the following safety precautions: • Please read the entire manual before assembly and operation. Make sure the product is installed and operated as instructed in this manual.
  • Page 5 2. SAfETy PRECAUTIONS (CONTINUED) CAUTION: If you feel any pain or any abnormal sensations, STOP YOUR WORKOUT and consult your physician immediately. Work within your recommended exercise level. DO NOT work to exhaustion. Before beginning any exercise program, you should consult with your doctor. It is recommended that you undergo a complete physical examination.
  • Page 6 2. SAfETy PRECAUTIONS (CONTINUED) If you are a French speaking person in North America, please place the sticker contained in the owner’s manual on the product as shown. Custom- ers in other areas will not receive the sticker.
  • Page 7 2. CONSIGNES DE SÉCURITÉ IMPORTANTES Votre tapis de course SportsArt a été conçu et fabriqué afin d’assurer une sécurité optimale. Cependant certaines précautions s’appliquent chaque fois que vous uti- lisez votre tapis de course. • Lisez entièrement le manuel avant l’assemblage et l’utilisation. Veuillez aussi noter les consignes de sécurité...
  • Page 8 2. CONSIGNES DE SÉCURITÉ (SUITE) • Pour éviter de vous blesser, restez sur les bandes de repos (barres latérales) avant de démarrer le tapis de course. • Ce tapis de course n’est pas destiné à être utilisé par des personnes (y com- pris des enfants) dont les capacités physiques, sensorielles ou mentales sont réduites ou qui ne disposent pas de l’expérience ou du savoir nécessaires, sauf si celles-ci ont au préalable été...
  • Page 9: List Of Parts

    3. LIST Of PARTS Assembly Parts Name Qty. No. Name Qty. A1 Display A6b Left side cover A2 Handlebar assembly A7 Left pedestal Front handlebar A3 Right pedestal assembly A4 Feeder cord A9 Owner’s manual A5 Water guard A10 Hardware kit A6 Main frame A11 Power cord A6a Right side cover...
  • Page 10 3. LIST Of PARTS (CONTINUED) Components in the Hardware Kit Name Qty. Specification Notes T655S*2 Screw cover (flat) T655L*4 Screw cover (rounded) 15A-100V-110V Fuse 10A-200V-240V 25A-100V-110V For USA T-shaped Allen wrench (M4) T-shaped Allen wrench (M6) L-shaped Allen wrench (M5)
  • Page 11: Assemble The Product

    4. ASSEMBLE THE PRODUCT Follow instructions below to assemble this product. Note that in this manual the words “left” and “right” are used to refer to the product and its parts. As such, these designations correspond to the “left” and “right” sides of a person in position to exercise on this product.
  • Page 12: Step 1 Install The Pedestals And Handlebar Assembly

    STEP 1 Install the Pedestals and Handlebar Assembly Follow instructions below to install the pedestals and handlebar assembly. The illustration below provides an overview of this step.
  • Page 13 STEP 1 Install the Pedestals and Handlebar Assy (Cont.) (a) Loosen and remove the screws (40) to remove the right/left side covers (A6a) (A6b) as shown. (b) Remove the screws (41) from the pedestal mount as shown.
  • Page 14 STEP 1 Install the Pedestals and Handlebar Assy (Cont.) Follow steps (a~e) in order to thread the data cable into the right pedestal. (a) First, remove the zip tie on the cable in the right pedestal mount, and then stretch the cable out as shown. (Note: make sure the cable is fully pull out of the oval opening from the pedestal mount.) (b) Place the right pedestal (A3) on the floor, with the lower hole facing the...
  • Page 15 STEP 1 Install the Pedestals and Handlebar Assy (Cont.) Hold the data cable at the top of the right pedestal (A3), and insert the bot- tom of the right pedestal (A3) onto the pedestal mount. Place the water guard (A5) on the pedestal higher than the motor cover. Repeat the process for the left pedestal (A7) assembly.
  • Page 16 Follow steps (a~f) to install handlebars. (a) First, remove the screws (42) (43) from the handlebar assembly (A2). (Note: Remove screws on both sides. T655S has two sets screws (42) and T655L has four sets screws (42).) (b) Insert the left side of the handlebar (A2) into the left pedestal (A7).
  • Page 17 (e) Thread screws (42) (43) in place by hand. First, secure the screws (42) in area B, and then secure the screws (43) in area C. (Note: T655S has two sets screws (42) and T655L has four sets screws (42) in area B.) (f) Insert the screw cap (31) (32) onto the screw head.
  • Page 18 STEP 1 Install the Pedestals and Handlebar Assy (Cont.) After the handlebars are in place, secure pedestal screws in area A on left and right sides.
  • Page 19 STEP 1 Install the Pedestals and Handlebar Assy (Cont.) Install the front handlebar assembly (a) Install the waterproof back into the front handlebar assembly (A8) if necessary. Make sure the arrow of the waterproof ring upward as shown. (b) Loosen screws (47) from the front handlebar assembly (A8) and then loosen screws and remove the cover (48) from the handlebar assembly (A2) as shown.
  • Page 20 STEP 1 Install the Pedestals and Handlebar Assy (Cont.) (c) Connect the cables from the front handlebar assembly (A8) and the handlebar assembly (A2). Collect the cables and tuck them as indicated by arrows back into the hole of the front handlebar assembly (A8) for safety.
  • Page 21: Step 2 Install The Display

    STEP 2 Install the Display...
  • Page 22 STEP 2 Install the Display (Continued) Follow steps (a~f) below to install the display assembly. (a) Remove the screws (44) from the handlebar (A2). (b) Insert the display (A1) onto the handlebar assembly (A2). (Note: aim properly to avoid damaging the display board.) (c) Push the display (A1) slightly upward and then insert the display mounting bottom into the opening on the handlebar assembly.
  • Page 23 STEP 2 Install the Display (Continued) (d) Connect cables in areas A and B. (e) After connecting cables, tuck them away for safety, and then slightly lift the display (A1) and press it into place. (Note: in area C, the display cover must be outside of the handlebar cover.) (f) Hold the display (A1) forward slightly as shown and then press downward when securing screws (44).
  • Page 24: Step 3 Install The Right/Left Side Covers

    STEP 3 Install the Right/Left Side Covers Put the right/left side covers (A6a) (A6b) in place and secure them with screws (40). Finally, put the water guards (A5) down against the motor cover on both sides.
  • Page 25: Step 4 How To Move The Treadmill

    STEP 4 How to Move the Treadmill First, place hands under the frame in area A, lift the treadmill and then roll it into position as desired.
  • Page 26: Step 5 Level The Treadmill

    STEP 5 Level the Treadmill 1. Press on points A and B to inspect whether the unit is stable and level on the ground. 2. If not, please level the treadmill by following instructions (a, b, c): (a) First, loosen the leveler nuts. (b) Adjust the leveler feet downward until the treadmill is level and does not rock.
  • Page 27: Step 6 Align The Walk Belt

    STEP 6 Align the Walk Belt (a) First, make sure the treadmill is on a leveled surface and the incline is at (b) Start the speed at a lower rate of 3kph/2.5mph to check if the walk belt is aligned and there is an equal amount of space between walk belt and side-rails on both sides.
  • Page 28: Step 7 Adjust Walk Belt Tightness

    STEP 7 Adjust Walk Belt Tightness As you exercise, does the walk belt suddenly pause and then regain traction? Or, if you bear down against the walk belt, does the belt not pause whatsoev- er? If either of these two conditions occurs, the walk belt may be too loose or too tight.
  • Page 29: Step 8 Install The Power Cord

    STEP 8 Install the Power Cord (a) First remove screws (45) from the power cord socket on the product. (b) Insert the power cord into place on the product. (c) Secure power cord connector screws (45). Then insert the other end of the power cord (A11) into the appropriate power supply socket in the wall.
  • Page 30: Understand The T655L/T655S Led Display

    5. UNDERSTAND T655L/T655S LED DISPLAy DISPLAy Overview The T655L/T655S LED display was designed to help people obtain their fitness goals simply and conveniently. Please familiarize yourself with the features of this display and thereby get optimum benefit and enjoyment from this product.
  • Page 31: Display Specifications

    DISPLAy Specifications ● Speed: 0.2 to 24.0 kph; 0.1 to 15.0 mph ● Incline: -3% to 15%, in increments of 0.5% ● Time: 0:00 - 300:00 ● Distance: 0.00 - 9999 km or mile ● Calories: 0 - 9999 kcal ●...
  • Page 32 DISPLAy Keys (Continued) RANDOM – Press this key to select one of an almost endless number of randomly generated workout programs. Each key press, the console will randomly generate a different program. INTERVAL – Press this key to select one of three interval programs: 1:1, 1:2, 2:2. Numbers represent minutes.
  • Page 33: Display Safety Key

    DISPLAy Keys (Continued) VOLUME + / - – iPod, iPhone analog audio volume adjustment. (Note: this is an option feature and it is only compatible with Apple 30 pin connector.) MYE wireless TV audio channel receivers volume adjustment. (MyE Wireless TV Audio_ Channel Receivers and module not provided.) CHANNEL ▲/▼...
  • Page 34: Operate The Product

    6. OPERATE T655L/T655S LED TREADMILL There are two ways to start operating this product: (1) Press the QUICK START key, or (2) press the PROGRAM/GOAL SELECTION key to enter a preset program. Using the QUICK START key allows you to begin exercising immediately, without first entering user information.
  • Page 35: Operation Display

    OPERATION Start a Workout Program (Continued) • The CALORIE setting range is from 100 to 9999 k-Cal, with a default value of 100 k-Cal. Use ▲/▼ keys or numeric keys (0-9) to make your selection. Press the ENTER key to confirm your setting and proceed to the age setting. Or press the QUICK START key to start this program right away with default age and weight.
  • Page 36: Operation Cool Down

    OPERATION Cool Down Once the workout goal (time, distance, or calorie expenditure) has been ob- tained, the product will enter a two-minute cool down period. The display will count down from two to zero. When the countdown reaches zero, the cool down period will end. The mes- sage “REVIEW SUMMARY”...
  • Page 37: Operation Workout Programs

    OPERATION Workout Programs Workout program details are explained below. MANUAL This program allows you to manually control speed and incline. In manual mode, simply press SPEED ▲/▼ keys to control speed and INCLINE ▲/▼ keys to adjust incline. HILL There are three hill workouts, HILL 1, HILL 2, and HILL 3, each of which is represented by a different hill illustration.
  • Page 38 OPERATION Workout Programs (Continued) The TRACK 5K workout automatically has a goal of 5 kilometers. (If the time limit function is activated, the time limit will become the workout goal.) The TRACK 10K workout automatically has a goal of 10 kilometers. (If the time limit function is activated, the time limit will become the workout goal.) fAT BURN In this program, there are 1-20 different difficulty levels to select from.
  • Page 39 OPERATION Workout Programs (Continued) CARDIO & WT LOSS & ZONE TRAINER In heart rate control programs, speed or incline values automatically adjust to keep the exerciser’s pulse at the optimum rate to obtain his or her fitness goals. Target heart rate calculations are a percentage of a “maximum” heart rate based on age.
  • Page 40: Operation User Preferences And Component Versions

    OPERATION User Preference and Component Versions User preference settings allow you to change default settings and review some historical data of this product. To access user preference settings, press the CHANGE DISPLAY key for 2 seconds during Banner page. ● Unit setting: the default unit is English. On the message window, “UNIT –...
  • Page 41: Operation Error Messages

    OPERATION Error Messages Error messages can appear on this treadmill as a troubleshooting aid. Error messages appear in the following format: “ERROR _X_Y”. X represents the category of the error. Y represents the specific issue. In the position of the X placeholder, the following numbers can appear to represent the category of the malfunction: Code Explanation...
  • Page 42: About Heart Rate Detection

    7. ABOUT HEART RATE DETECTION Heart rate detection functions are selected at the time of purchase. Not every product includes every type of heart rate detection device. The following explains factors that influence the performance of two of the most common types of heart rate detection devices.
  • Page 43: Guidelines For Exercise

    Note that in dry areas in particular, static electricity can interfere with unit operation and shock people. To discharge static electricity from your body, touch something else before touching metal on the product. 8. GUIDELINES fOR EXERCISE HOW HARD SHOULD I EXERCISE? Studies show that to benefit from aerobic exercise, people need to maintain a certain heart rate during their workouts.
  • Page 44: Maintenance

    9. MAINTENANCE This section covers maintenance topics, including instructions on replacing a fuse and lubricating the walk belt, along with the presentation of a main- tenance schedule, maintenance task list, one-year maintenance log, and electronics block diagram. MAINTENANCE Safety Precautions ●...
  • Page 45: Maintenance How To Replace A Fuse

    MAINTENANCE How to Replace a fuse If electrical current becomes too high, the fuse breaks. This protects the product. To replace a fuse, follow instructions (a) through (g) below. (a) Use a tool to press the fuse cap inward. (b) Turn the fuse cap counterclockwise. (c) The fuse cap springs out.
  • Page 46: Maintenance Lubrication System

    MAINTENANCE Lubrication System Lubrication System flowchart Model No. Display ex: T655 Total Exercise 5 seconds Distance Display (km) Power On RESET Walks Belt Version Display Total Exercise Total Exercise Total Exercise Speed Total ex:T655 Distance Display (mile) Distance Display (km) Distance Display (km) Running Time...
  • Page 47 MAINTENANCE Lubrication System (Continued) To replace the lubricant bottle, follow instructions (a) through (d) below. (a) Loosen the screws on the bezel and push the bezel up. (b) Take the old lubricant bottle out. (c) Unscrew the nozzle from the old lubricant bottle and screw it onto new bottle.
  • Page 48 MAINTENANCE Lubrication System (Continued) Error Messages: There are 2 error messages with this system. Error 1: It indicates that the system memory failing and it will not be able to perform any auto lubrication. Error 2: It indicates motor is failing or system will not be able to perform any function.
  • Page 49: Maintenance Schedule

    MAINTENANCE Schedule Area Day Week Month Quarter Year Notes Exterior Clean. Screws Inspect and secure loose parts. Ensure the treadmill operates properly. Treadmill test Inspect alignment (centering) and look Walk belt for wear. Walk deck Inspect for wear. Belt guides Inspect for normal rotation.
  • Page 50: Maintenance Task List

    MAINTENANCE Task List Like cars, fitness products require maintenance. Regular maintenance ex- tends product life, and failure to maintain products can void the manufac- turer’s warranty. Copy the maintenance log sheet, and record maintenance work for each fitness product. Daily tasks 1.
  • Page 51: Maintenance One-Year Maintenance Log

    MAINTENANCE One-year Maintenance Log Facility:_______________________ Supervisor:____________________ Product model number:__________ Serial number:_________________ Start date: ____________________ End date:_____________________ Daily Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Week 22-28 Completed Daily Tasks Week 29-35 Week 36-42 Week 43-49 Week 50-52 Completed Weekly Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Weeks 22-28...
  • Page 52: Accessories

    10. ACCESSORIES There are accessories attached to this console; some are standard and some are optional. The following explains the details of each accessory and its function. USB CHARGER (Standard) The USB charger will provide 5V 500mA voltage for the smart phone or other devices charging.
  • Page 53: Accessories Entertainment Cap

    ACCESSORIES Entertainment Cap (a) RFID member card slot: work with both optional SA WELL+ and ECOFIT member cards. (Not available yet.) (b) Bluetooth/WIFI button: When a smart phone is connected with equipment, press this button to disconnect. Scan the QR code or touch the NFC label on the console to connect to the equipment again if necessary.
  • Page 54: Accessories Mye Wireless Tv Audio_Channel Receivers

    ACCESSORIES MyE Wireless TV Audio_Channel Receivers If your equipment has been installed MYE Wireless TV Audio_Channel Receivers, the display must has Channel Keys. Please make sure your equipment is with the correct sticker as below. (a) None Treadmill (Bike, Elliptical and Stepper...etc.) Left display: Without Channel Keys.
  • Page 55 ACCESSORIES MyE Wireless TV Audio_Channel Receivers(Cont.) MyE Wireless TV Audio_Channel Receivers fuctions: 1. The receiver has two kinds of module as below. (Note: MyE Wireless TV Audio_Channel Receivers and Module not provided.) (1). MC3R-9(900MHZ) must work with MYE Wireless TV Audio_Channel Receivers MWTD-S9.
  • Page 56: Accessories Options

    ACCESSORIES Options 1. Long Handrails 2. Fan Set 3. External Mount TV Bracket...
  • Page 57: Appendixes

    11. APPENDIXES APPENDIXES Electronics Block Diagram iPod Audio Board USB Board RFID Board Head Phone Board Option CSAFE Board Continua Adapter Board Control Board Option Numeric Key Board SA WELL+ Connection key HTR Board HRC Board Contact HTR plates Bridge Board Fan Board Safety Key Board Option...
