Summary of Contents for EURO EAF600SS
- Page 2 Information and advice Specification: 220-240V ~ 50 Hz 165W In certain circumstances electrical appliance may be a danger hazard. A) There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
- Page 3 L) Children should be supervised to ensure that they do not play with the appliance. M) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

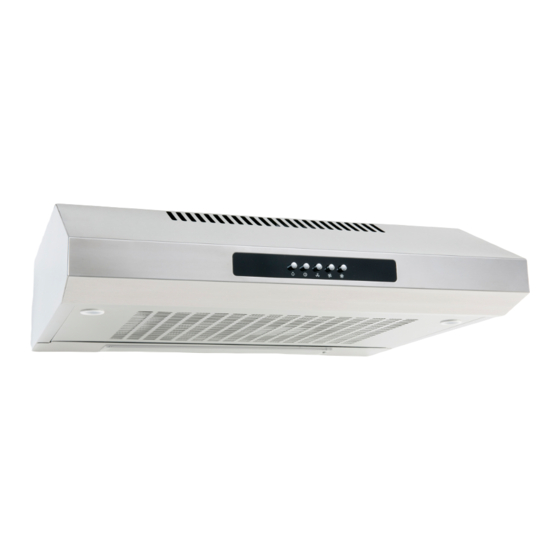

- Page 4 Know your cooker hood Please read these instructions before using your cooker hood. 1. Air duct assembly 2. Main body 3. Filter assembly Also include: User instructions Congratulations on the purchase our cooker hood which is designed to include many superior features that permit you the fullest expression of your living.
- Page 5 Selection of venting direction Fully convertible for vertical, horizontal or ductless operation. A. Vertical discharge B. Horizontal discharge C. Ductless Information The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels. Regulation concerning the discharge of air have to be fulfilled.
- Page 6 Vertical discharge Vertical is the most common. If you select this venting direction, you only need to open ducting knockout by inserting a flat head screwdriver under one end and prying it up. Then snip or break the attachment points by tin snips. You must make sure that the ducting knockout B is not removed.
- Page 7 Ductless In a ductless installation the air is re-circulated back into the kitchen. If you do not anticipate heavy cooking this method will be preferred. It will not be necessary to remove any duct knockouts, you only need chose knockout C. You should use filters to help remove cooking odors.
-
Page 8: Installation
Installation Ensure the power has been turned off before beginning this installation. Plug must be assembled in places easy to drag and insert . To install this hood you will require two assistants. You will need the following tools and material to complete this installation: *Drill*Flat head screwdriver *Phillips head screwdriver or cordless drill and Phillips head bit*Tin snip*3/8”... -
Page 9: Exhaust-Air Mode
Exhaust-air mode The exhaust air is conducted upwards via a ventilation shaft or directly through the outside wall into the atmosphere. The exhaust air must not be conveyed into a function smoke flue or exhaust-gas flue or into a shaft which vents a room with a fireplace. - Page 10 Method 1 1. According to the figure, make sure the position of hood in the cabinet. The wood strips should be line up with the 4 keyholes slots on the top of the range hood. On the cabinet, install 4 screws (supplied) according to the relative position of 4 key holes on the bottom of hood.
- Page 11 Method 2 In the installation surface in cabinet don’t adapt to install the cooker hood, then as per fig, fix the position of cooker hood on the wall. On the wall, install 2 screws(supplied) according to the relative position of 2 key holes on the back of hood.
- Page 12 Hood Using Method Turn the hood ON when cooking at high heat or when cooking flaming floods. 1. Adjust the knob to be right position. 2. Insert the power plug firmly. Press the switch of light to be on, the bulbs light on. Otherwise the bulbs don't work. When press the push button “...
-
Page 13: Cleaning Instruction
Clean ventilation fans frequently. Grease should not be allowed to accumulate on fan or filter. Cleaning Instruction Disconnect range hood from power supply before cleaning or servicing. 1. Cleaning the surface of hood frequently. Use mild soap or detergent to clean the hood. 2. - Page 14 It is recommendable to clean the metallic filter every three months by carrying out the following instruction: —Remove the metallic filter from the cooker hood and wash it in a solution of water and neutral liquid detergent, leaving to soak —Rinse thoroughly with warm water and leave to dry.
- Page 15 The manufacturer shall decline all responsibility if the foregoing recommendations and instruction regarding installation, maintenance and use are not observed and respected when using the cooker hood.
