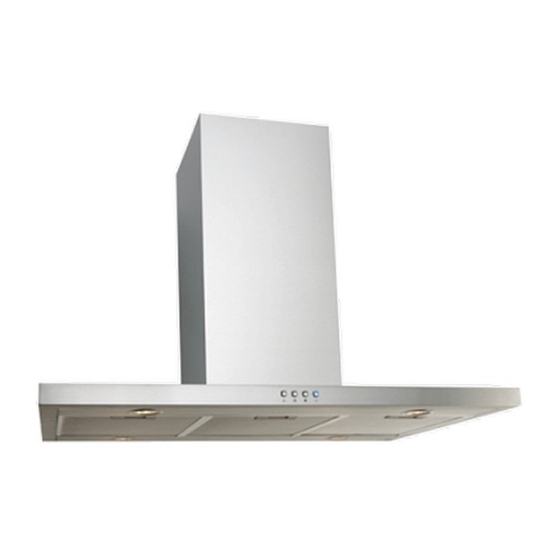

- Page 1 Island Rangehood Instruction Manual EP900ISX2 EURO APPLIANCES BY EUROSTYLE GROUP...
-
Page 2: Table Of Contents
CONTENT 1 ..........Notice 2 ..........Installation Requirements 3 ..........Installation – Fitting the Rangehood. 4 ..........Safety Warning 5 ..........Instructions for Use 6 ..........Maintenance 7 ..........Troubleshooting... -
Page 3: Notice
2. The installation work must be undertaken by a qualified and competent installer in compliance with applicable Australian Standards. 3. Euro Appliances disclaims all liability for any damage or injury caused as a result of not following these instructions for installation. -
Page 4: Installation Requirements
Installation - Requirements Warning: This Rangehood is suitable for indoor island installation only in accordance with the following: • Installation must be performed by a qualified competent installer. • If installed above a barbecue, the minimum distance from the cooking grid/plate is 120cm. •... - Page 5 (3) INSTALLATION This Rangehood must be placed at a distance of 65cm minimum from the cooking surface of a cooker/hotplate and 120cm minimum from the cooking surface of a BBQ. The ceiling must be able to bear at least 40kgs weight. Cut a 170mm round hole in the ceiling.
- Page 7 Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. After installation, make sure that the Rangehood is level to avoid grease collecting at one end.
-
Page 8: Safety Warning
(4) Safety Warnings • • • • This Rangehood is for domestic use only, it is not suitable for commercial purposes. • • • • Please ensure that installation is performed by a qualified competent installer. • • • • The Rangehood and its filter mesh should be cleaned regularly in order to keep it in good working order. -
Page 9: Instructions For Use
（ （ （ （ 5） ） ） ） Instructions for Use Switch on the power to the Canopy. 1. Push the low button, the indicating light around the button will illuminate and the motor runs at low speed. Push it again and the motor will stop and the light will switch off. -
Page 10: Maintenance
(6) Maintenance 6.1 Cleaning the filters The filter mesh is made of high-density stainless steel. Please do not use corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please strictly follow the guidelines below. Method 1: Put the mesh into a sink of clean water, pour on detergent, and soak for 2-3 minutes. - Page 11 7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 6.3 Replacing the Carbon Filter 1. Detach the metallic anti-grease filters by pressing the lock and pulling downwards.
-
Page 12: Troubleshooting
(7) Troubleshooting Warning: Service must be performed by an authorised competent person. Fault Cause Solution The flaps are blocked Remove the blockage. The capacitor is damaged Call for service. Light on, but motor does not work The motor is jammed due to Call for service. - Page 13 The rangehood The fixing screws are not Notify your installer. inclines tight enough The hanging screws are not Notify your installer. tight enough Eurostyle Group trading as Euro Appliances Service Line: (08) 8165 1012 Fax: (08) 8165 1018 Email: admin@eurostylegroup.com.au...
