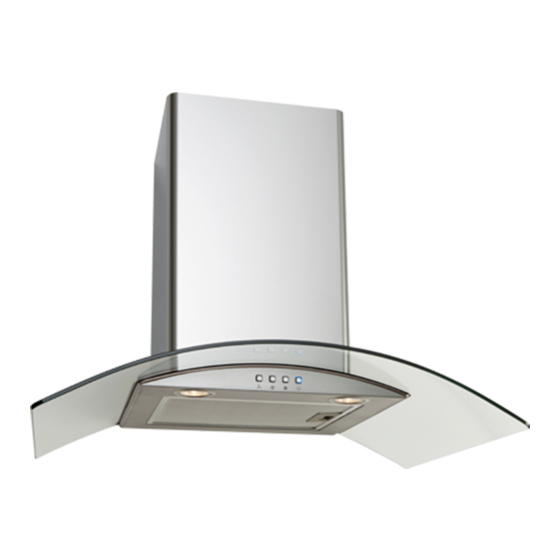

- Page 1 Rangehood Instruction Manual EAGL700S EAGL90SX EURO APPLIANCES BY EUROSTYLE GROUP...
-
Page 2: Table Of Contents
CONTENT 1 ..........Notice 2 ..........Installation Requirements 3 ..........Installation – Fitting the Rangehood. 4 ..........Safety Warning 5 ..........Instructions for Use 6 ..........Maintenance 7 ..........Troubleshooting... -
Page 3: Notice
2. The installation work must be undertaken by a qualified and competent installer in compliance with applicable Australian Standards. 3. Euro Appliances disclaims all liability for any damage or injury caused as a result of not following these instructions for installation. -
Page 4: Installation Requirements
Installation - Requirements Warning: This Rangehood is suitable for indoor installation only in accordance with the following: Installation must be performed by a qualified competent installer. If installed above a barbecue, the minimum distance from the cooking grid/plate is 120cm. ... -
Page 5: Installation - Fitting The Rangehood
(3). Installation – Fitting the Rangehood. This Rangehood must be placed at a distance of 65cm minimum from the cooking surface of a cooker/hotplate and 120cm minimum from the cooking surface of a BBQ. Fit the supplied Hook to the wall using the 36mm long screws supplied (refer to Pic 1). - Page 6 Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. After installation, make sure that the canopy is level to avoid grease collecting at one end. Note: If you do not have an outlet to the outside, you can install the Rangehood so that it recirculates the air.
-
Page 7: Safety Warning
Activated carbon filter can be used to trap odors for recirculating installations. In order to install the activated carbon filter, the metallic anti-grease filter should be detached first. Press the lock and pull it downward. Plug the activated carbon filter into the unit and turn it in anti-clockwise direction. - Page 8 Please ensure that installation is performed by a qualified competent installer. The Rangehood and its filter mesh should be cleaned regularly in order to keep it in good working order. Before cleaning, please switch the power off at the main supply.
-
Page 9: Instructions For Use
（5） Instructions for Use 5.1 Push Button Switch on the power to the Canopy. 51.1. Push the low button, the indicating light around the button will illuminate and the motor runs at low speed. Push it again and the motor will stop and the light will switch off. 5.1.2 Push the middle button, the indicating light around the button will illuminate and the motor runs at mid speed. - Page 10 5.2 LCD Electronic button 5.2.1 Switch on the power to the Rangehood. The backlight is lit displaying a 24 hour clock and the Rangehood is in standby mode. Backlight will be extinguished within 15 seconds without any operation. When the backlight is not illuminated, the Rangehood is off.
- Page 11 “ ”. Press “ ” button again and the motor will stop display “ ” operating and will disappear from LCD. 5.2.5 To set the clock, touch any button to enter standby mode. Make sure that the “ ” and “ ”...
-
Page 12: Maintenance
switches off and the Rangehood is in standby mode. Rangehood will go into off mode within 15 seconds. While in timer mode, you can adjust the motor speed and operate the lights. Please note that only the motor is switched off by the timer, the light is not controlled by the timer. -
Page 13: Troubleshooting
6.2 Cleaning the Rangehood 1. To protect the main body from corrosion, the Rangehood should be cleaned with hot water plus non corrosive detergents every two months. 2. Please do not use abrasive detergent because it will damage the Rangehood. 3. - Page 14 The Rangehood The fixing screws are not Notify your installer. inclines tight enough The hanging screws are not Notify your installer. tight enough Eurostyle Group trading as Euro Appliances Warranty Service Line: 1300 440 335 Fax: (08) 8165 1018 Email: service@eurostylegroup.com.au...
