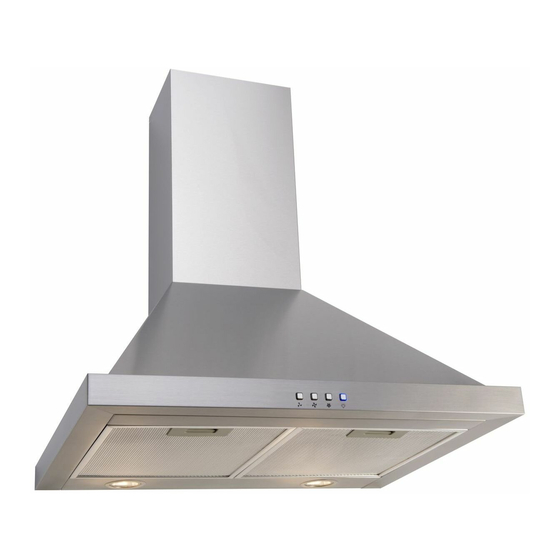

Rangehood
Instruction Manual
EA60SX
EA90SX
EP600SWSX
EP900SWSX
EURO APPLIANCES BY EUROSTYLE GROUP
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EA60SX and is the answer not in the manual?

Questions and answers

Summary of Contents for EURO EA60SX

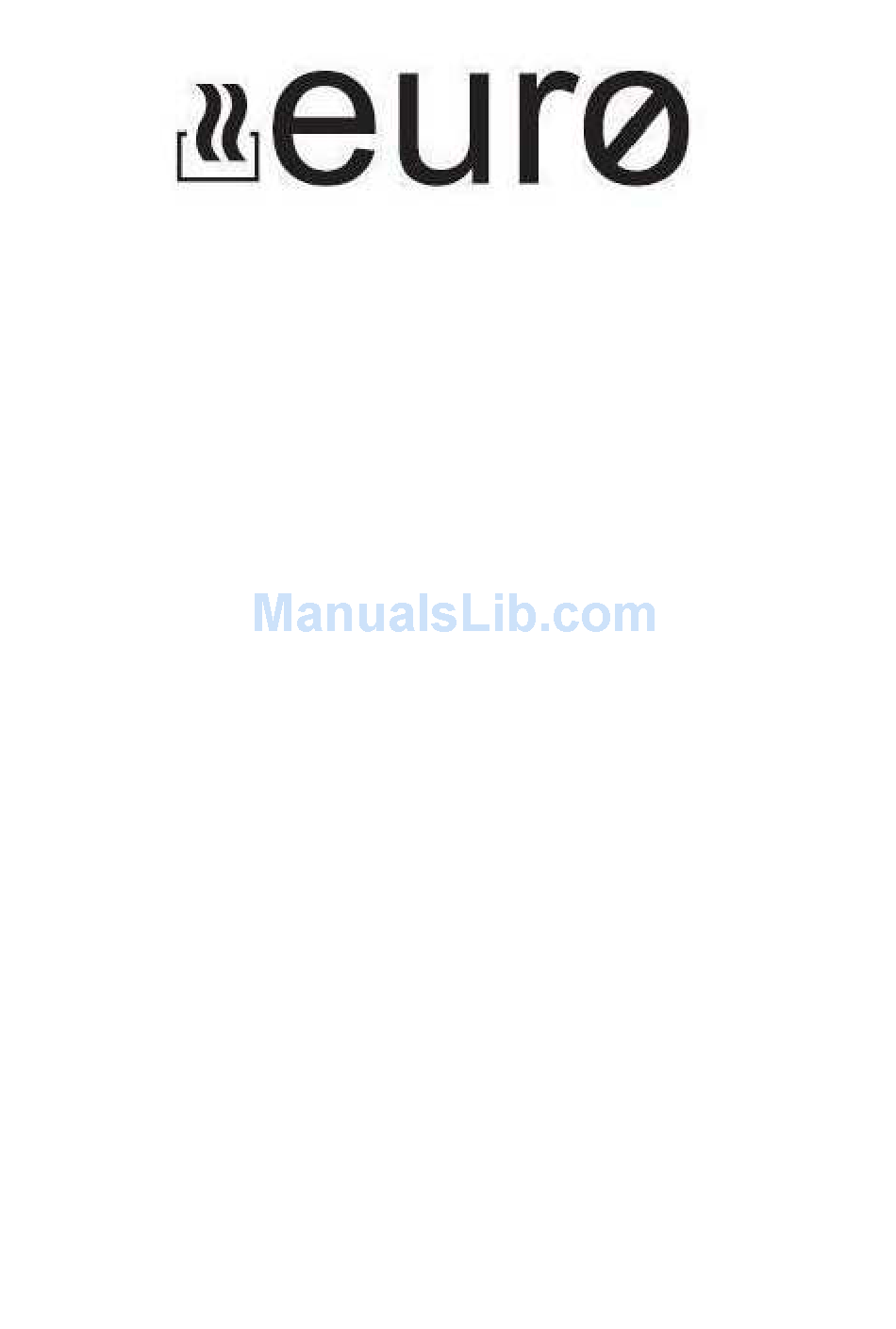

  • Page 1 Rangehood Instruction Manual EA60SX EA90SX EP600SWSX EP900SWSX EURO APPLIANCES BY EUROSTYLE GROUP...
  • Page 2: Table Of Contents

    CONTENT 1 ..........Notice 2 ..........Installation Requirements 3 ..........Installation – Fitting the Rangehood. 4 ..........Safety Warning 5 ..........Instructions for Use 6 ..........Maintenance 7 ..........Troubleshooting...
  • Page 3: Notice

    2. The installation work must be undertaken by a qualified and competent installer in compliance with applicable Australian Standards. 3. Euro Appliances disclaims all liability for any damage or injury caused as a result of not following these instructions for installation.
  • Page 4: Installation Requirements

    Installation - Requirements Warning: This Rangehood is suitable for indoor installation only in accordance with the following: • Installation must be performed by a qualified competent installer. • If installed above a barbecue, the minimum distance from the cooking grid/plate is 120cm. •...
  • Page 5: Installation - Fitting The Rangehood

    (3). Installation – Fitting the Rangehood. This Rangehood must be placed at a distance of 65cm minimum from the cooking surface of a cooker/hotplate and 120cm minimum from the cooking surface of a BBQ. Models without Glass: Fit the plastic flaps to the outlet vent of the canopy by deforming the flaps slightly so that the ends fit into the holes (refer to Pic 3 for location of the flaps).
  • Page 6 Note: Fix the Canopy with two 30mm safety screws. The two safety screw holes are positioned on the back casing (refer to Pic 5). Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. After installation, make sure that the canopy is level to avoid grease collecting at one end.
  • Page 7 Note: If you do not have an outlet to the outside, you can install the Rangehood so that it recirculates the air. The installation is the same as above except that you do not install the flexible duct. For recirculating installations, we recommend that you fit the activated carbon filters.
  • Page 8: Safety Warning

    reduced. (4) Safety Warning • • • • This Rangehood is for domestic use only, it is not suitable for commercial purposes. • • • • Please ensure that installation is performed by a qualified competent installer. • • • • The Rangehood and its filter mesh should be cleaned regularly in order to keep it in good working order.
  • Page 9: Instructions For Use

    ( ( ( ( 5) ) ) ) Instructions for Use Switch on the power to the Canopy. 1. Push the low button, the indicating light around the button will illuminate and the motor runs at low speed. Push it again and the motor will stop and the light will switch off.
  • Page 10: Maintenance

    (6) Maintenance 6.1 Cleaning the filters The filter mesh is made of high-density stainless steel. Please do not use corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please strictly follow the guidelines below. Method 1: Put the mesh into a sink of clean water, pour on detergent, and soak for 2-3 minutes.
  • Page 11: Troubleshooting

    2. Please do not use abrasive detergent because it will damage the Rangehood. 3. Keep water away from motor and other electrical parts as this will cause damage to the appliance. 4. Before cleaning the appliance please remember to shut off the power and disconnect the plug.
  • Page 12 The Rangehood The fixing screws are not Notify your installer. inclines tight enough The hanging screws are not Notify your installer. tight enough Eurostyle Group trading as Euro Appliances Service Line: (08) 8165 1012 Fax: (08) 8165 1018 Email: admin@eurostylegroup.com.au...

This manual is also suitable for:

Ep600swsxEa90sxEp900swsx
