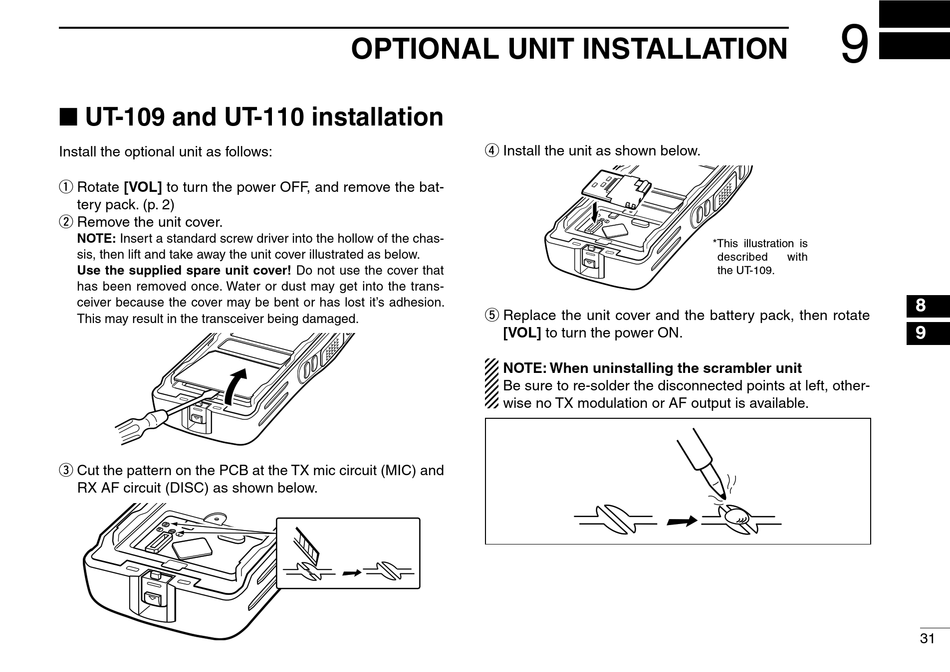

■ UT-109 and UT-110 installation
Install the optonal unt as follows:
q Rotate [VOL] to turn the power OFF, and remove the bat-
tery pack. (p. 2)
w Remove the unt cover.
NOTE: Insert a standard screw drver nto the hollow of the chas-
ss, then lft and take away the unt cover llustrated as below.
Use the supplied spare unit cover! Do not use the cover that
has been removed once. Water or dust may get nto the trans-
cever because the cover may be bent or has lost t's adheson.
Ths may result n the transcever beng damaged.
e Cut the pattern on the PCB at the TX mc crcut (MIC) and
RX AF crcut (DISC) as shown below.

OPTIONAL UNIT INSTALLATION

r Install the unt as shown below.
t Replace the unt cover and the battery pack, then rotate
[VOL] to turn the power ON.
NOTE: When uninstalling the scrambler unit
Be sure to re-solder the dsconnected ponts at left, other-
wse no TX modulaton or AF output s avalable.
9
*This illustration is
described with
the UT-109.
