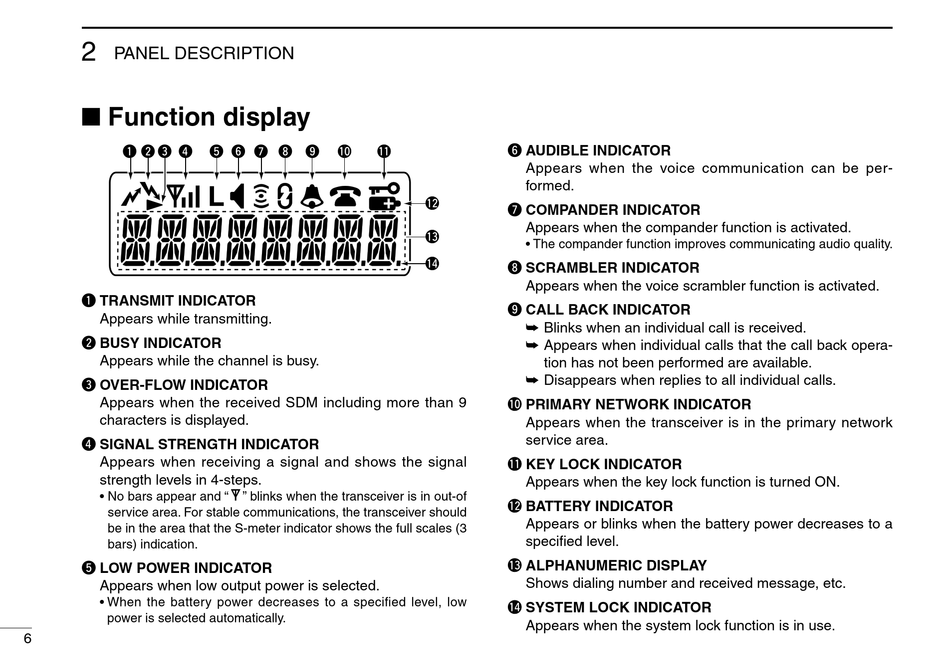

PANEL DESCRIPTION

■ Function display
q w e r
q TRANSMIT INDICATOR
Appears whle transmttng.
w BUSY INDICATOR
Appears whle the channel s busy.
e OVER-FLOW INDICATOR
Appears when the receved SDM ncludng more than 9
characters s dsplayed.
r SIGNAL STRENGTH INDICATOR
Appears when recevng a sgnal and shows the sgnal
strength levels n 4-steps.
• No bars appear and "
servce area. For stable communcatons, the transcever should
be n the area that the S-meter ndcator shows the full scales (3
bars) ndcaton.
t LOW POWER INDICATOR
Appears when low output power s selected.
• When the battery power decreases to a specied level, low
power s selected automatcally.
6
t y u i o !0 !1
" blnks when the transcever s n out-of
y AUDIBLE INDICATOR
Appears when the voce communcaton can be per-
formed.
!2
u COMPANDER INDICATOR
Appears when the compander functon s actvated.
!3
• The compander functon mproves communcatng audo qualty.
!4
i SCRAMBLER INDICATOR
Appears when the voce scrambler functon s actvated.
o CALL BACK INDICATOR
➥ Blnks when an ndvdual call s receved.
➥ Appears when ndvdual calls that the call back opera-
ton has not been performed are avalable.
➥ Dsappears when reples to all ndvdual calls.
!0 PRIMARY NETWORK INDICATOR
Appears when the transcever s n the prmary network
servce area.
!1 KEY LOCK INDICATOR
Appears when the key lock functon s turned ON.
!2 BATTERY INDICATOR
Appears or blnks when the battery power decreases to a
specied level.
!3 ALPHANUMERIC DISPLAY
Shows dalng number and receved message, etc.
!4 SYSTEM LOCK INDICATOR
Appears when the system lock functon s n use.
