The K00346, dispenser baffle kit, must be used with the S-0300, S-450, S-0500, S-0600, S-0850, and S-1000 ice
machines, when the ice machine is used on any ice/beverage dispenser.
1. Remove both front panels.

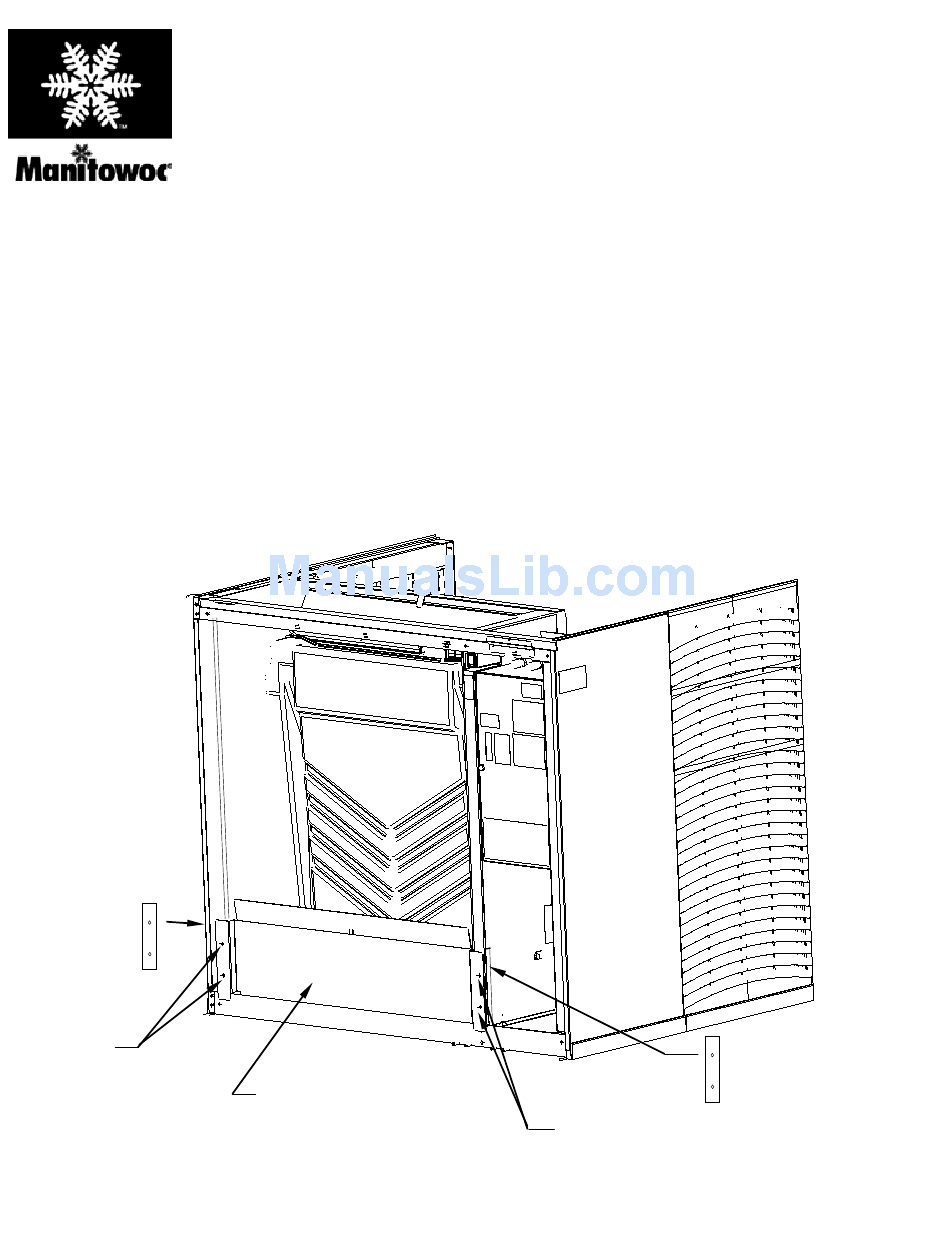

2. Examine the ice machine to see if the machine has four screws on the lower front plastic panels (see drawing).
3. If there are screws, remove them from the countersunk holes on the front surface of the machine. Save the screws.
4. Install the deflector, using the four screws that were removed in step 3.
5. Four screws and two backing plates are in the kit.
6. If there are no screws on the ice machine (step 2), pierce the thin plastic countersunk holes, install the backing
plates, and install the deflector, using the screws from the kit.
7. Replace the front panels.
Backing Plate to
be Inserted into
Side Pocket of
Bulkhead
Screws
K00346 DISPENSER BAFFLE KIT
Installation Instructions
New Ice Baffle
Backing Plate to be
Inserted into Side
Pocket of Bulkhead
Screws
