Before replacing this relay on a QPA310 ice dispenser:

Check for moisture on the two-pin Molex connector for the dispense switch
wiring harness.

If moisture is present, dry and seal the ends of the connector with silicone
sealant.
Moisture on this connector can simulate a defective relay.
Black Power Cord
Vend Switch
Black
White
CA200/CA260
FA290/HA300
Manitowoc Ice, Inc.
th
2110 South 26 Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA
Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879
Web Site - www.manitowocice.com

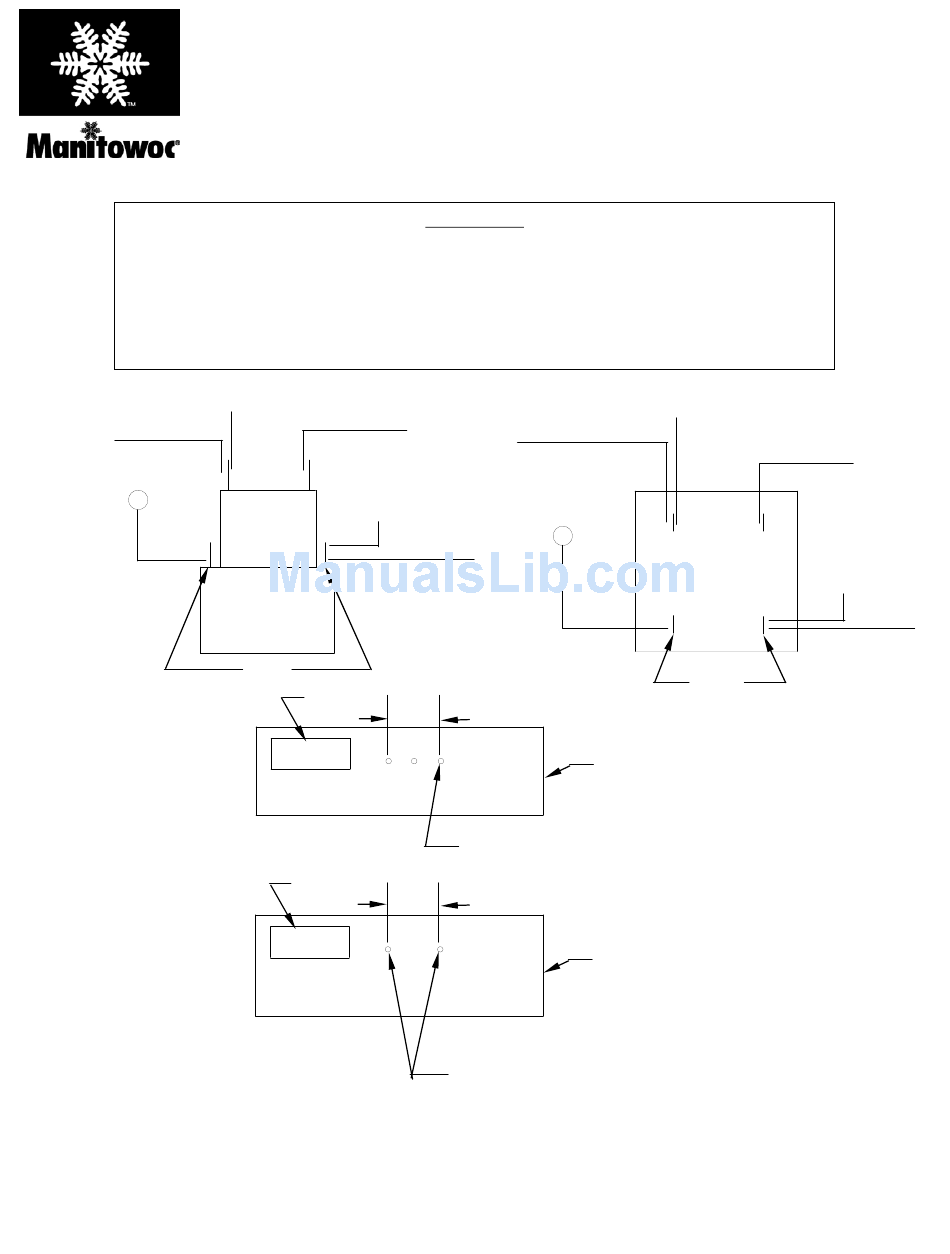

SOLID STATE RELAY ASSY.
FOR CA200, CA260, FA290 AND HA300 DISPENSERS
Black T3
Gear Motor
Switch
Sinpac
Switch
White
White
Power Cord
Coil
Capacitor
1.88
Capacitor
1.88

IMPORTANT

Vend Switch
Black
White
Drill one .136 dia. hole for solid state relay.
Attach relay with two screws provided.
Drill two .136 dia. holes for solid state relay.
Attach relay with two screws provided.
Black Power Cord
Black T3
Switch Gear Motor
1
2
Solid State
4 3
Coil
Junction Box
Junction Box
Sinpac
Switch
White
White
Power Cord
8010213
Rev. 08/20/03
