The K00348, dispenser baffle kit, must be used with the S-0322 and S-0422 ice machines, when the ice machine is
used on any ice/beverage dispenser.
1. Remove both front panels.

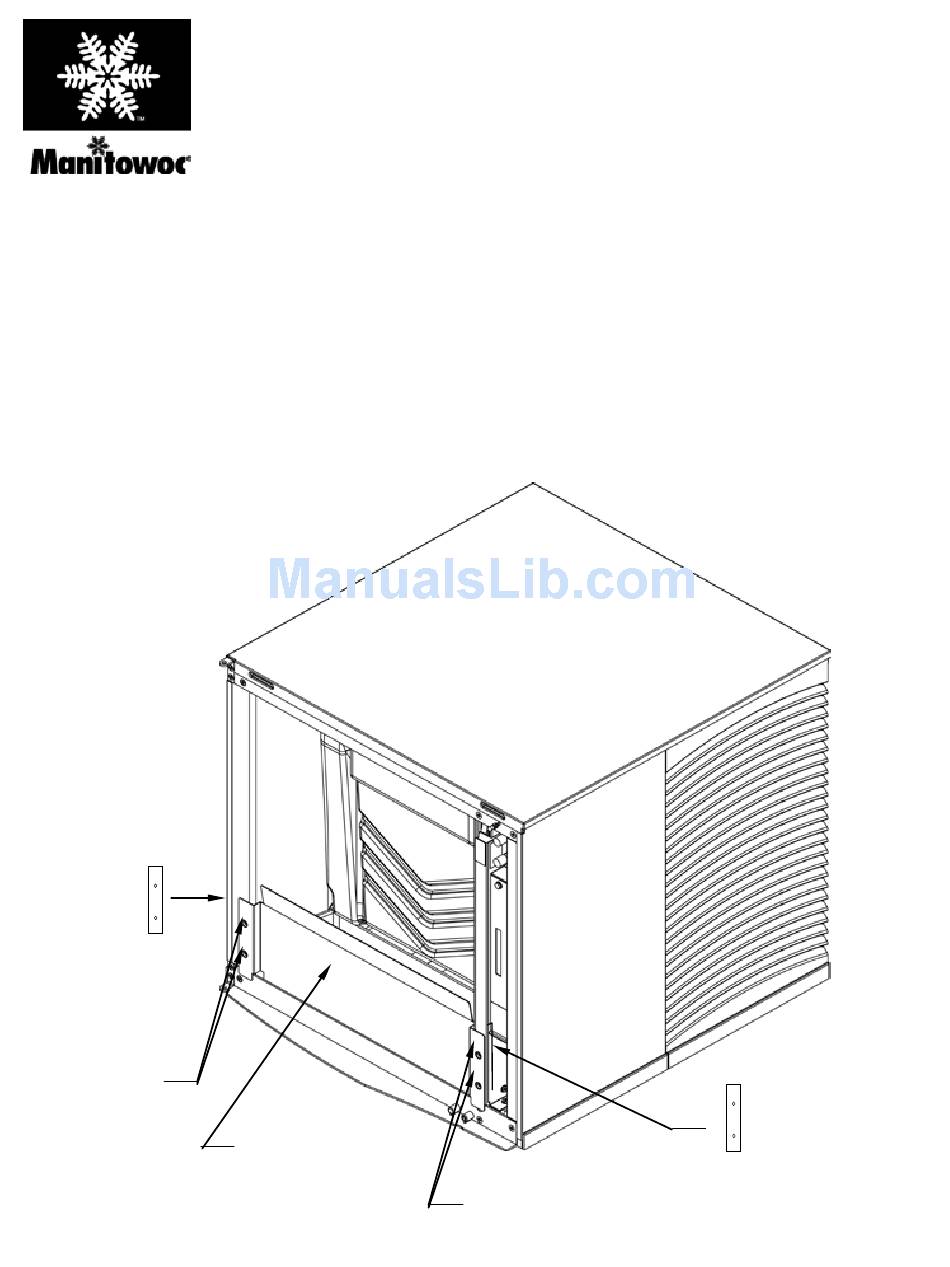

2. Examine the ice machine to see if the machine has four screws on the lower front plastic panels (see drawing).
3. If there are screws, remove them from the countersunk holes on the front surface of the machine. Save the
screws.
4. Install the deflector, using the four screws that were removed in step 3.
5. Four screws and two backing plates are in the kit.
6. If there are no screws on the ice machine (step 2), pierce the thin plastic countersunk holes, install the backing
plates, and install the deflector, using the screws from the kit.
7. Replace the front panels.
Backing Plate
to be Inserted
into Side
Pocket of
Bulkhead
Screws
Manitowoc Ice, Inc.
th
2110 South 26
Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA

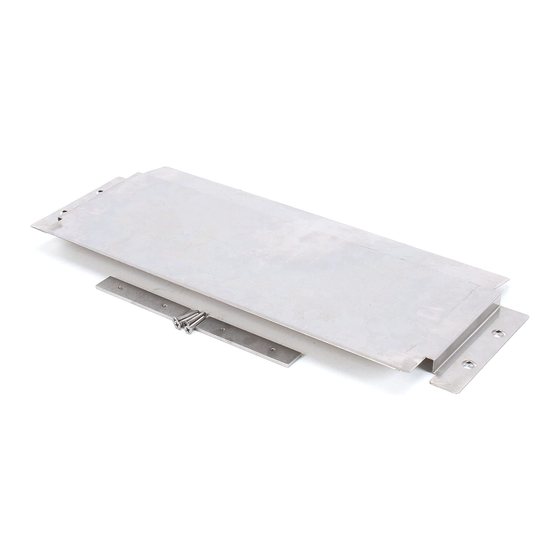

K00348 DISPENSER BAFFLE KIT
New Ice Baffle
Installation Instructions
Screws
Backing Plate to be
Inserted into Side
Pocket of Bulkhead
