Ice deflector kit

Advertisement

Quick Links

The K00349, ice deflector kit, must be used with the S-1400, S-1600, and S-1800 ice machines, when the ice machine is
used on a non-Manitowoc ice storage bin.
1. Remove both front panels.
2. Examine the ice machine to see if the machine has four screws on the lower front plastic panels (see drawing).
3. If there are screws, remove them from the countersunk holes on the front surface of the machine. Save the screws.
4. Install the deflector, using the four screws that were removed in step 3. In some instances, the deflector will hit the
bin and not fit properly. Slide the ice machine back (approximately 1/2") until the deflector fits properly.
5. Four screws and two backing plates are in the kit.
6. If there are no screws on the ice machine (step 2), pierce the thin plastic countersunk holes, install the backing
plates, and install the deflector, using the screws from the kit.
7. Replace the front panels.

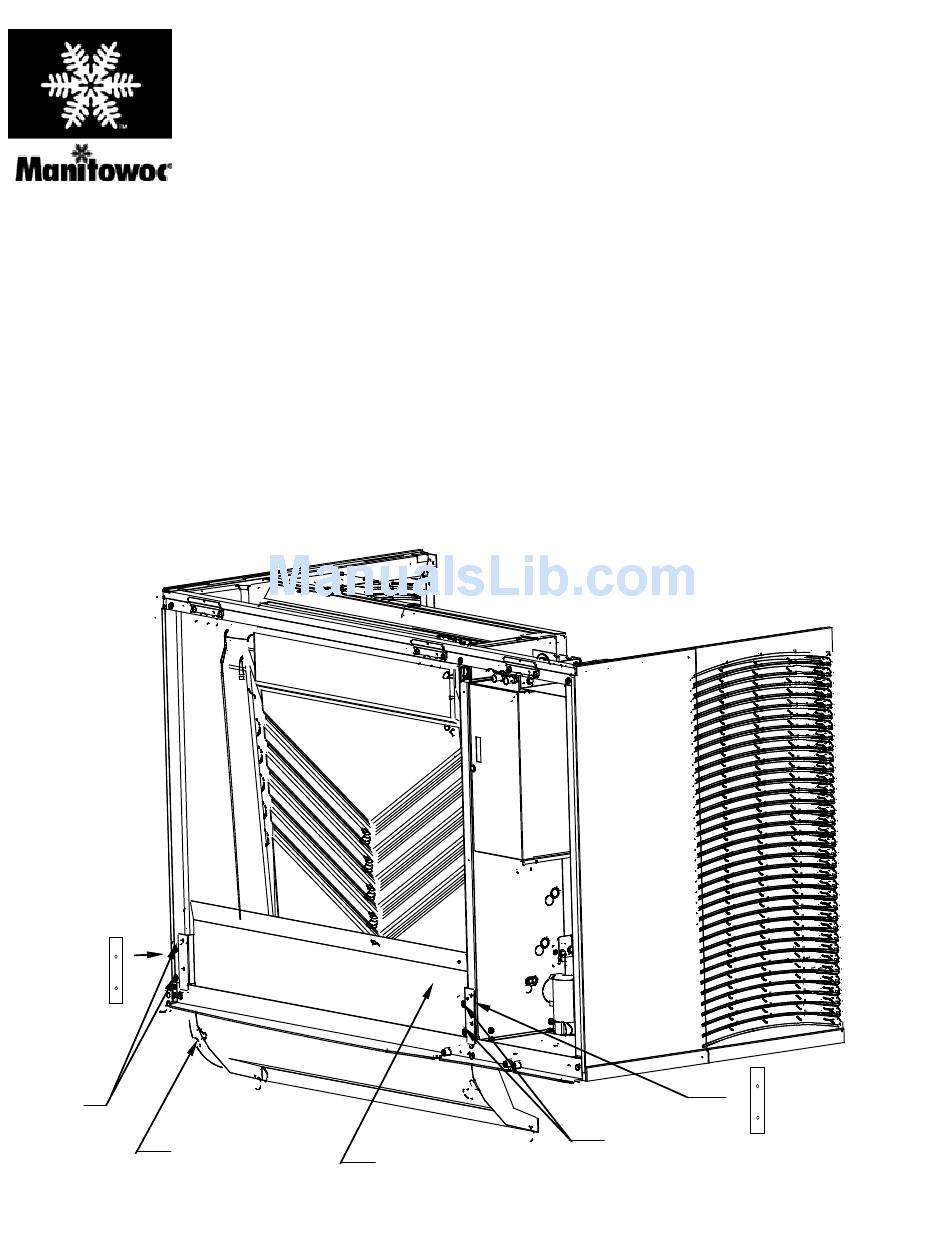

Backing plate
to be inserted
into side
pocket of
bulkhead
Screws
If deflector contacts
bin, move ice
machine back until
deflector clears.
K00349 ICE DEFLECTOR KIT

Installation Instructions

New Ice Deflector
Backing plate to be
inserted into side
pocket of bulkhead
Screws
