Manitowoc K00347 Installation Instructions

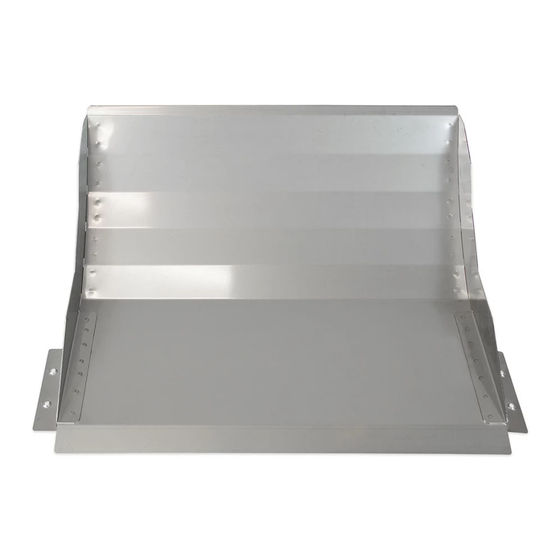

Ice deflector kit

The K00347, ice deflector kit, must be used with the S-0300, S-0450, S-0500, S-0600, S-0850, and S-1000 ice machines,

when the ice machine is used on a non-Manitowoc ice storage bin.

1. Remove both front panels.

2. Examine the ice machine to see if the machine has four screws on the lower front plastic panels (see drawing).

3. If there are screws, remove them from the countersunk holes on the front surface of the machine. Save the screws.

4. Install the deflector, using the four screws that were removed in step 3.

5. Four screws and two backing plates are in the kit.

6. If there are no screws on the ice machine (step 2), pierce the thin plastic countersunk holes, install the backing

plates, and install the deflector, using the screws from the kit.

7. Replace the front panels.

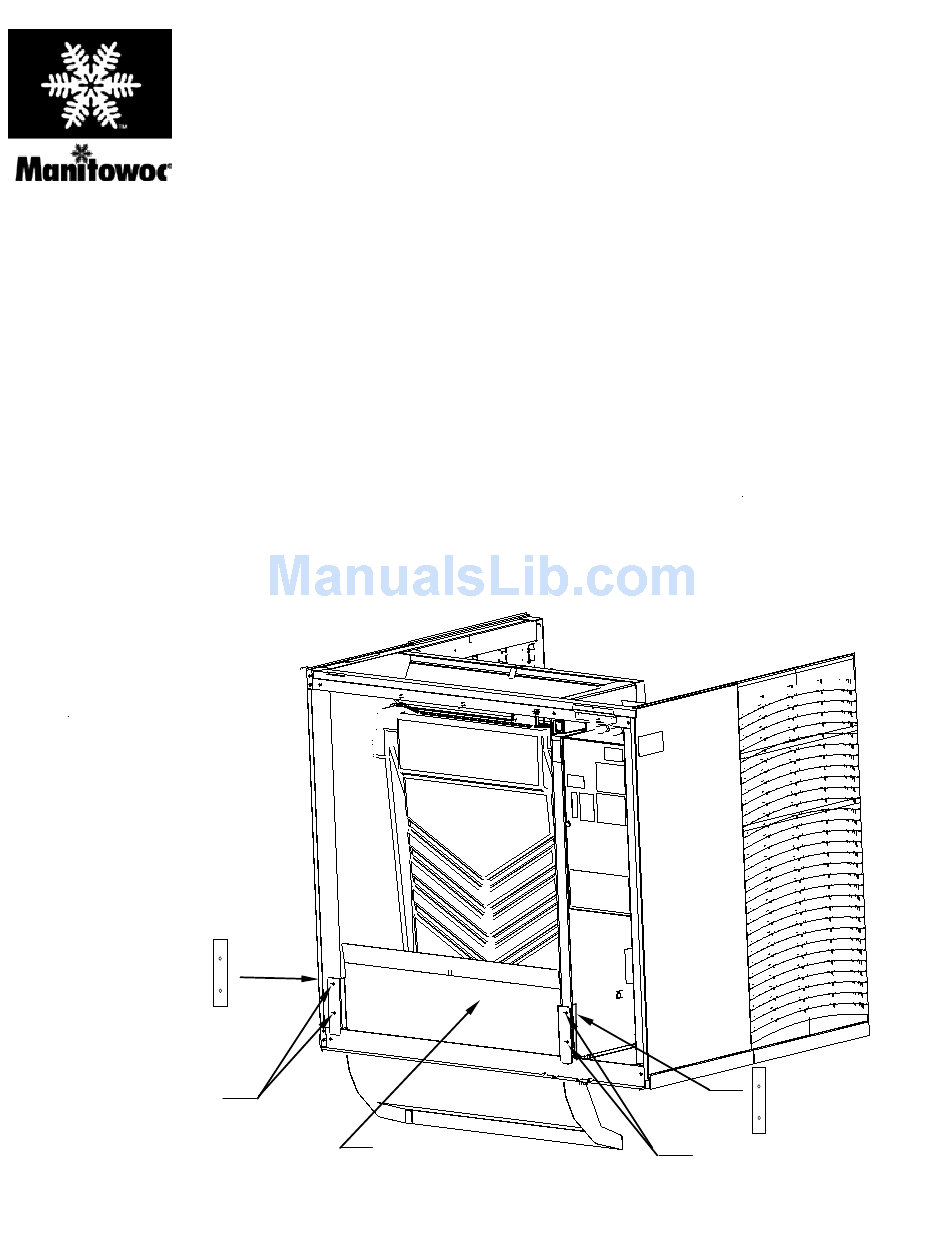

Backing Plate

to be Inserted

into Side Pocket

of Bulkhead

Screws

K00347 ICE DEFLECTOR KIT

Installation Instructions

New Ice

Deflector

Backing Plate to be

Inserted into Side

Pocket of Bulkhead

Screws
