Manitowoc K00344 Installation Instructions

1. Water filter bin bracket can be used to mount all configurations of the Arctic Pure water filter assemblies on either side or back of
any Manitowoc ice bin.
2. Remove foam tape from area where bracket is to be mounted, hang bracket, and install foam tape, provided with kit, over top of
bracket. Locate ice machine, per installation instructions.
3. Using screws provided, fasten water filter assembly to bracket.
4. Using two grommets, insert into holes in bracket.
AR-10000/20000 Water Filter
AR-10000/20000 Water Filter
Manitowoc Ice, Inc.
th
2110 South 26 Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA
Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879
Web Site - www.manitowocice.com
K00344 WATER FILTER BIN BRACKET
Installation Instructions

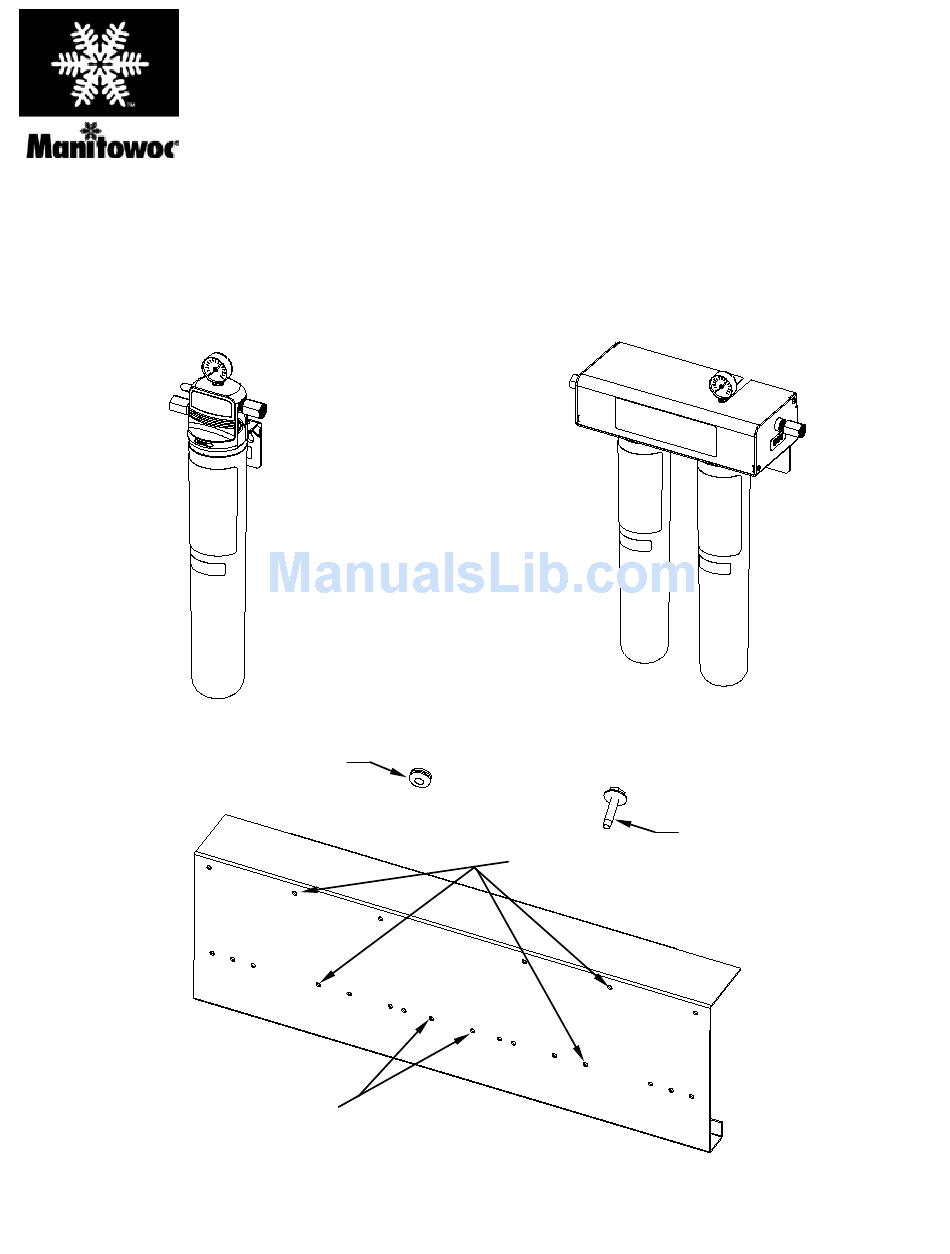

Grommet

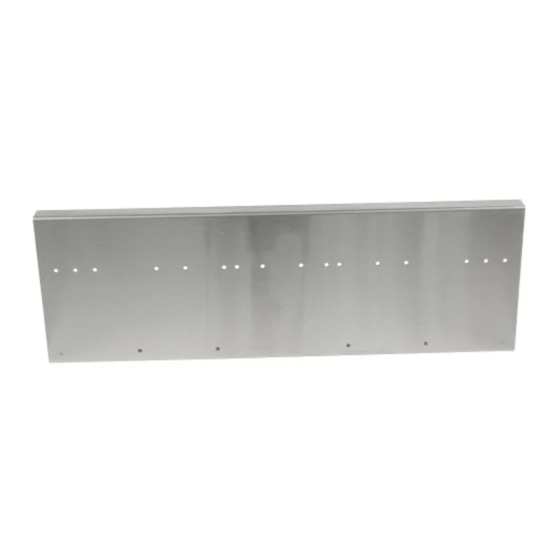

K00344001 Water Filter Bin Bracket
AR-40000 Water
Screw
AR-40000 Water Filter
8014663
Sheet 1 of 2
07/02/03
