Manitowoc IB-0620 Installation Instructions

ON A CORNELIUS ABS OR ED150 ICE DISPENSER

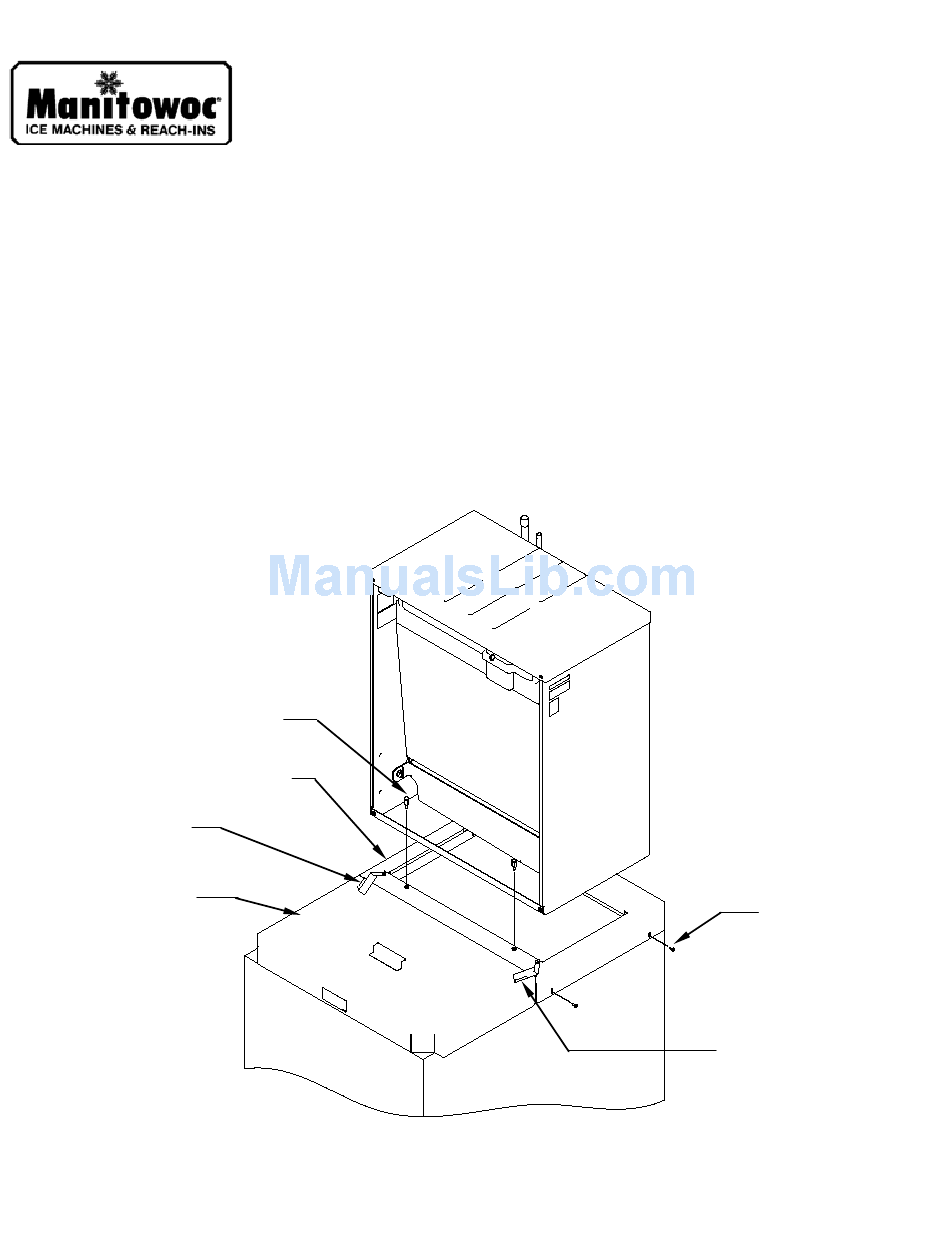

1. Set adapter on top of the dispenser. Be sure to position the adapter with the backside flange tight to the dispenser.
2. Using the slotted holes in the adapter as a template, drill four (4) 9/64" diameter holes at the bottom of the slots.
NOTE: Do not drill deeper than 1/4" past the sheet metal. Use a drill stop!
3. Fasten adapter to dispenser using the four (4) #8 screws supplied with the adapter kit.
4. Set the ice machine on top of the adapter. Align holes in ice machine front angle with the rivnuts on the adapter.
5. Secure the ice machine to the adapter with two (2) #8-32 thumbscrews supplied with the ice machine.
6. Set the front bin cover onto the dispenser. The back flange of the bin cover will latch onto the adapter.
7. Rotate retaining arms into position, as shown for normal ice machine operation.
LH Retaining Arm
Bin Cover
Manitowoc Ice, Inc.
2110 South 26 Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA
IB-0620/0820/1020
Installation Instructions
#8-32 Thumbscrew
2 Places
Adapter
K00177
Cornelius ABS or ED150
Dispenser
#8 Screw
4 Places
RH Retaining Arm
