On a cornelius 44.38” wide ice dispenser (enduro 300)

Advertisement

ON A CORNELIUS 44.38" WIDE ICE DISPENSER (ENDURO 300)
1.
Set adapter on top of the dispenser. Be sure to position the adapter with the backside flange tight to the dispenser.
2.

Install bracket under adapter and align front edge.

3.
Using the slotted holes in the adapter as a template, drill four (4) 9/64" diameter holes at the bottom of the slots.
NOTE: Do not drill deeper than 1/4" past the sheet metal. Use a drill stop!
4.
Fasten adapter to dispenser using the four (4) #8 screws supplied with the adapter kit.
5.
Set the ice machine on top of the adapter. Align holes in ice machine front angle with the rivnuts on the adapter.
6.
Secure the ice machine to the adapter with two (2) #8-32 thumbscrews supplied with the ice machine.
7.
Set the front bin covers onto the dispenser. Set the left side cover down first and then the right side cover. The
covers will latch together at the center seam and also to the adapter along the back flange of the covers.
8.
Rotate retaining arms into position, as shown for normal ice machine operation.

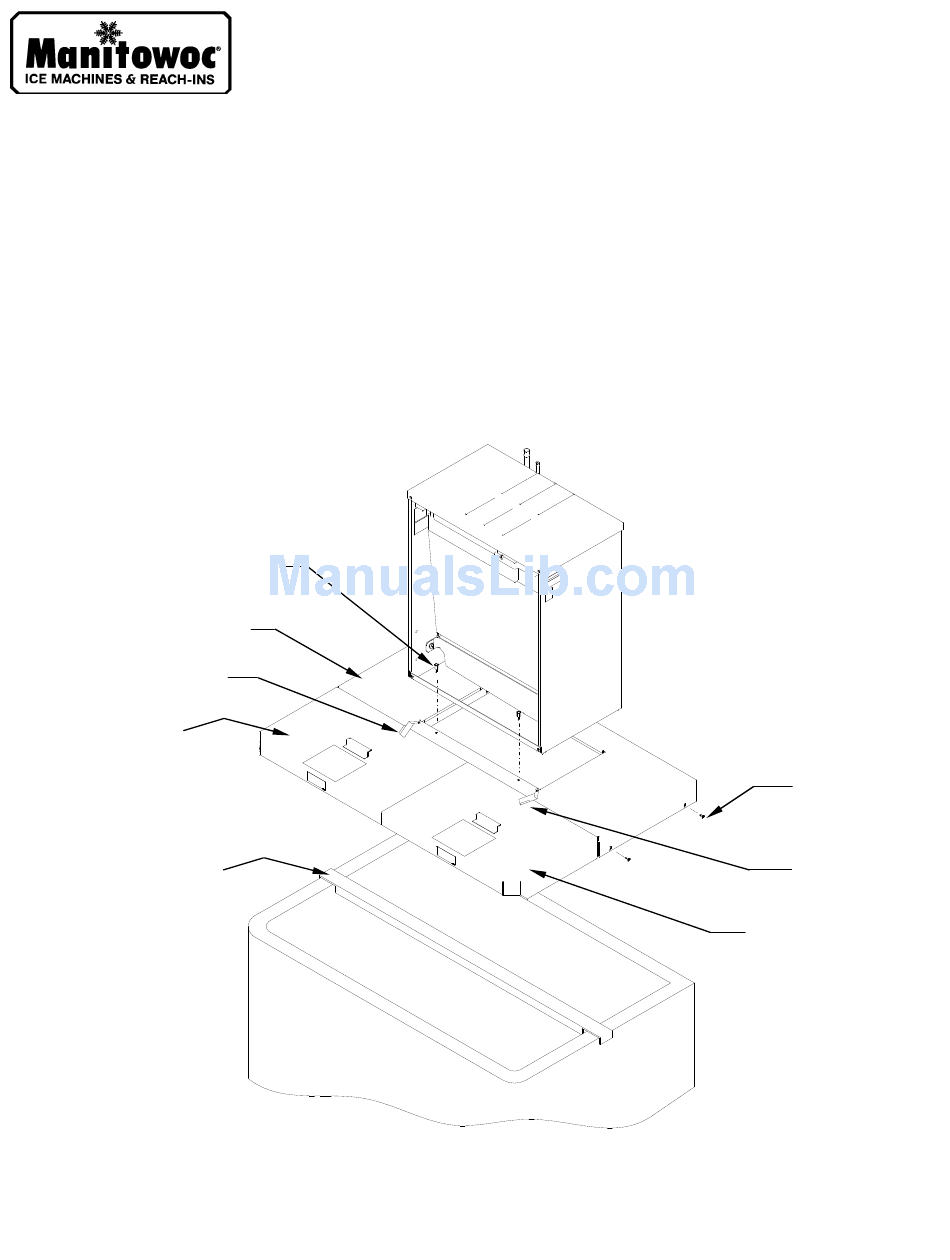

#8-32 Thumbscrew
Two (2) Places
Adapter
LH Retaining Arm
Left Bin
Cover
Bracket
Manitowoc Ice, Inc.
2110 South 26 Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA
Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879
Web Site - www.manitowocice.com
K00180
IB-0620/0820/1020
Installation Instructions
#8 Screw
4 Places
RH Retaining
Arm
Right Bin
Cover
8005913
Rev. 04/12/02
