ON A CORNELIUS 24.50" WIDE ICE DISPENSER (ENDURO 175)

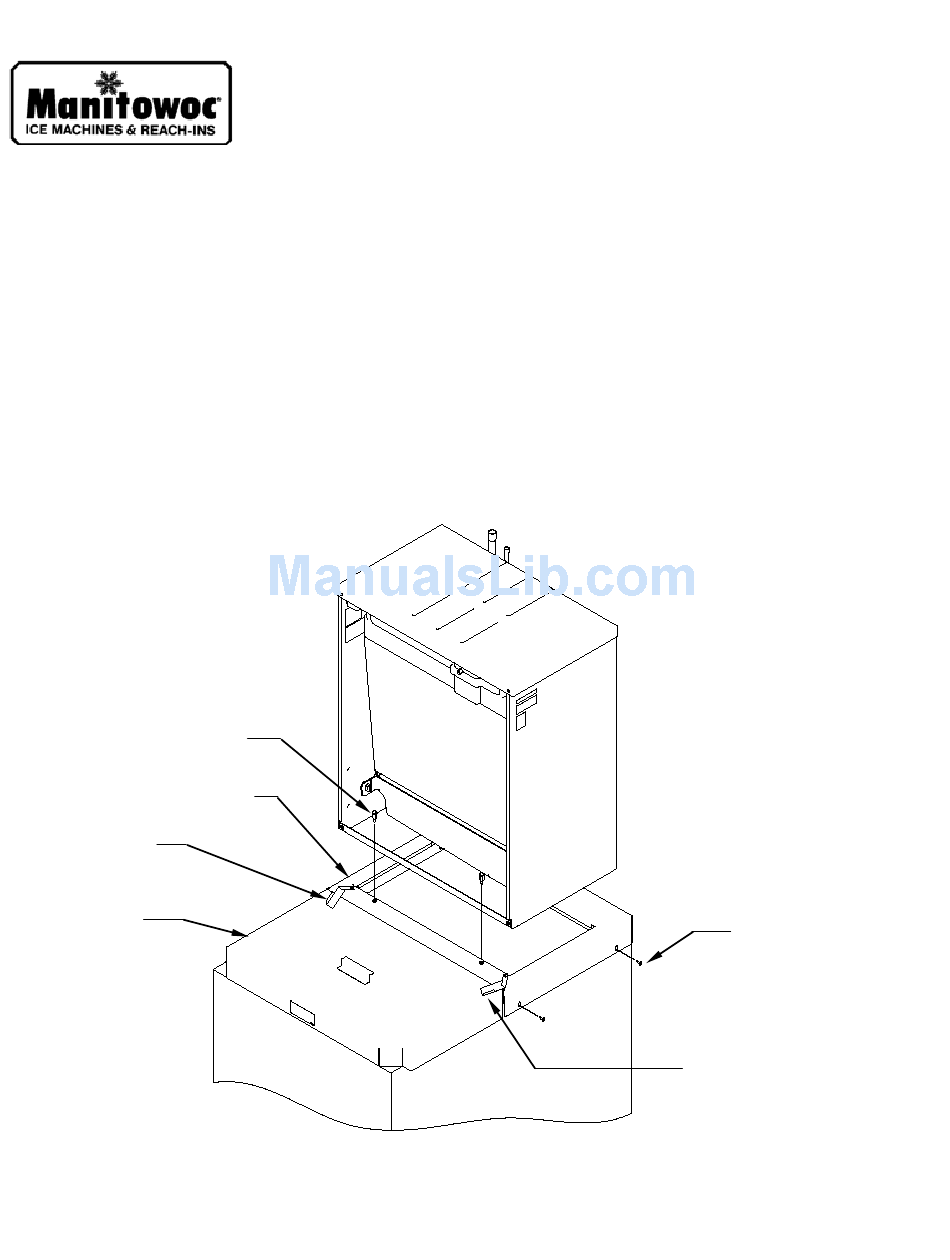

1. Set adapter on top of the dispenser. Be sure to position the adapter with the backside flange tight to the dispenser.
2. Using the slotted holes in the adapter as a template, drill four (4) 9/64" diameter holes at the bottom of the slots.
NOTE: Do not drill deeper than 1/4" past the sheet metal. Use a drill stop!
3. Fasten adapter to dispenser using the four (4) #8 screws supplied with the adapter kit.
4. Set the ice machine on top of the adapter. Align holes in ice machine front angle with the rivnuts on the adapter.
5. Secure the ice machine to the adapter with two (2) #8-32 thumbscrews supplied with the ice machine.
6. Set the front bin cover onto the dispenser. The back flange of the bin cover will latch onto the adapter.
7. Rotate retaining arms into position, as shown for normal ice machine operation.
#8-32 Thumbscrew
2 Places
LH Retaining Arm
Bin Cover
Manitowoc Ice, Inc.
IB0620/0820/1020
Installation Instructions
Adapter
K00178
Cornelius ED175 Dispenser
#8 Screw
4 Places
RH Retaining Arm
